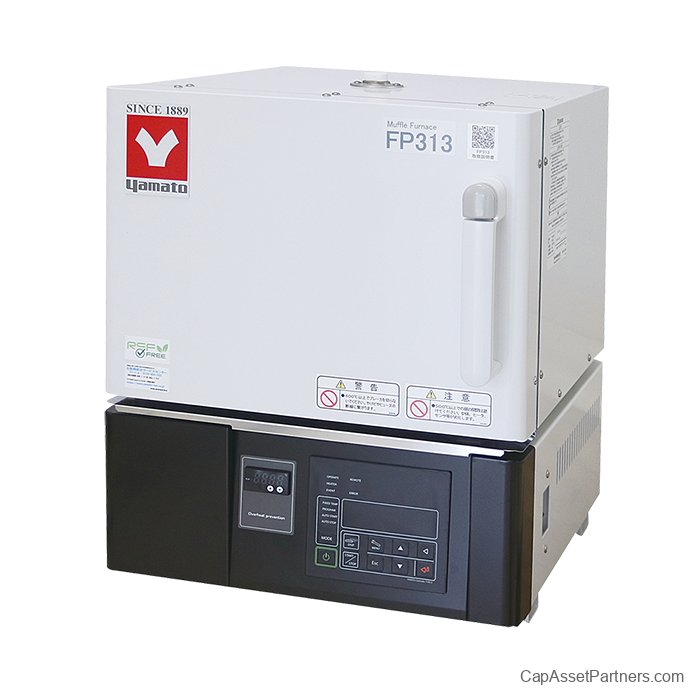

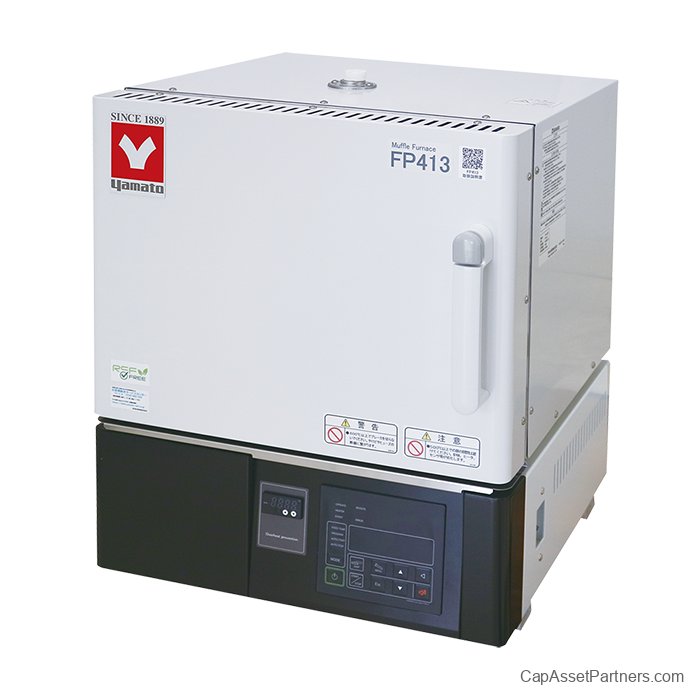

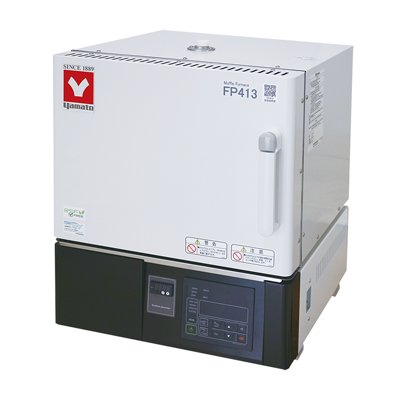

High Performance Muffle Furnaces
Discover the cutting-edge technology of High Performance Programmable Muffle Furnaces designed for precision, safety, and efficient operation in high-temperature applications. These furnaces are ideal for various tasks including ashing, soldering, brazing, glass fusing, heat treating, and environmental testing.
Best Features
- RCF-free chamber for safer operation.
- Temperature accuracy of ± 1.0°C ensures high precision.
- High accuracy controller provides superior operability and visibility.
- Programmable operation with a maximum of 99 steps and 99 patterns, including a repeat function.
- Excellent heat tightness achieved with a firmly sealed chamber door.
Safety Features
- Self-diagnostic functions for real-time monitoring.
- Calibration offset for precise adjustments.
- Key lock function to enhance security.
- Auto-recovery mode after power failure to prevent data loss.
- Earth leakage breaker for user safety.
- Automatic overheat prevention device to safeguard the furnace.
- Independent overheat prevention device for added security.
Operation Features
- Fixed temperature settings for reliable performance.
- Quick auto stop/start functionality for efficiency.
- Power on/operation time accumulation for comprehensive tracking.
- Built-in calendar and clock for operational convenience.
- Real-time display of power consumption, CO2 emissions, and heater operation for better energy management.
Specifications
| SKU |
Temperature Accuracy |
Controller |
| FP-103 |
±1 at 1150°C |
PID control by microprocessor |
| FP-303 |
±1 at 1150°C |
PID control by microprocessor |
| FP-313 |
±1 at 1150°C |
PID control by microprocessor |
| FP-413 |
±1 at 1150°C |
PID control by microprocessor |
Additional Information
| SKU |
Material |
Width |
Depth |
Height |
| FP-103 |
Alumina fiber and chrome-free electro-galvanized steel plate |
376 mm |
404 mm |
515 mm |
| FP-303 |
Alumina fiber and chrome-free electro-galvanized steel plate |
446 mm |
504 mm |
565 mm |
| FP-313 |
Alumina fiber and chrome-free electro-galvanized steel plate |
446 mm |
504 mm |
565 mm |
| FP-413 |
Alumina fiber and chrome-free electro-galvanized steel plate |
506 mm |
504 mm |
625 mm |
Please Note: All models are not equipped with a power plug except for FP-103. Models without a power plug include a rounded terminal for M4. For further details, please consult the downloads section or product documentation.
