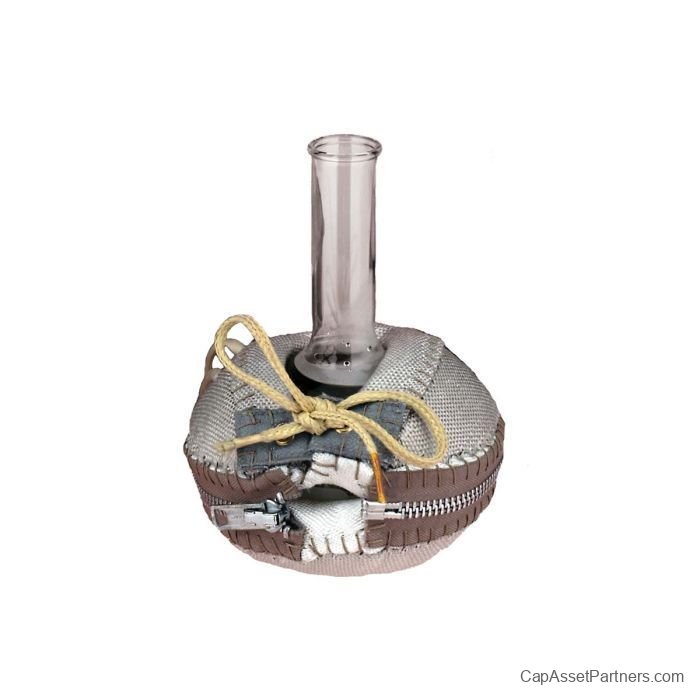

HM Spherical Heating Mantles
The HM Spherical Heating Mantles are engineered for optimal performance, offering uniform and low-watt heat distribution tailored for round-bottom flasks. Crafted with a robust fiberglass cloth outer shell and cutting-edge multi-stranded resistance wire, these heating mantles ensure enhanced durability and flexibility, making them an excellent alternative to traditional Bunsen Burners.
Important Safety Note: A temperature controller is required for the safe operation of this product.
Key Features
- Full-coverage zippered mantle for secure fitting.
- Capable of reaching temperatures up to 842°F (450°C).
- Available voltage options:
- 120 VAC includes a 3 in (76 mm) lead wire with NEMA L1-15R connector and a 4 ft (1.2 m) power cord.
- 240 VAC includes a 3 in (76 mm) lead wire without a plug.
- Designed to accommodate 1, 2, or 3 neck flasks.
- Effortlessly installs on basket ring stands for convenience.
- Exceptional suitability for high-temperature applications.
- Utilizes multi-stranded resistance wire for increased durability, featuring a knit and braided design for uniform heat coverage.
Specifications
| SKU |
Max Temperature |
| HM0500-SS1 |
842°F (450°C) |
| HM1000-SS1 |
842°F (450°C) |
| HM2000-SS1 |
842°F (450°C) |
| HM0500-SS2 |
842°F (450°C) |
| HM1000-SS2 |
842°F (450°C) |
| HM2000-SS2 |
842°F (450°C) |
Additional Information
| SKU |
Certification |
Material |
Plug Type |
Lead Length |
| HM0500-SS1 |
REACH, RoHS, CSA, IP20 |
Fiberglass Outer Shell |
NEMA 1-15P |
3 in (76 mm) |
| HM1000-SS1 |
REACH, RoHS, CSA, IP20 |
Fiberglass Outer Shell |
NEMA 1-15P |
3 in (76 mm) |
| HM2000-SS1 |
REACH, RoHS, CSA, IP20 |
Fiberglass Outer Shell |
NEMA 1-15P |
3 in (76 mm) |
| HM0500-SS2 |
REACH, RoHS, CSA, IP20 |
Fiberglass Outer Shell |
NEMA 1-15P |
3 in (76 mm) |
| HM1000-SS2 |
REACH, RoHS, CSA, IP20 |
Fiberglass Outer Shell |
NEMA 1-15P |
3 in (76 mm) |
| HM2000-SS2 |
REACH, RoHS, CSA, IP20 |
Fiberglass Outer Shell |
NEMA 1-15P |
3 in (76 mm) |
