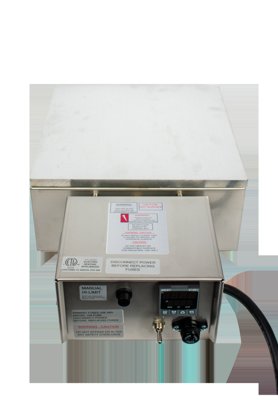

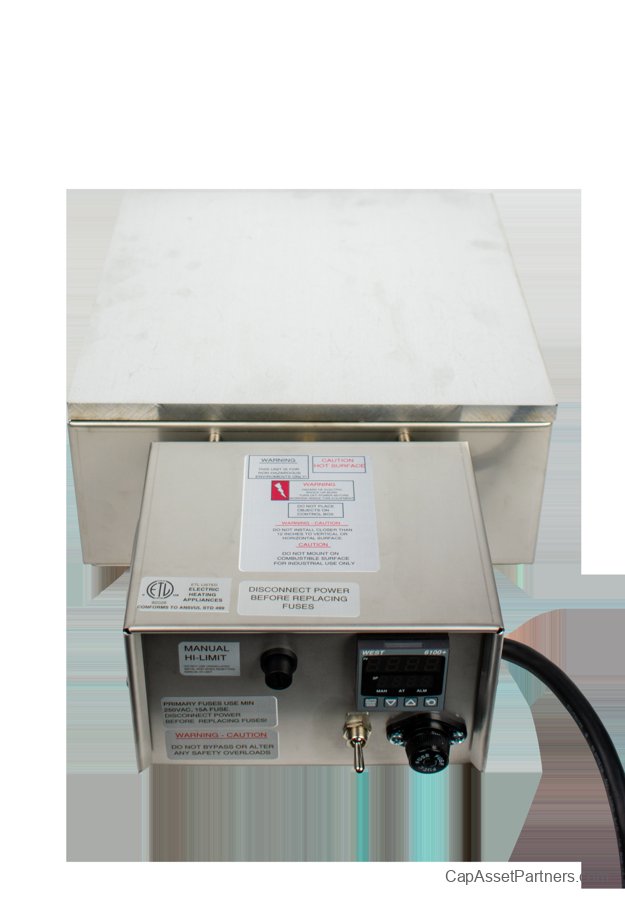

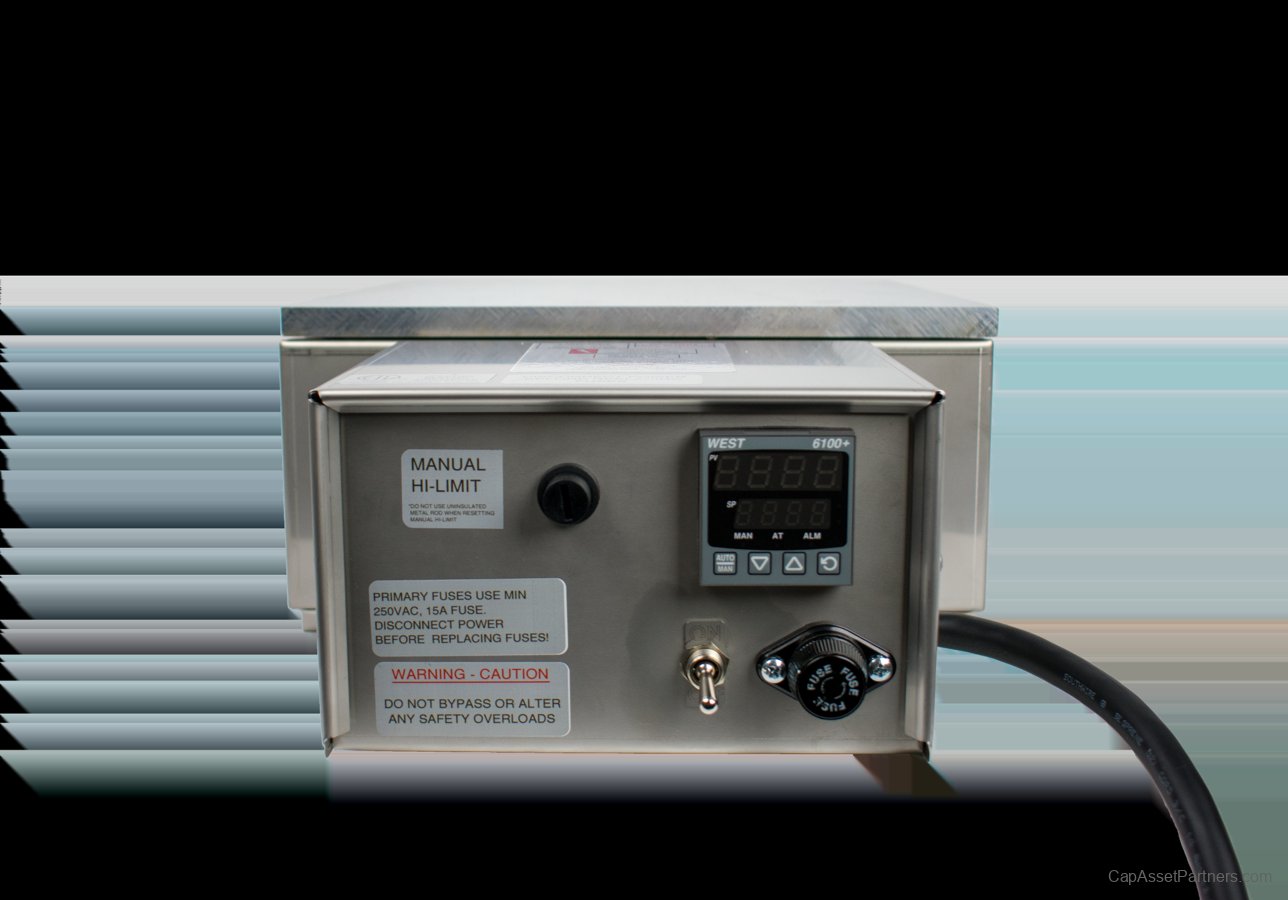

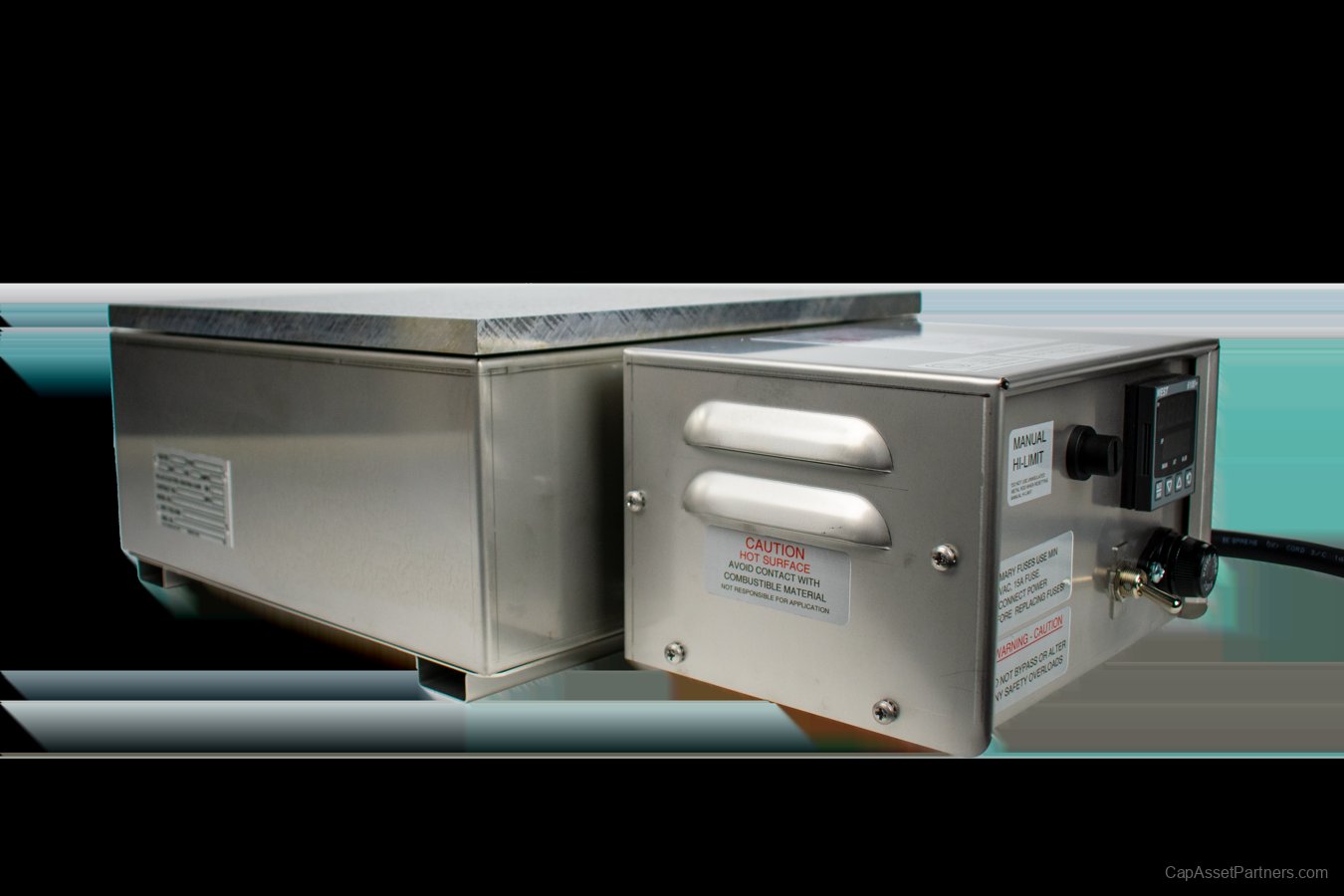

HPST Standard Industrial Digital Hot Plates
The HPST Standard Industrial Digital Hot Plates are expertly crafted for applications that require precise heating under controlled temperature conditions. Engineered for both pre-heating and reflow tasks, these hot plates excel in high-precision environments that surpass the capabilities of traditional analog laboratory hot plates. Built to withstand heavy loads and industrial conditions, they are ideal for diverse applications such as lithography, cosmetic heating, and semiconductor manufacturing.
Key Features:
- Constructed from durable 304 Stainless Steel for easy cleaning and compliance with sanitary codes.
- Temperature accuracy of ±10°F ensures reliable performance.
- 1/2" aluminum top plates deliver uniform heat transfer, enhancing efficiency.
- Digital readout controller provides constant process temperature visibility.
- Intuitive button interface for setting and adjusting the temperature effortlessly.
- Visible pilot light to indicate when the power is ON.
- Indicator light signals when heating elements are active.
Included Components:
- Replaceable stainless steel magnesium filled flat oval heating elements for longevity.
- Operating thermostat with a range of 100°F-550°F.
- Robust stainless steel case for enhanced durability.
- 6-foot heavy-duty cord for flexible placement.
- Standard plug for easy connection.
Certifications:
- ANSI ETL UL/499 certified.
Application Areas:
- Controlled heating surface for various procedures.
- Soldering operations preparation.
- Semiconductor production activities.
Important Note:
- Heat-up times may vary based on the load and wattage.
- No liability is assumed for loss, damage, or injury due to high temperatures produced.
- Items are made to order and are non-returnable once the package is opened.
Alternative construction styles, including different stainless steel tops, additional sizes, and varying top thicknesses, are available upon request. For more information, please get in touch with us directly.
Specifications:
| SKU |
Shape |
Material |
Temperature Accuracy |
Temperature Uniformity |
Display |
| HPST6X12-11.0-1 |
Rectangle |
Stainless Steel, Aluminum |
±10°F |
0-4% of setpoint |
Digital |
| HPST36X36-28.0-3 |
Square |
Stainless Steel, Aluminum |
±10°F |
0-6% of setpoint |
Digital |
| HPST24X24-26.0-1 |
Square |
Stainless Steel, Aluminum |
±10°F |
0-6% of setpoint |
Digital |
| HPST18X24-11.5-1 |
Rectangle |
Stainless Steel, Aluminum |
±10°F |
0-5% of setpoint |
Digital |
| HPST12X24-22.0-1 |
Rectangle |
Stainless Steel, Aluminum |
±10°F |
0-5% of setpoint |
Digital |
Additional Information:
| SKU |
Dimensions |
Electrical Information |
| HPST6X12-11.0-1 |
20 in x 8.5 in x 5.875 in |
110/120V, 1-PH, 1.0kW |
| HPST36X36-28.0-3 |
48 in x 36 in x 6.875 in |
220/240V, 3-PH, 8.0kW |
| HPST24X24-26.0-1 |
32 in x 24 in x 6.875 in |
220/240V, 1-PH, 6.0kW |
| HPST18X24-11.5-1 |
32 in x 18 in x 5.875 in |
110/120V, 1-PH, 1.5kW |
| HPST12X24-22.0-1 |
32 in x 12 in x 5.875 in |
220/240V, 1-PH, 2.0kW |
