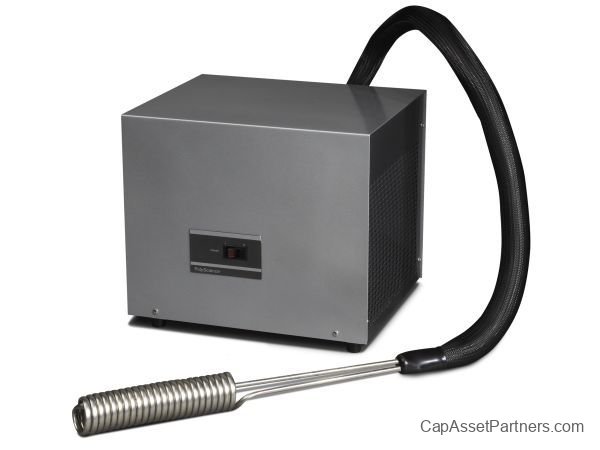

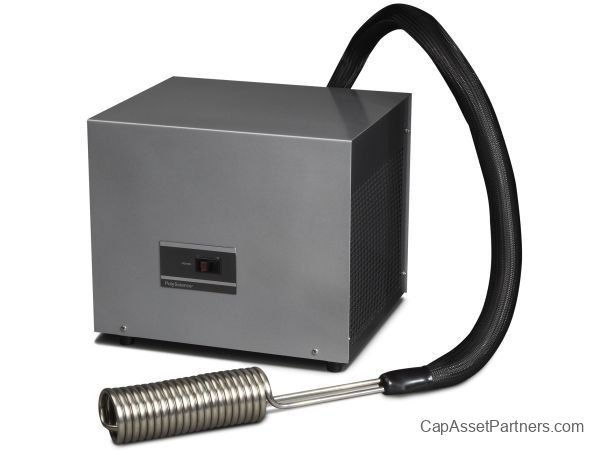

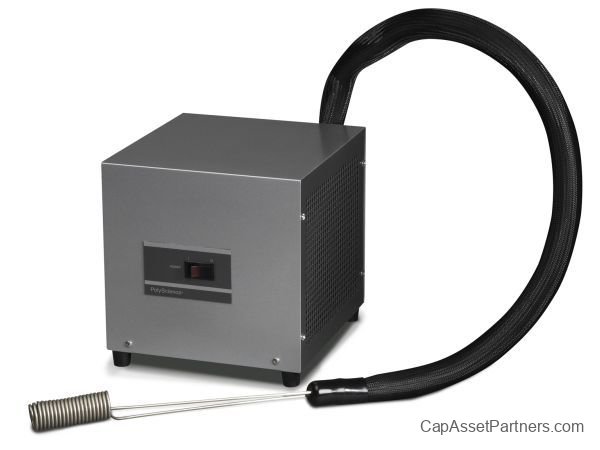

Immersion Probe Low Temperature Coolers
Unlock precision cooling with our Immersion Probe Low Temperature Coolers, engineered for optimal performance in demanding laboratory environments. These specialized coolers provide continuous cooling to temperatures as low as -100°C, making them an economical alternative to traditional methods such as dry ice or liquid nitrogen. Ideal for trapping applications, freeze drying, and the rapid cooling of small volumes of liquids, these coolers are a vital tool for labs requiring reliable low-temperature solutions.
Key Features:
- Continuous cooling capabilities to -100°C.
- Designed for maximum cooling efficiency.
- A cost-effective alternative to dry ice or liquid nitrogen.
- Excellent performance in trapping applications, freeze drying, and rapid cooling of liquids.
Specifications:
| SKU |
Cooling Capacity |
Refrigerant |
Ambient Temperature |
| P10N6A101B |
85 @ -65°C / 35 @ -80°C |
R404A & R508B |
30°C Max |
| P10N8A101B |
85 @ -65°C / 35 @ -80°C |
R404A & R508B |
30°C Max |
| P10N4A101B |
85 @ -65°C / 35 @ -80°C |
R404A & R508B |
30°C Max |
| P80NHA101B |
215 @ -60°C / 100 @ -80°C |
R404A & R508B |
30°C Max |
| P60N2A101B |
150 @ -20°C / 0 @ -60°C |
R404A & R508B |
30°C Max |
| P40N7A101B |
1004 @ 20°C / 106 @ -30°C |
R134a |
30°C Max |
| P35N5A101B |
1004 @ 20°C / 106 @ -30°C |
R134a |
30°C Max |
Additional Information:
| SKU |
Dimensions |
Diameter |
Length |
| P10N6A101B |
20.1 in x 15 in x 22.3 in |
2.8 in Hose |
6 in Hose |
| P10N8A101B |
20.1 in x 15 in x 22.3 in |
2.8 in Hose |
6 in Hose |
| P10N4A101B |
20.1 in x 15 in x 22.3 in |
2.8 in Hose |
6 in Hose |
| P80NHA101B |
20.1 in x 15 in x 22.3 in |
2.8 in Hose |
6 in Hose |
| P60N2A101B |
11 in x 10 in x 9 in |
1.5 in Hose |
4 in Hose |
| P40N7A101B |
17 in x 14 in x 14 in |
1.5 in Hose |
4 in Hose |
| P35N5A101B |
17 in x 14 in x 14 in |
1.5 in Hose |
4 in Hose |
