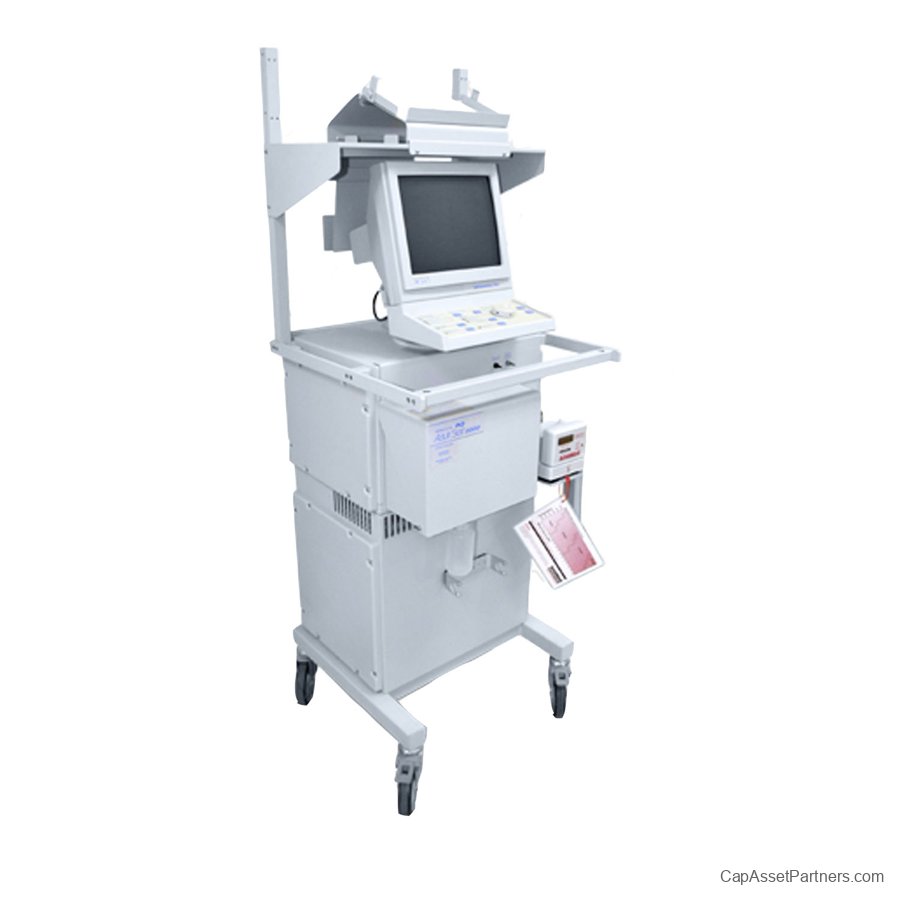

Infrasonics Adult Star 2000 Ventilator

Infrasonics Adult Star 2000 Ventilator

• Advanced Respiratory Support System

The Infrasonics Adult Star 2000 Ventilator is an essential tool for modern medical facilities, providing reliable respiratory support for adult patients. This advanced ventilator features a user-friendly graphics display combined with a powerful compressor, ensuring efficient and precise ventilation.
Designed to meet the diverse needs of both adult and pediatric patients, this fully comprehensive device is microprocessor controlled and monitored for optimal performance. The volume-cycled, pressure-limited functionality allows for adaptable ventilation strategies in various clinical settings.
One of the standout features of the Adult Star 2000 is its intuitive single knob control, which simplifies the adjustment of all ventilator settings displayed onscreen. This streamlined design enhances usability, enabling healthcare professionals to quickly tailor ventilation parameters.
Additionally, the graphic monitoring system provides real-time insights into critical metrics, including pressure, flow, and volume waveforms. This vital information empowers clinicians to make informed decisions and respond swiftly to changes in patient condition.
Elevate your respiratory care capabilities with the Infrasonics Adult Star 2000 Ventilator—an ideal solution for ensuring patient safety and comfort in any medical environment.

Infrasonics Adult Star 2000 Ventilator Specifications

Physical Weight & Dimensions

• Height: 54.5 inches (138 cm)

• Width: 22.5 inches (57 cm)

• Depth: 22.5 inches (57 cm)

• Weight: 185 lbs (84 kg)

Modes of Ventilation

• Ventilation Type: Volume cycled (pressure control, time cycled or I:E cycled optional)

• Modes: Assist/control, SIMV, CPAP, and apnea ventilation

Controls & Displays

• Tidal Volume (Compliance Compensated): 100 to 2500 ml (50 to 2500 ml - pediatric option)

• Machine Rate / Apnea Rate: 0.5 to 80 BPM (0.5 to 120 BPM - pediatric option)

• Peak Flow (BTPS Compensated): 10 to 120 LPM volume cycled, 10 to 160 LPM spontaneous, PPS and PCV

• Oxygen Percent: 21 to 100% (integral blender, educates button provides 100% for 3 minutes)

• PEEP / CPAP: 0 to 30 cmH2O (50 cmH2O optional)

• Sensitivity: -0.5 to -20 cmH2O

• Inspiratory Pause: 0 to 2 seconds

• Waveform: Square, sinusoidal, accelerating or decelerating

• Positive Pressure Support: 0 to 70 cmH2O (above PEEP)

• Sigh Volume: 100 to 2500 ml

• Sigh Rate: 0 to 20 sph, multiple of 1 to 3

• Manual Breath: Single breath

• Manual Sigh: Single Sigh

Alarms and Indicators

• High Inspiratory Pressure Alarm: 10 to 120 cmH2O

• Low Inspiratory Pressure Alarm: 3 to 60 cmH2O

• High and Low Mechanical Volume Alarm: 0 to 2500 ml

• Low Spontaneous Volume Alarm: 0 to 2500 ml

• Low Minute Volume Alarm: 0 to 60 LPM

• Low PEEP / CPAP Alarm: 0 to 30 cmH2O (50 cmH2O optional)

• High Respiratory Rate Alarm: 0 to 90 BPM (0-130 BPM - pediatric option)

• Apnea Alarm: 5 to 60 seconds

• Low Pressure Oxygen and Air Alarms: <26 psig ±3 psig

• Low Internal Battery Alarm: Last 4 minutes of battery operation

• High PEEP / CPAP: 10 cmH2O >PEEP/CPAP for 3 seconds, 6 to 10 cmH2O >PEEP/CPAP for 5 seconds

• Airway Leak Alarm: 6 LPM

• Insufficient Inspiration Alarm: > 240 milliseconds

• Insufficient Expiratory Alarm: > 200 milliseconds

• Exhalation Leak: Exhaled flow > 4 LPM and > 10% of delivered flow

• Obstructed Tube: Tube or prox pressure line occluded

• Alarm Silence: 60 seconds

Monitored Parameters

• Exhaled Tidal Volume: 0 to 2500 ml

• Minute Volume: 0 to 99.9 LPM

• Spontaneous Minute Volume: 0 to 99.9 LPM

• Breath Type: Assisted, controlled, spontaneous or sigh

• Peak and Mean Airway Pressures: 0 to 120 cmH2O

• PEEP / CPAP Pressure: 0 to 30 cmH2O (50 cmH2O optional)

• Plateau Pressure: 0 to 120 cmH2O

• Breath Rate: 0 to 120 BPM

• I:E Ratio: 99.9:1 to 1:99.9

• Inspiratory Time: 0 to 99.9 seconds

• Proximal Airway Pressure Bar Graph: -20 to 120 cmH2O

• Graphic Monitor (Waveform Display):

• Pressure: -20 to 120 cmH2O

• Flow: -200 to 160 LPM

• Volume: -100 to 3000 ml

• Time: 6-12-24 seconds freeze

Exhalation Isolation System

• Heated Exhalation Bacteria Filter: Filtration ability 99.99% of particles > 0.3 microns

General

• Integral Nebulizer: Provides intermittent 8 LPM @ 10 psig nominal output. Automatically turns off after 30 minutes

• Integral Compressor: Low noise, 60 dB

• Alarm Loudness: Adjustable, 64 to 82 dB

• Analog Pressure Output: 10 mV/cmH2O

Electrical Power

• Nominal: 115 VAC, 60 Hz:

• Range: 108 to 132 VAC, 60 Hz ±3 Hz

• Power Consumption: Ventilator 1.5 amp, ventilator and nebulizer 3.0 amp, ventilator, nebulizer and compressor 7.0 amp

• Nominal: 230 VAC, 50/60 Hz:

• Range: 207 to 242 VAC, 50/60 Hz ±3 Hz

• Power Consumption: Ventilator 1.0 amp, ventilator and nebulizer 1.7 amp, ventilator nebulizer and compressor 3.2 amp

• Nominal: 100 VAC, 50/60 Hz:

• Range: 90 to 105 VAC, 50/60 Hz ±2 Hz

• Power Consumption: Ventilator 1.7 amp, ventilator and nebulizer 3.2 amp, ventilator, nebulizer and compressor 7.5 amp

Pneumatic Power

• Heated Exhalation Bacteria Filter: Filtration ability 99.99% of particles > 0.3 microns
