Invivo MDE Prism

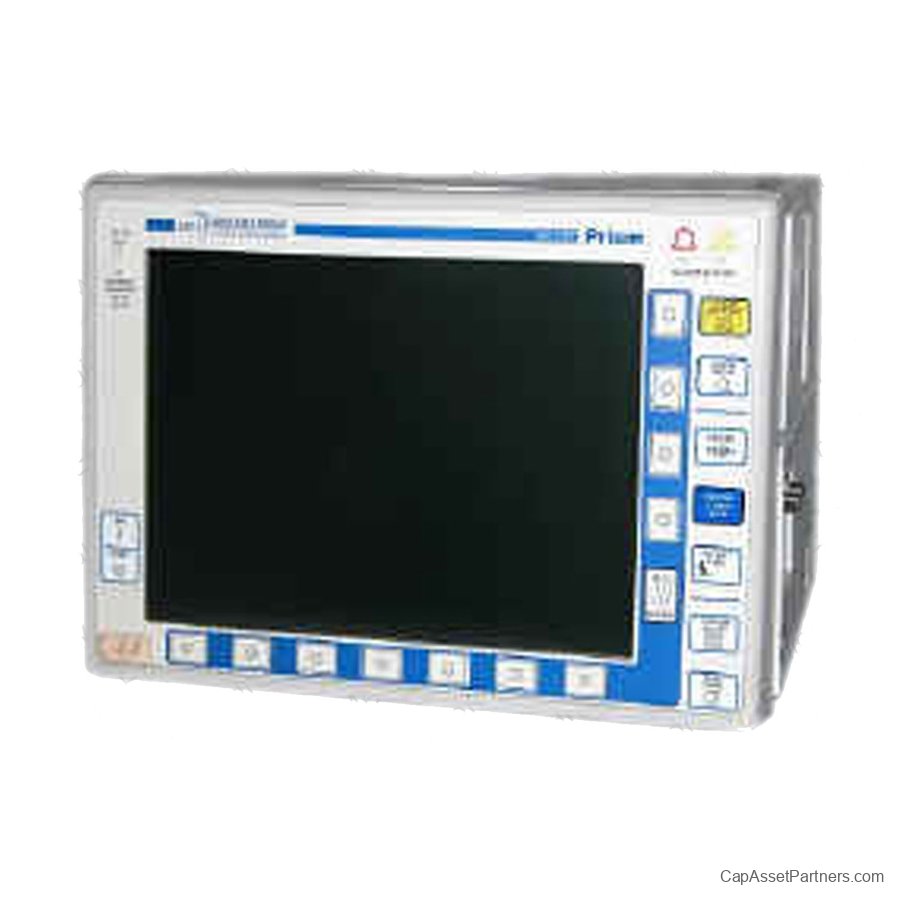

MDE Escort Prism SE Model 20414-103 Patient Vital Signs Monitor

Introducing the MDE Escort Prism SE Model 20414-103, a sophisticated patient vital signs monitor designed for flexibility and precision in monitoring essential health metrics. This advanced device features built-in capabilities to track ECG/respiration, Nellcor SPO2, non-invasive blood pressure (NIBP), and temperature, including Turbo-temp functionality, ensuring comprehensive patient assessment.

With its large, high-resolution color screen, the MDE Escort Prism SE offers easy readability and can be adjusted for optimal viewing angles, making it ideal for both clinical and transport settings. This portable monitor is equipped with a reliable battery, granting the freedom to monitor patients in various environments.

Additionally, the device supports wireless communication with a 900 MHz transceiver (Model 20011V), enabling integration with the Vision Central Station system for seamless data management and monitoring. The durable design and user-friendly front panel provide essential features like Freeze, Record, Alarm Suspend, and Alarm Setup, making it an essential tool for any healthcare professional.

With a display type of CRT non-fade P31 and a diagonal size of 6 inches (15.2 cm), the MDE Escort Prism SE showcases a user-friendly interface with three trace capabilities and an extended trace length of 3.2 seconds at 25 mm/sec, ensuring accurate and efficient vital signs monitoring.

Elevate your patient care with the MDE Escort Prism SE, engineered for accuracy, portability, and convenience in any medical setting.

Invivo MDE Prism Specifications

ECG

• Range: 10 to 300 BPM (± 2% or ± 2 BPM)

• Sweep Speed: 12.5, 25, 50 mm/sec selectable (0.49, 0.98, 1.96 in/sec)

• High Alarm Limit Range:

• Adult: 50 to 250 BPM in 5 BPM steps

• Pediatric/Neonatal: 60 to 255 BPM in 5 BPM steps

• Low Alarm Limit Range:

• Adult: 20 to 150 BPM in 5 BPM steps

• Pediatric/Neonatal: 20 to 150 BPM in 5 BPM steps

• Bandwidth:

• Monitor: 0.5 to 40 Hz

• Diagnostic: 0.05 to 100 Hz

• Leads: 3 lead (I, II, or III selectable), 5 lead dual vector (I, II, III, V selectable)

• Sensitivity: 0.25 to 3 mV/cm selectable (12 levels)

• Pacer Rejection: 0.1 to 2 msec; 2 to 700 mV

• Heart Rate Source: ECG, Pleth, IBP

• Defibrillation Tolerance: 400 joules with 50 ohm series lead impedance

• Connector: Standard 6 pin MS

• Isolation: Full electrical isolation

Respiration

• Range: 4 to 200 BPM (± 2% or ± 2 BPM)

• Lead: RA to LA

• Sensitivity: 0.25 to 3 ohm/cm selectable

• High Alarm Limit Range:

• Adult: 30 to 150, OFF

• Pediatric/Neonatal: 50 to 200, OFF

• Low Alarm Limit Range:

• Adult: 5 to 50, OFF

• Pediatric/Neonatal: 5 to 80, OFF

• Apnea Delay Alarms: 10, 15, 20, 30, 40 seconds, and OFF (Adult); 10, 15, 20 seconds, and OFF (Pediatric/Neonatal)

• Sweep Speed: 1.56, 6.25, 12.5, 25 mm/sec selectable (0.06, 0.25, 0.49, 0.98 in/sec)

• Respiration Rate Source: ETCO2 or Leads

• CVA Rejection: Rejects most cardiovascular coincidence.
