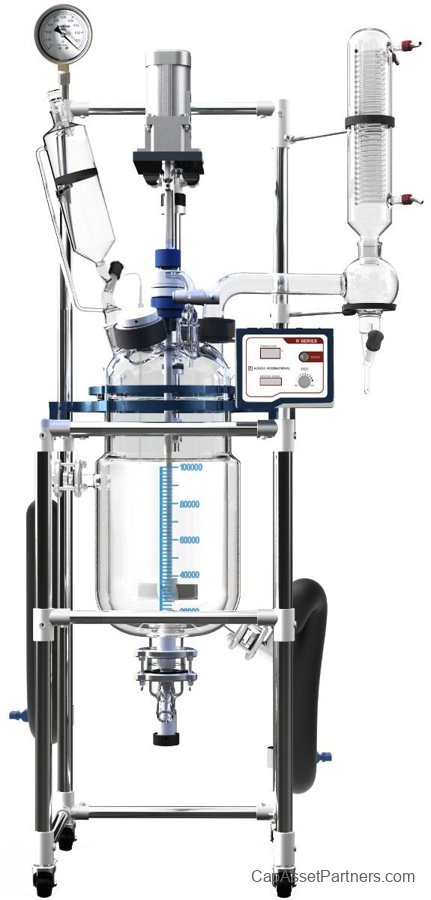

Advanced Jacketed Glass Reactors for Precise Chemical Reactions
Engineered for optimal performance in synthetic reactions, our Jacketed Glass Reactors ensure precise control over temperature and vacuum environments. Ideal for various material types, these reactors facilitate consistent results with adjustable stirring speeds and a constant pressure feeding funnel that allows for uniform material addition.
Key Specifications
- Drain Valve: Flush seal design with a large opening and flat flange clamp for efficient draining.
- Agitator: Anchor design crafted from type-304 stainless steel, reinforced with PTFE for superior durability.
- Funnel: A pressure-equalizing funnel designed for optimal material feeding.
- Vacuum Gauge: Mechanical for accurate monitoring.
- Vacuum Sealing: Available in both glass and PTFE for tailored requirements.
Exceptional Features
- Includes a FREE high-quality thermo insulation jacket (valued at $399) with open/close viewing window and adjustable drawstrings, prolonging chiller life and enabling lower temperature operations.
- The dual jacketed model allows vacuum draw from the outer jacket, enhancing temperature control and preventing frost formation around the vessel.
- Solvent-resistant PTFE seals ensure long-lasting use and reliability.
- Handmade from food-grade high borosilicate glass, offering heat, cold, and corrosion resistance.
- Adjustable stirring rates provide flexibility in operation, accommodating both high torque and high-speed requirements.
- Patented PTFE stirring rod bearing technology ensures quiet and dependable operation.
- Optional multi-layer stirring blades are available for enhanced reaction optimization.
- Wide temperature range capability from -110°F to 400°F enables versatility in applications.
- Large condenser cooling surface for superior condensation efficiency.
- Stainless steel reinforced PTFE stirrer with anchored agitator is designed for high-viscosity material processes.
- Digital speed and temperature displays ensure easy operation oversight.
- Heavy-duty stainless steel supporting framework with lockable casters for easy mobility and stability, with pre-assembled shipping of both support and glass vessel.
- Lifetime support with on-demand parts and service available in the USA.
Available Models and Specifications
| SKU |
Electrical Information |
Dimensions (WxDxH) |
Cooling/Heating Jacket Capacity |
Capacity |
| R50 |
110V, 60Hz, 1-Phase, 140W |
26 x 33 x 85 in. |
4.2 gallons (16L) |
50 L |
| R100 |
110V, 60Hz, 1-Phase, 250W |
28 x 42 x 95 in. |
8 gallons (30L) |
100 L |
| R20 |
110V, 60Hz, 1-Phase, 90W |
20 x 27 x 80 in. |
1.6 gallons (6L) |
20 L |
| R10 |
110V, 60Hz, 1-Phase, 90W |
18 x 26 x 78 in. |
0.8 gallon (3L) |
10 L |
Additional Technical Information
| SKU |
Controller |
Drain Port Clearance |
Material |
Max Pressure |
Temperature Range |
Vacuum Level |
| R50 |
Digital controller with variable frequency drive / Rotation speed: 50 to 500 rpm |
12.5 in. |
Borosilicate Glass 3.3 |
4.4 psi or 0.03 Mpa |
-79°C to 204°C (-110°F to 400°F) |
< 700 torrs |
| R100 |
Digital controller with variable frequency drive / Rotation speed: 50 to 500 rpm |
13.5 in. |
Borosilicate Glass 3.3 |
4.4 psi or 0.03 Mpa |
-79°C to 204°C (-110°F to 400°F) |
< 700 torrs |
| R20 |
Digital controller with variable frequency drive / Rotation speed: 50 to 500 rpm |
13 in. |
Borosilicate Glass 3.3 |
4.4 psi or 0.03 Mpa |
-79°C to 204°C (-110°F to 400°F) |
< 700 torrs |
| R10 |
Digital controller with variable frequency drive / Rotation speed: 50 to 500 rpm |
15 in. |
Borosilicate Glass 3.3 |
4.4 psi or 0.03 Mpa |
-79°C to 204°C (-110°F to 400°F) |
< 700 torrs |
