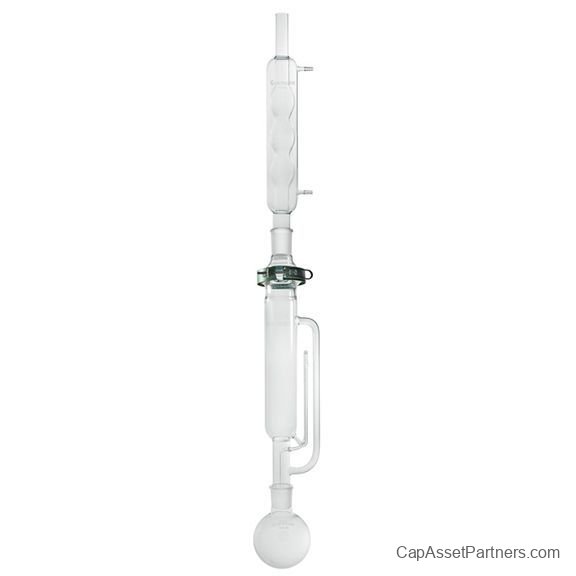

Jumbo Complete Soxhlet Extraction Apparatus
The Jumbo Complete Soxhlet Extraction Apparatus is an essential tool for efficient and reliable extraction processes in laboratory settings. Designed with precision, this apparatus incorporates a Duran flange at the top of the extractor, enhancing its usability and effectiveness.
This state-of-the-art extraction system features a specially designed flange that includes a groove on the flat portion of the mating surface. This design allows for the easy incorporation of a PTFE-covered silicone o-ring, ensuring a grease-free assembly that boosts performance and reduces contamination risks. The connection between the condenser and extractor boasts a top outer joint and a Duran flange, which firmly attach to the extractor body using a CG-141 stainless steel clamp.
Key Features:
- Duran Flange: Ensures integrity and efficiency in the extraction process.
- CG-141 Stainless Steel Clamp: Provides a secure connection between components.
- Customizable Options: PTFE sleeves and heating mantles can be ordered separately to suit individual laboratory needs.
Specifications:
| SKU |
Inner Diameter |
Joint Size |
Length |
For Use With |
| CG-1373-01 |
Extractor: 68 mm |
Extractor Lower: 45/50 |
Condenser: 350 mm |
Thimble: 58 x 170 |
| CG-1373-02 |
Extractor: 95 mm |
Extractor Lower: 45/50 |
Condenser: 400 mm |
Thimble: 81 x 230 |
| CG-1373-03 |
Extractor: 140 mm |
Extractor Lower: 55/50 |
Condenser: 750 mm |
Thimble: 125 x 310 |
This comprehensive apparatus includes a condenser, extractor, round bottom flask, adapter, PTFE-covered o-ring, and clamp—everything you need for successful Soxhlet extraction. Elevate your laboratory capabilities with the Jumbo Complete Soxhlet Extraction Apparatus today!
