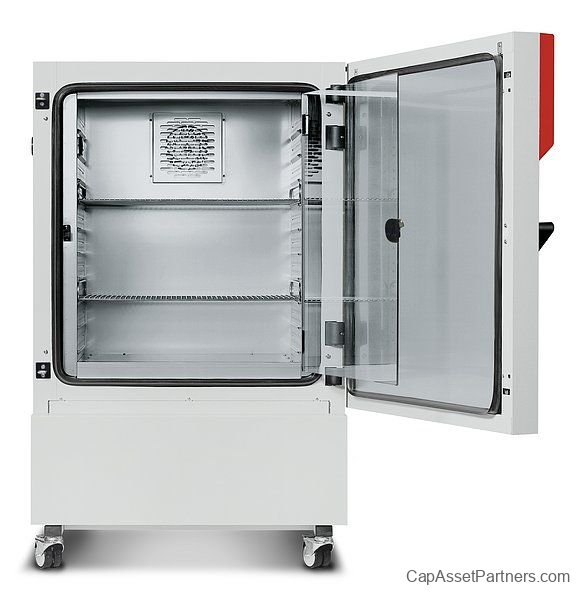

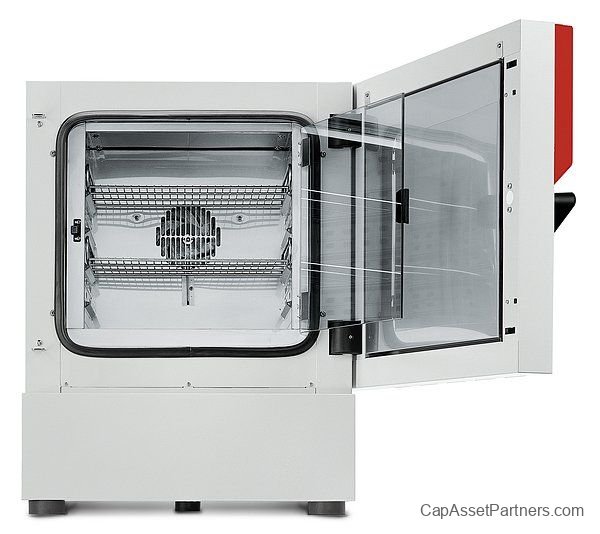

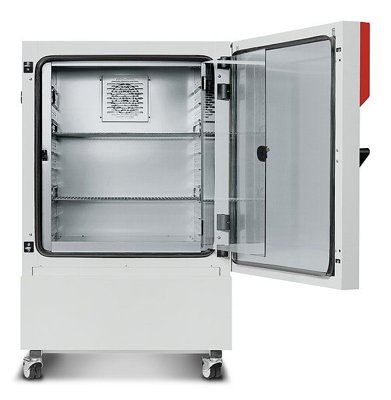

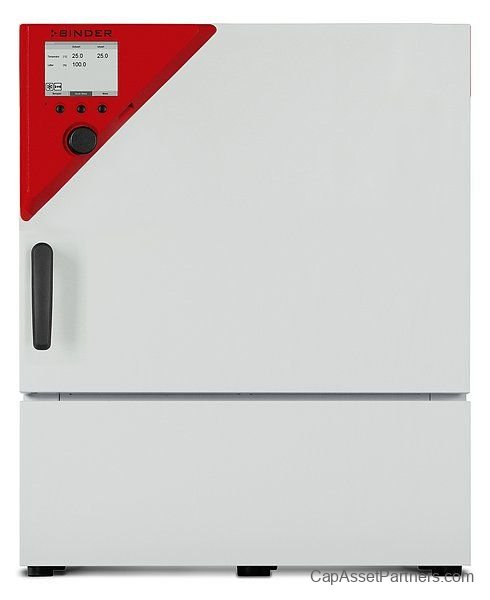

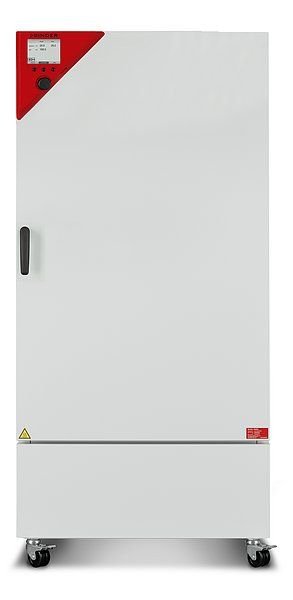

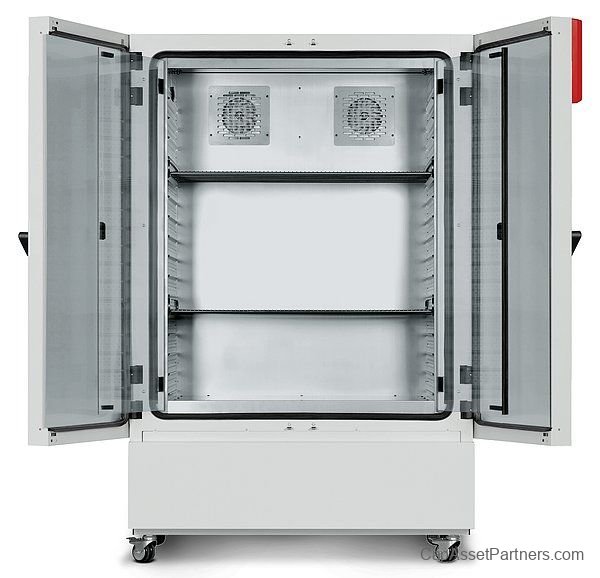

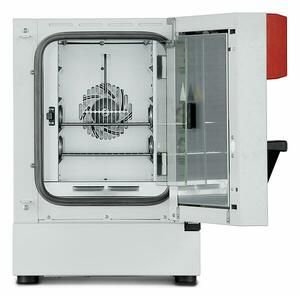

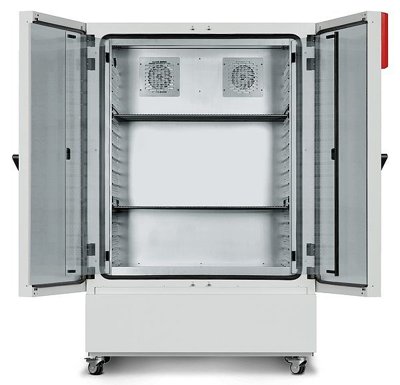

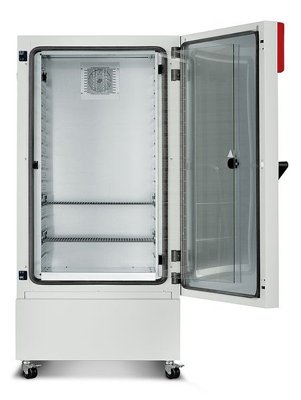

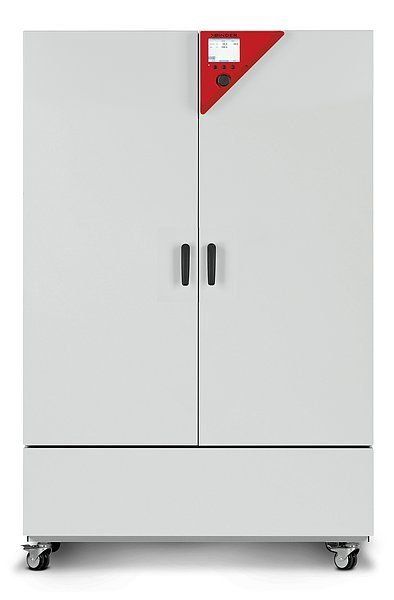

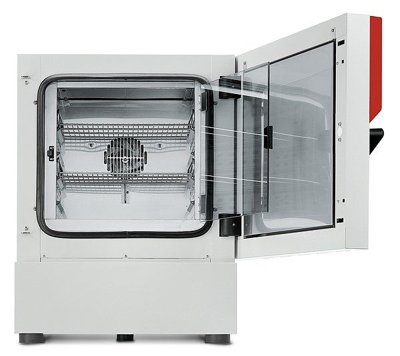

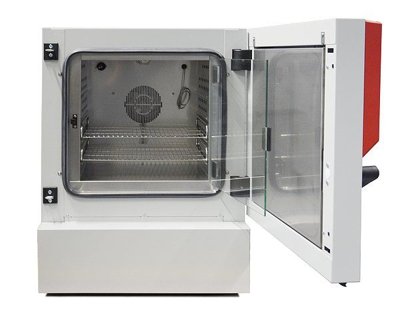

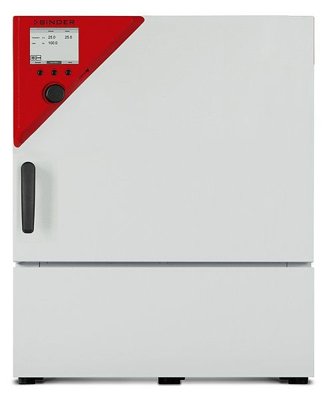

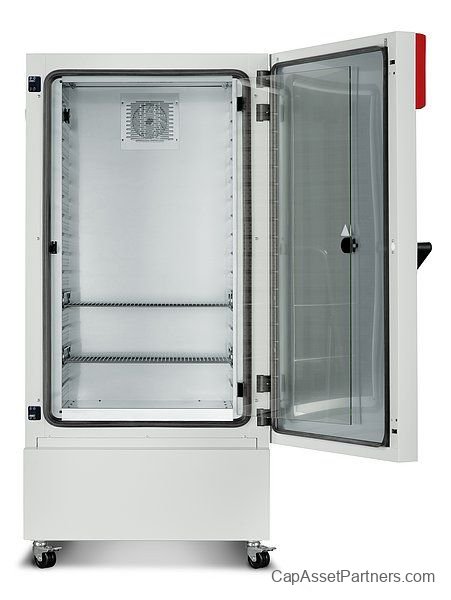

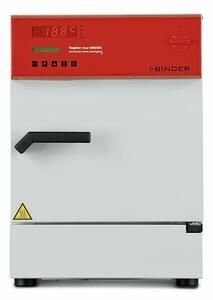

KB Series Refrigerated Incubators with Compressor Technology
The KB Series Refrigerated Incubators with Compressor Technology are engineered to deliver superior performance for microbial cultures. As one of the finest models in today’s market, these incubators combine versatile functionality with precise temperature control, ensuring reproducible results across a variety of applications.
Key Features
- Temperature Range: -10°C to +100°C
- APT.line™ Preheating Chamber Technology: Enhances temperature uniformity
- Energy Efficiency: Up to 30% lower energy consumption compared to previous models
- Compressor Refrigerated System: Provides reliable cooling performance
- Door Heating System: Available from 240 liters for enhanced thermal stability
- Adjustable Fan Speed: Allows for optimal air circulation
- Advanced Controller: Supports time-segment and real-time programming
- Tempered Safety Glass Inner Door: Ensures durability and visibility
- Stainless Steel Racks: Comes with 2 standard racks, expandable up to 15 (depending on model)
- Stackability: Units up to 115 liters are designed to be stackable
- Access Port: Features a silicone plug for easy access (from 240L)
- Caster Wheels: 4 stable castors, two with brakes for excellent mobility (from 240L)
- Temperature Safety Device: Class 3.1 independent safety device (DIN 12880) with visual and acoustic alarm
- Computer Interface: Ethernet connectivity for easy monitoring and data logging
Benefits
- Ensures safe and reproducible incubation conditions, even with high ambient temperatures
- Allows for disinfection routines at +100°C, enhancing usability across different environments
- Significantly reduces energy costs with its improved efficiency
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
| 9020-0199 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0302 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0397 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0398 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0202 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0304 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0203 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0305 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0204 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
| 9020-0306 |
-10°C to 100°C (14°F to 212°F) |
± 0.1 at 37°C |
± 0.2 at 37°C |
Additional Info
| SKU |
# of Shelves |
Door Recovery Time |
Depth |
Height |
Width |
Power Requirement |
| 9020-0199 |
2 std./4 max. |
2 min |
22.85 in |
32.9 in |
25.02 in |
230 V, 50/60 Hz |
| 9020-0302 |
2 std./4 max. |
2 min |
22.85 in |
32.9 in |
25.02 in |
120 V, 50/60 Hz |
| 9020-0397 |
2 std./5 max. |
2 min |
25.61 in |
40.4 in |
32.9 in |
230 V, 50/60 Hz |
| 9020-0398 |
2 std./5 max. |
2 min |
25.61 in |
40.4 in |
32.9 in |
120 V, 50/60 Hz |
| 9020-0202 |
2 std./9 max. |
2 min |
31.52 in |
57.7 in |
36.45 in |
230 V, 50/60 Hz |
| 9020-0304 |
2 std./9 max. |
2 min |
31.52 in |
57.7 in |
36.45 in |
120 V, 50/60 Hz |
| 9020-0203 |
2 std./15 max. |
4 min |
31.72 in |
76.8 in |
36.45 in |
230 V, 50/60 Hz |
| 9020-0305 |
2 std./15 max. |
4 min |
31.72 in |
76.8 in |
36.45 in |
120 V, 50/60 Hz |
| 9020-0204 |
2 std./15 max. |
3 min |
34.87 in |
75.8 in |
49.3 in |
230 V, 50/60 Hz |
| 9020-0306 |
2 std./15 max. |
3 min |
34.87 in |
75.8 in |
49.3 in |
240 V, 50/60 Hz |
