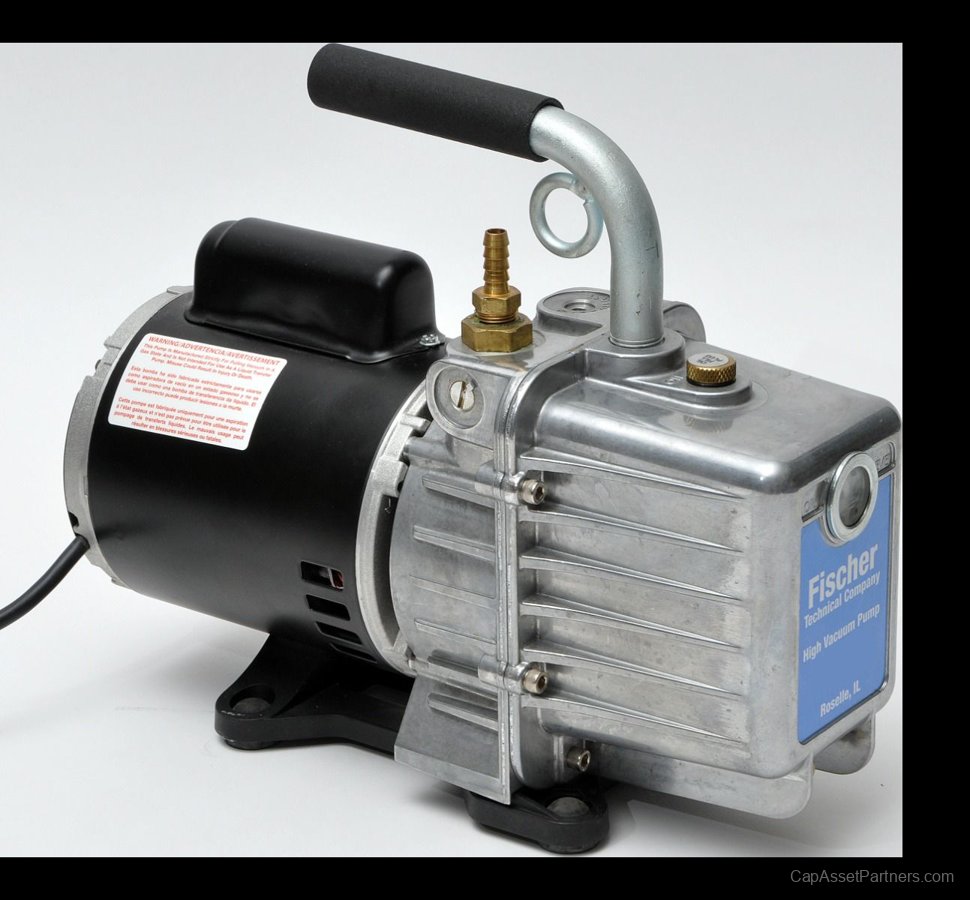

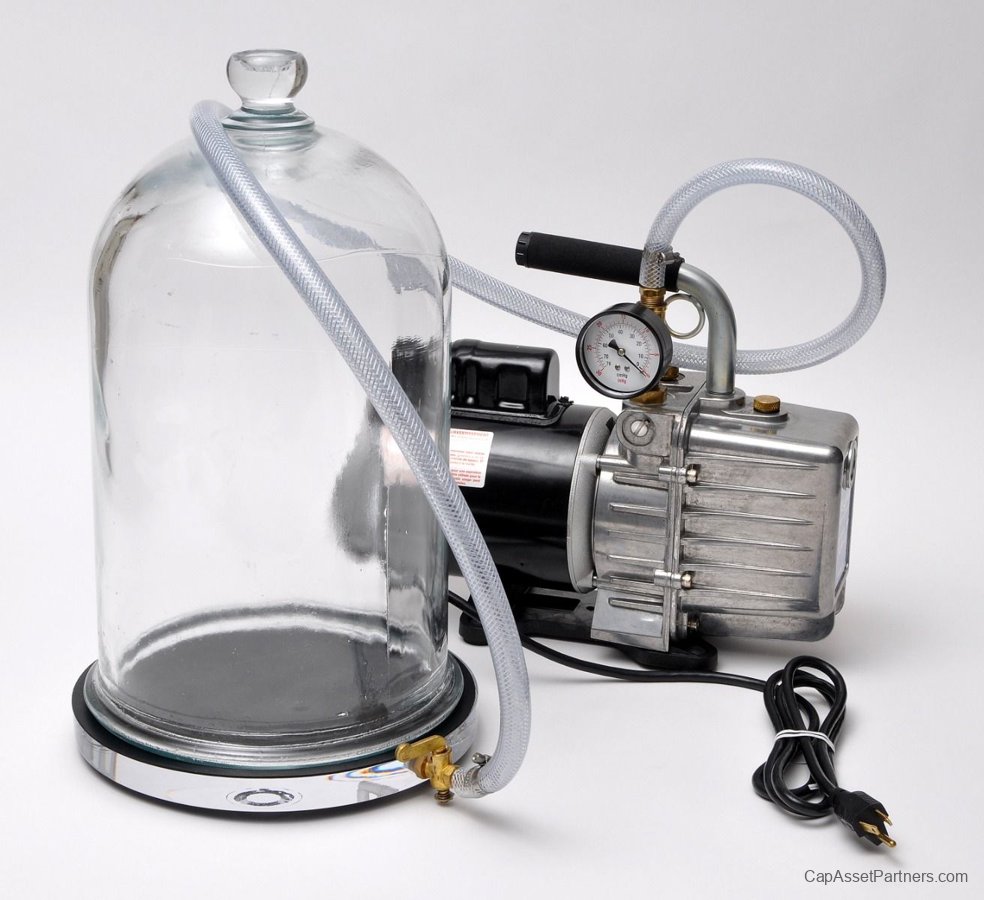

LAV Series High Vacuum Pump, 3 CFM
Engineered for precision and reliability, the LAV Series High Vacuum Pump is a rotary style, 2-stage direct drive pump that delivers exceptional performance for a wide range of high vacuum applications, providing 3 CFM (85 l/m) of airflow. With a robust factory micron rating of 15 microns Hg, this pump is expertly tested to meet the demands of applications requiring a vacuum below 500 microns Hg, ensuring efficiency and accuracy in your laboratory environment.
Key Features and Specifications:
- Factory Micron Rating: 15 microns
- Intake Fitting: 3/8" Intake Hose Barb
- Oil Refill Options: OIL-012 (12 Quarts), OIL-PK (2 Quarts)
- Shipping Dimensions: 11 in H x 14 in L x 5 1/4 in W
- Country of Manufacture: USA
Performance Data:
| SKU |
Gauge |
Operating Temperature Range |
Recirculating Pump Speed |
Motor Type |
Oil Capacity |
| LAV-3/G-DKIT |

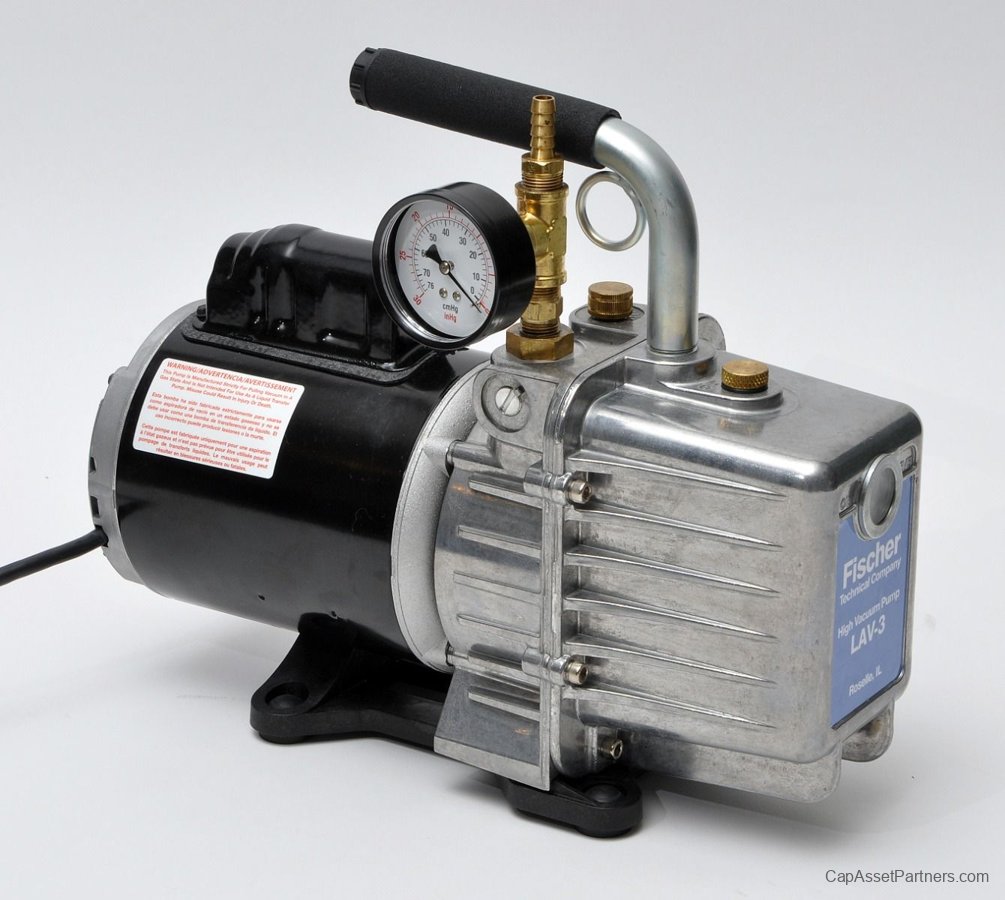

2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
27 oz |
| LAV-3/220 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
27 oz |
| LAV-3/220/G |
2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
27 oz |
| LAV-3/G |
2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
27 oz |
| LAV-3 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
27 oz |
Additional Information:
| SKU |
Certification |
Country of Manufacture |
| LAV-3/G-DKIT |
UL Recognized |
United States |
| LAV-3/220 |
UL Recognized |
United States |
| LAV-3/220/G |
UL Recognized |
United States |
| LAV-3/G |
UL Recognized |
United States |
| LAV-3 |
UL Recognized |
United States |

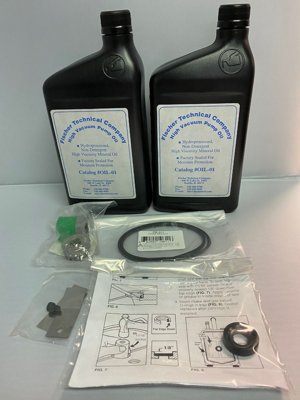

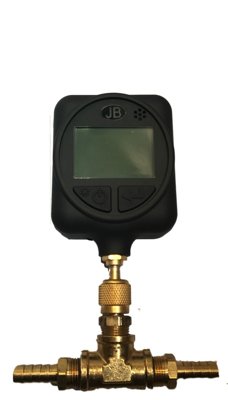

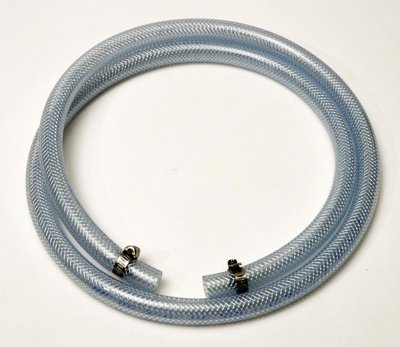

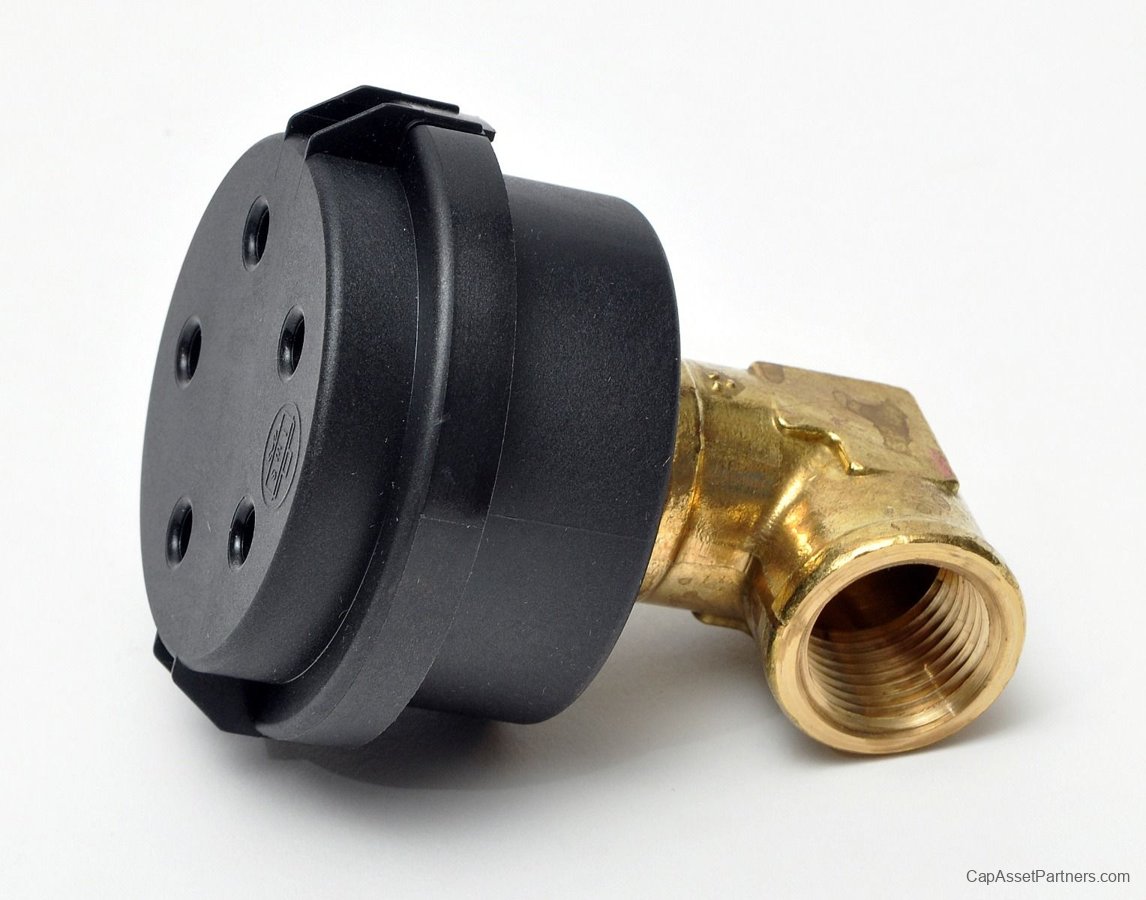

Regular oil changes using high vacuum pump oil (one quart included) and adherence to maintenance protocols will ensure the longevity and optimal performance of your LAV Series High Vacuum Pump in laboratory settings. Accessories are available for enhanced functionality.
