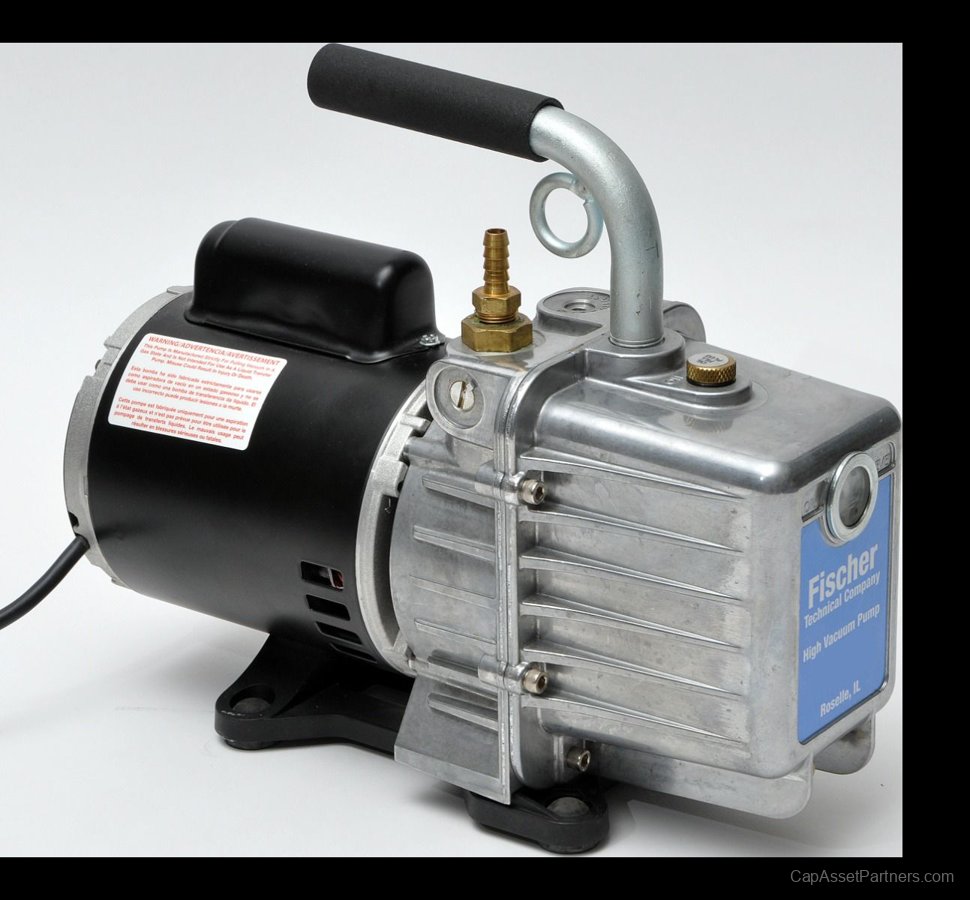

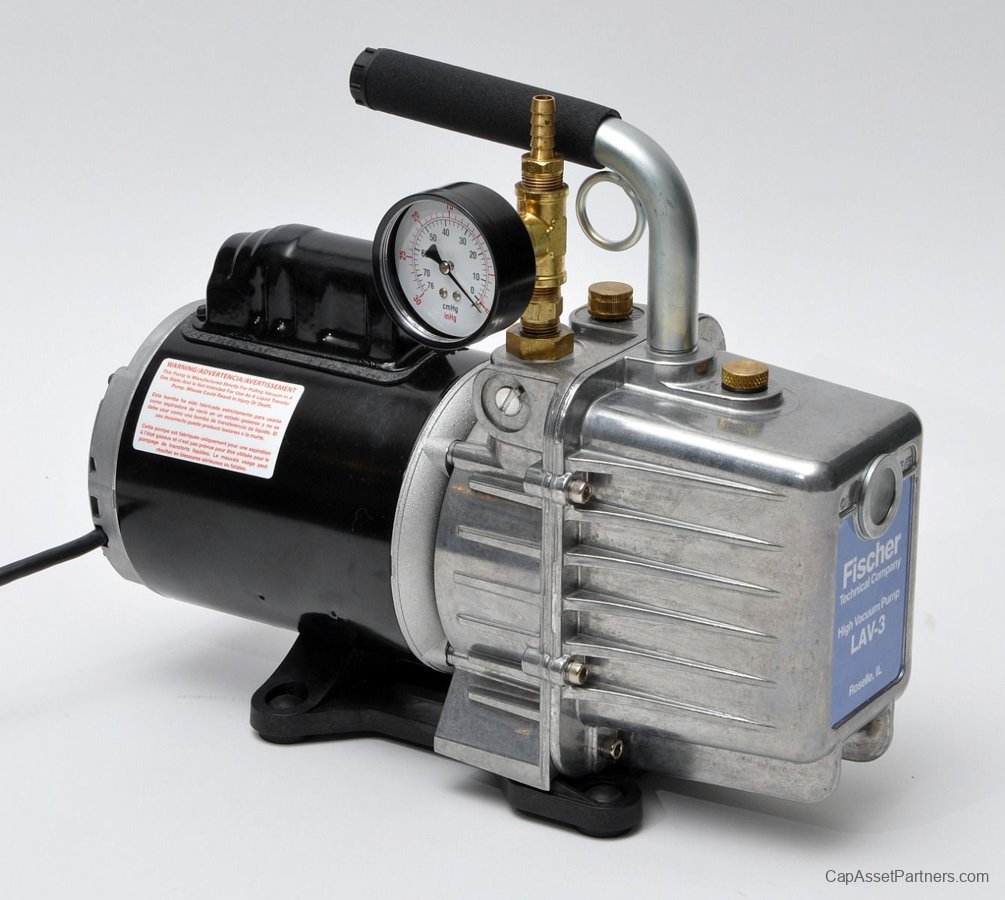

LAV Series High Vacuum Pump, 7 CFM
The LAV Series High Vacuum Pump is engineered for superior performance in high vacuum applications, offering a reliable 7 CFM (200 l/m) output. This rotary, 2-stage direct drive pump delivers ultimate versatility, allowing it to perform exceptionally well in environments requiring vacuums below 500 microns Hg, with a factory micron rating of just 15 microns Hg. Optimized for use with high vacuum pump oil, a quart is included to ensure immediate operation.
Key Features
- Factory Micron Rating: 15 microns
- Intake Fitting: 3/8" Intake Hose Barb

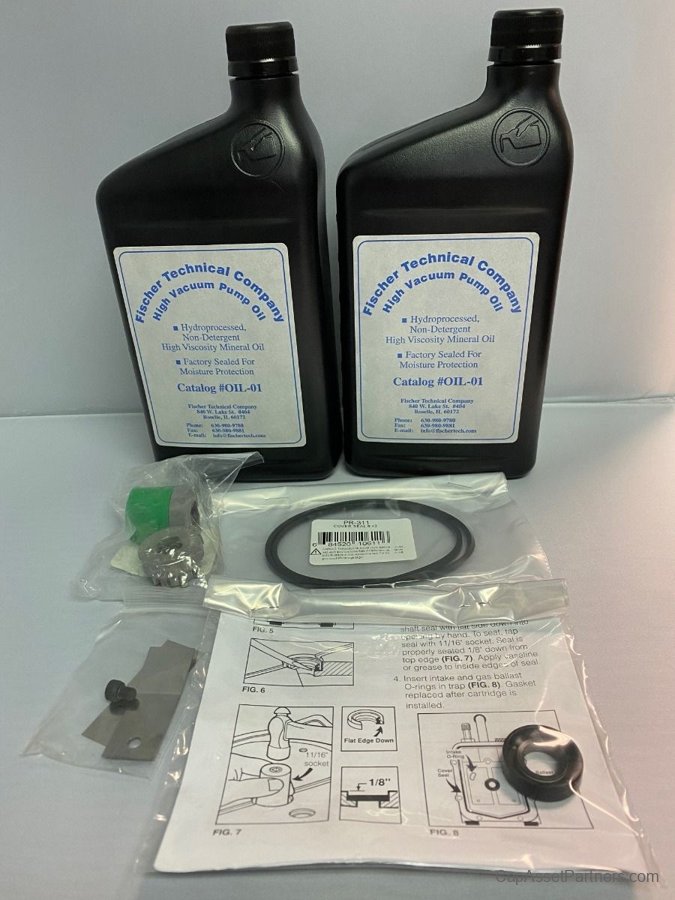

- Oil Refill Options: OIL-012 (12 Quarts) and OIL-PK (2 Quarts)
- Certification: UL Recognized
- Shipping Dimensions: 11in H x 14in L x 5 1/4in W
Specifications
| SKU |
Gauge |
Operating Temperature Range |
Recirculating Pump Speed |
Motor Type |
Oil Capacity |
| LAV-7/G/220 |
2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
| LAV-7 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
| LAV-7/220 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
| LAV-7/G |
2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
Additional Information
| SKU |
Certification |
Country of Manufacture |
| LAV-7/G/220 |
UL Recognized |
United States |
| LAV-7 |
UL Recognized |
United States |
| LAV-7/220 |
UL Recognized |
United States |
| LAV-7/G |
UL Recognized |
United States |
