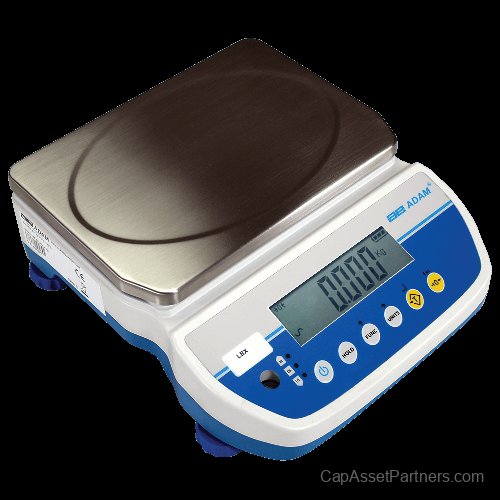

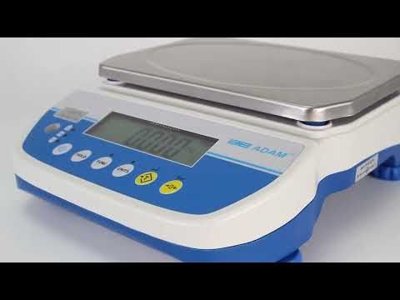

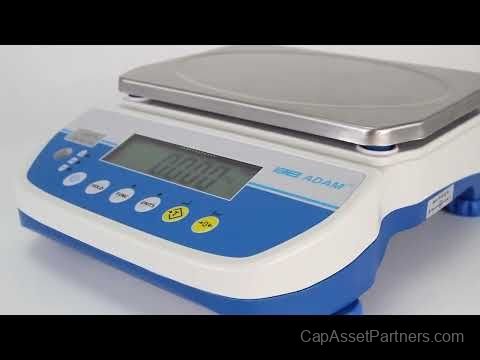

LBX Latitude Compact Bench Scales (0.001lb)
The LBX Latitude Compact Bench Scales stand out as a remarkable solution for diverse weighing needs, including weighing, checkweighing, percentage weighing, and counting. Designed for ease of operation, these scales are perfect for utilization across production lines, warehouses, and fieldwork. Its dual power options—an included AC adapter and an internal rechargeable battery—ensure uninterrupted performance, with the battery lasting up to an impressive 240 hours. Additionally, charging is convenient with compatibility for any USB power source, such as vehicle USB connections or external power banks.
Essential Hardware Features
- Overload Protection: Safeguards the internal components from damage.
- Rugged Construction: Built to withstand demanding industrial environments.
- Sealed Keypad: Provides protection against dirt and spills, ensuring longevity.
- Simple Key Operation: Facilitates easy setup and straightforward operation.
- Large Stainless Steel Pan: Made from grade 304 stainless steel for swift and simple cleaning.
- Adjustable Leveling Feet: Allow optimal setup for precise weighing.
Advanced Software Features
- External Calibration: Enables quick verification and adjustment with weights.
- Checkweighing with Audible Alarm: Alerts users when target weight limits are reached.
- Hold Function: Freezes the displayed weight for review, even after time has elapsed.
- Parts Counting: Equipped with preset sample sizes for efficient counting.
Power Management Features
- Rechargeable Battery: Ensures portable operation in remote locations.
- Programmable Auto Power-Off: Saves energy by automatically turning off after a set duration without use.
- Battery Level Indicator: Clearly displays remaining battery life to prompt timely recharging.
- Low Voltage USB Input: Provides flexibility in powering options.
Specifications
| SKU |
Repeatability |
Linearity |
Pan Size |
Operating Temperature Range |
Warranty |
| LBX 3 |
0.001 lb |
0.002 lb |
245 x 180mm |
0°C to 40°C |
3-Years |
| LBX 30 |
0.01 lb |
0.02 lb |
245 x 180mm |
0°C to 40°C |
3-Years |
| LBX 6 |
0.002 lb |
0.004 lb |
245 x 180mm |
0°C to 40°C |
3-Years |
| LBX 12 |
0.005 lb |
0.01 lb |
245 x 180mm |
0°C to 40°C |
3-Years |
Additional Information
| SKU |
Dimensions |
Material |
Power Requirement |
Display |
Model # |
| LBX 3 |
10" x 11.4" x 4.1" |
ABS |
5VDC 1A Adapter / Internal Rechargeable Battery |
Backlit LCD with 0.9"-High Digits |
LBX 3 |
| LBX 30 |
10" x 11.4" x 4.1" |
ABS |
5VDC 1A Adapter / Internal Rechargeable Battery |
Backlit LCD with 0.9"-High Digits |
LBX 30 |
| LBX 6 |
10" x 11.4" x 4.1" |
ABS |
5VDC 1A Adapter / Internal Rechargeable Battery |
Backlit LCD with 0.9"-High Digits |
LBX 6 |
| LBX 12 |
10" x 11.4" x 4.1" |
ABS |
5VDC 1A Adapter / Internal Rechargeable Battery |
Backlit LCD with 0.9"-High Digits |
LBX 12 |
