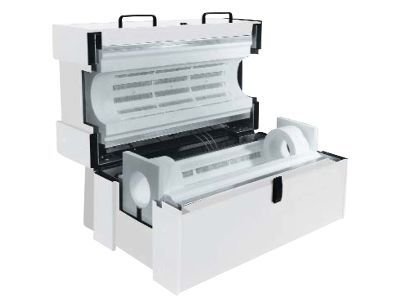

Lindberg/Blue M™ 1200° Split-Hinge Tube Furnaces

Lindberg/Blue M™ 1200° Split-Hinge Tube Furnaces

Features:

• Patented Moldatherm™ LGO™ heating element modules provide exceptional radial and linear temperature uniformity, ensuring quick heat-up and cool-down periods.
• Designed for longevity, these energy-efficient elements require minimal to no maintenance, making them cost-effective and reliable.
• The innovative cabinet design reduces exterior surface temperatures, enhancing safety during operation.
• Incorporates a heat-reflecting element support assembly that creates two effective insulating air spaces, optimizing thermal efficiency.
• Compact cabinet with a high-temperature resistant painted finish, ideal for demanding laboratory environments.
• Easily accommodates interchangeable Moldatherm tube adapters for versatile applications.
• Equipped with long-life Platinel™ II thermocouples featuring 10 ft. compensated lead wires and polarized plugs for reliable temperature monitoring.

Three Zone Models:

• Each model includes three independent power circuits (zones) with thermocouples for precise control references.
• Zone temperature is fully adjustable over the entire operating range up to 1200°C, providing flexibility for varied processes.
• The design maximizes the center zone's uniformity and operating length through adjustable profiling of the end zones via independent controllers.
• Temperature uniformity is customizable, with the ability to set independent setpoints for end zones that can be higher or lower than the center zone.

Required Accessories:

Independent digital temperature control module (sold separately).

Specifications:

SKU	Controller	Temperature Range	Tube Size	Type	Length	Display
HTF55322A	CC58114A (purchase separately)	100°C to 1200°C	1 to 3 in (2.54 to 7.62 cm)	Single Zone	43.2 cm	LED
HTF55322C	CC58114C (purchase separately)	100°C to 1200°C	1 to 3 in (2.54 to 7.62 cm)	Single Zone	43.2 cm	LED
HTF55342C	CC58114C (purchase separately)	100°C to 1200°C	1 to 3 in (2.54 to 7.62 cm)	Single Zone	43.2 cm	LED
HTF55347C	CC58434C (purchase separately)	100°C to 1200°C	1 to 3 in (2.54 to 7.62 cm)	Three Zone	43.2 cm	LED
HTF55667C	CC58434C (purchase separately)	100°C to 1200°C	3 to 6 in (76.2 to 152.4 cm)	Three Zone	53.3 cm	LED

Additional Information:

SKU	Electrical Information	Dimensions
HTF55322A	120V, 50/60Hz	17 in x 23 in x 16 in
HTF55322C	208/240V, 50/60Hz	17 in x 23 in x 16 in
HTF55342C	208/240V, 50/60Hz	17 in x 35 in x 16 in
HTF55347C	208/240V, 50/60Hz	17 in x 35 in x 16 in
HTF55667C	208/240V, 50/60Hz	21 in x 49 in x 20 in
