Lindberg/Blue M™ Box and Tube Furnace Controllers
Enhance your laboratory's performance with the Lindberg/Blue M™ Box and Tube Furnace Controllers. These advanced controllers feature a fully wired, microprocessor-based design, ensuring precise temperature control and reliability for all your furnace needs.
Key Features:
- Comprehensive wiring with advanced microprocessor-based digital control.
- Solid-state power module along with an on/off circuit breaker.
- Independent thermocouple input jacks for each zone, allowing for customized setups.
- Built-in adjustable high-limit overtemperature protection to safeguard your equipment.
- LED display shows actual temperature vs. setpoint in either °C or °F, ensuring clarity in monitoring.
- Compatible with 120, 208, or 240V single-phase lines at 50/60Hz, facilitating versatile integration.
Overtemperature Control:
- Factory installed adjustable digital control for enhanced safety.
- Protects both the furnace and load in the event of a primary control circuit failure.
- Automatically overrides the main controller, shutting off power to the furnace if high limit is reached.
- Requires manual reset after activation for an additional layer of safety.
- Operates using magnetic contacts derived from an independent thermocouple signal.
Specifications:
| Model |
Temperature Range |
Power Options |
Display Type |

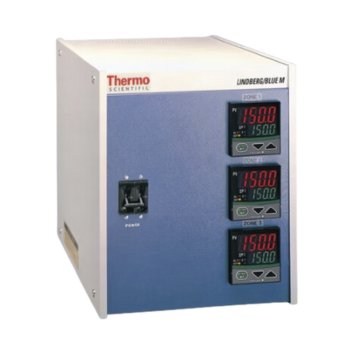

| CC58434C |
Up to 1200°C (Three Zones, 16 Segments) |
120, 208, 240V, 50/60Hz |
Digital |
| CC58434PC |
1200°C (Three Programmable Controllers) |
120, 208, 240V, 50/60Hz |
Digital |

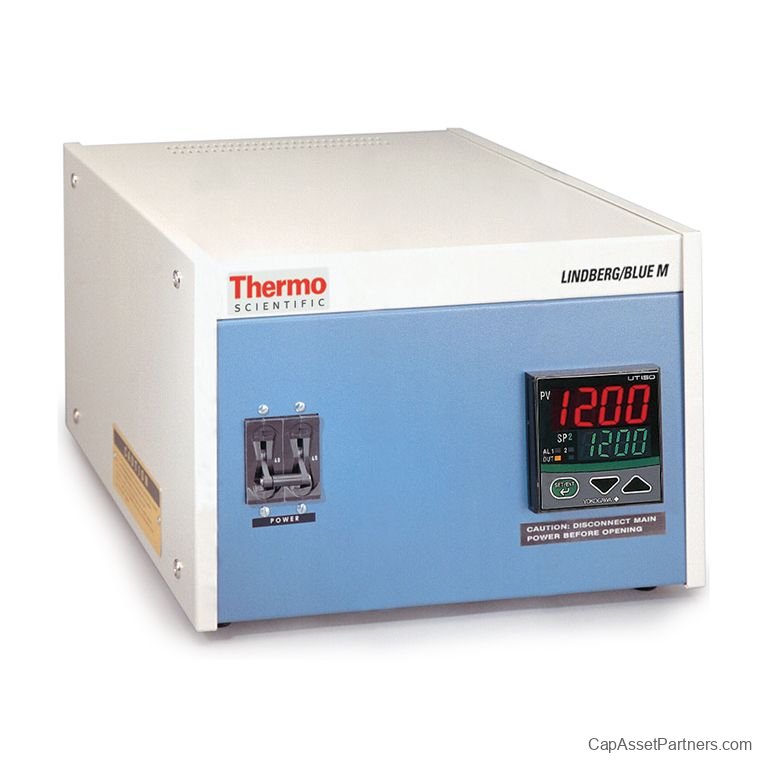

| CC58114PBA |
1200°C (Single Setpoint Controller) |
120, 208, 240V, 50/60Hz |
Digital |
| CC58125C |
1500°C (Single Setpoint Controller) |
120, 208, 240V, 50/60Hz |
Digital |
| CC58125PC |
1500°C (Multiple Segment Programmable Controllers) |
120, 208, 240V, 50/60Hz |
Digital |
Why Choose Lindberg/Blue M™ Controllers?
Our controllers provide unmatched accuracy and control, specifically designed for split-hinge and box furnaces. The advanced PID control technology ensures optimal performance for sensitive materials and laboratory applications. Invest in a solution that prioritizes safety and efficiency in your furnace operations.
