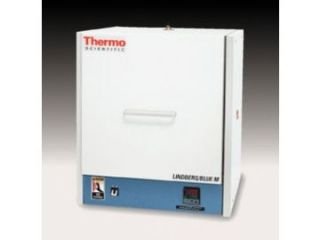

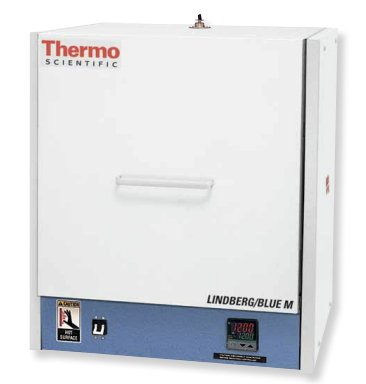

Lindberg/Blue M™ LGO Box Furnaces

Lindberg/Blue M™ LGO Box Furnaces

The Lindberg/Blue M™ LGO Series Box Furnaces represent the pinnacle of innovation in thermal processing equipment. Engineered with the latest advancements in heating elements, insulation, and temperature control, these furnaces are designed to meet the rigorous demands of today's laboratory environments.

Key Features:

• Variable heat-up rate eliminates thermal shock, providing rapid heating and cooling without compromising material integrity.
• Available in two door configurations: side hinge or vertical lift, for flexible and comfortable operation.
• Equipped with a one-inch diameter air vent on the top and a 0.375 inch diameter air inlet at the rear to facilitate inert atmosphere exchange, with some possible leakage at the door.
• Advanced self-tuning digital instrumentation enables precise temperature settings with real-time display.
• Utilizes Platinel II™ thermocouples for enhanced long-term stability and accuracy.
• 0.6 cu. ft. models feature a vertical lift door, while 2 cu. ft. models are equipped with a horizontal side swing door, keeping the hot side away from the operator for optimal safety.

Microprocessor Control:

• Microprocessor-based self-tuning PID control ensures optimal thermal processing, minimizing the risk of temperature overshoot.
• User-friendly control panel designed for easy access and maintenance, complete with a main power ON/OFF switch.
• Adjustable high-limit overtemperature protection safeguards against unforeseen temperature spikes.
• Simultaneous LED display for actual versus setpoint temperature for enhanced monitoring.
• Flexible temperature display options in either °C or °F.
• Safety door switch that interrupts power to the heating element when the door is opened, protecting both the furnace and the operator.
• Removable shelves provide versatility for various applications.
• The Moldatherm™ hearthplate supports loads while guarding against spills and damage.

Control Options:

Digital, Single-Setpoint Controller:

• Single segment and single setpoint controlled with one ramp to the setpoint.

Digital Single-Program, Multiple-Segment Programmable Controller:

• Single program with multiple segments for ramping (up and down) and timed dwell for temperature control.

Digital Multiple-Program, Multiple-Segment Programmable Controller:

• Available on models designated with a 'P', enabling multiple programs and segments for flexible thermal management.

Overtemperature Control (OTC):

• Adjustable digital overtemperature control available on selected models with 'B' suffix designation to protect the furnace and its load.
• Automatically overrides the main controller and deactivates furnace power upon reaching a predetermined high limit.
• Requires manual reset for safety measures, operating via magnetic contacts from an independent thermocouple signal.

Flowmeter Option (FM) (Inert Atmosphere Only):

• Available on selected models with 'FM' designation, featuring a gas flowmeter located on the front control panel.
• Adjustable flow rate ranging from 1.0 to 10.0 cu. ft./hr., applicable for inert gas or controlled airflow into the chamber.
• Facilitates fresh air exchange required for ashing applications, not suitable for combustible or volatile gases.

Includes:

One two-part shelf per unit. The 0.6 cu. ft. models come with one shelf position in the center, while 2 cu. ft. models offer three shelf positions for flexible configuration.

Specifications:

SKU	Door Type	Includes	Temperature Range	Temperature Uniformity
BF51731C-1	Vertical Lift Door		100°C to 1200°C	±2.0°C @ 1100°C
BF51731BC-1	Vertical Lift Door	OTP	100°C to 1200°C	±2.0°C @ 1100°C
BF51732PC-1	Vertical Lift Door		100°C to 1200°C	±2.0°C @ 1100°C
BF51732PBC-1	Vertical Lift Door	OTP	100°C to 1200°C	±2.0°C @ 1100°C
BF51732PFMC-1	Vertical Lift Door	Flowmeter	100°C to 1200°C	±2.0°C @ 1100°C
BF51732PBFMC-1	Vertical Lift Door	OTP, Flowmeter	100°C to 1200°C	±2.0°C @ 1100°C
BF51841C-1	Horizontal Side Swing Door		100°C to 1200°C	±2.0°C @ 1100°C
BF51841BC-1	Horizontal Side Swing Door	OTP	100°C to 1200°C	±2.0°C @ 1100°C
BF51842BC-1	Horizontal Side Swing Door	OTP	100°C to 1200°C	±2.0°C @ 1100°C
BF51842PBC-1	Horizontal Side Swing Door	OTP	100°C to 1200°C	±2.0°C @ 1100°C

Additional Specifications:

SKU	Electrical Information	Internal Dimensions	External Dimensions	Certification	Plug Type
BF51731C-1	208/240V, 50/60Hz, 16-19A, 4500W	11 in x 13 in x 7 in	23 in x 24 in x 27 in	UL, CE	Requires Hard Wiring
BF51731BC-1	208/240V, 50/60Hz, 16-19A, 4500W	11 in x 13 in x 7 in	23 in x 24 in x 27 in	UL, CE	Requires Hard Wiring
BF51732PC-1	208/240V, 50/60Hz, 16-19A, 4500W	11 in x 13 in x 7 in	23 in x 24 in x 27 in	UL, CE	Requires Hard Wiring
BF51732PBC-1	208/240V, 50/60Hz, 16-19A, 4500W	11 in x 13 in x 7 in	23 in x 24 in x 27 in	UL, CE	Requires Hard Wiring
BF51732PFMC-1	208/240V, 50/60Hz, 16-19A, 4500W	11 in x 13 in x 7 in	23 in x 24 in x 27 in	UL, CE	Requires Hard Wiring
BF51732PBFMC-1	208/240V, 50/60Hz, 16-19A, 4500W	11 in x 13 in x 7 in	23 in x 24 in x 27 in	UL, CE	Requires Hard Wiring
BF51841C-1	208/240V, 50/60Hz, 25A, 5800W	15 in x 15 in x 15 in	28 in x 29 in x 33 in	UL, CE	Requires Hard Wiring
BF51841BC-1	208/240V, 50/60Hz, 25A, 5800W	15 in x 15 in x 15 in	28 in x 29 in x 33 in	UL, CE	Requires Hard Wiring
BF51842BC-1	208/240V, 50/60Hz, 25A, 5800W	15 in x 15 in x 15 in	28 in x 29 in x 33 in	UL, CE	Requires Hard Wiring
BF51842PBC-1	208/240V, 50/60Hz, 25A, 5800W	15 in x 15 in x 15 in	28 in x 29 in x 33 in	UL, CE	Requires Hard Wiring
