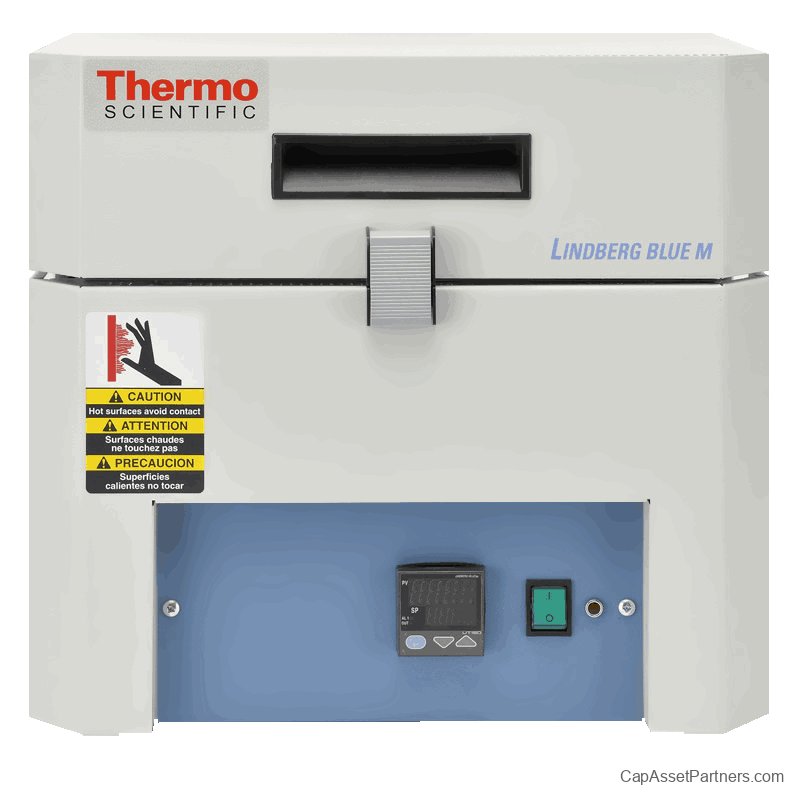

Lindberg/Blue M™ Mini-Mite™ Tube Furnaces
The Lindberg/Blue M™ Mini-Mite™ Tube Furnaces offer exceptional performance in a compact design, tailored for high-precision thermal applications. With rapid heat-up and cooldown capabilities, these portable single tube furnaces are perfectly insulated with Moldatherm to ensure optimal efficiency.
Key Features:
- Microprocessor-Based Control: Features self-tuning PID control that guarantees precise thermal processes with no overshoot.
- Single Segment Operation: Equipped with a single setpoint and one ramp to setpoint for straightforward control.
- Safety Measures: Adjustable high-limit over-temperature protection ensures safe operation.
- Dual Display: Simultaneously shows temperature and setpoint, configurable in °C or °F for user convenience.

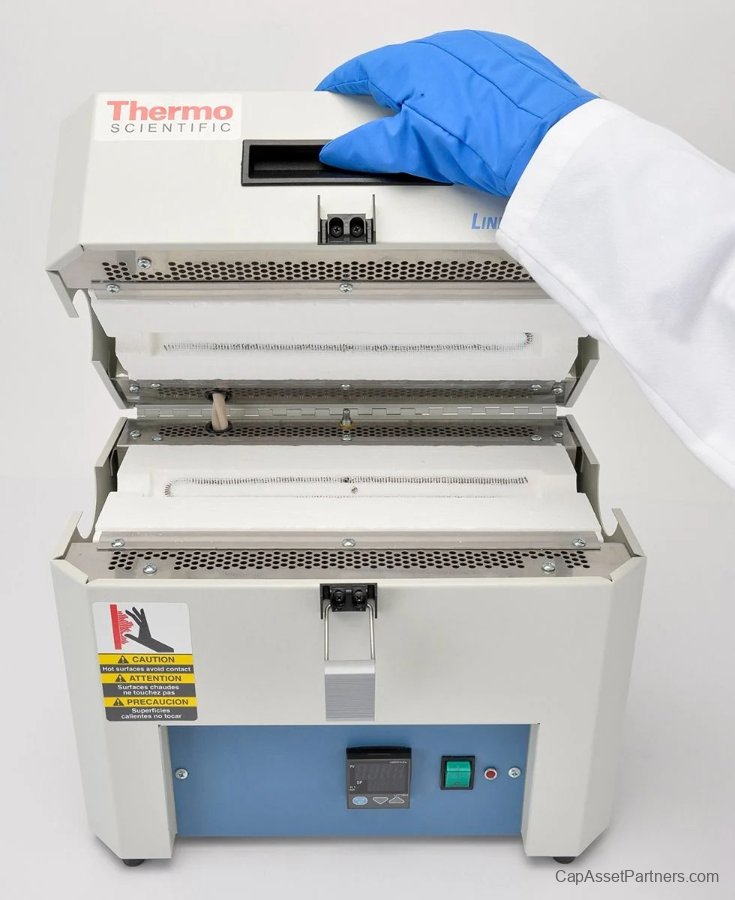

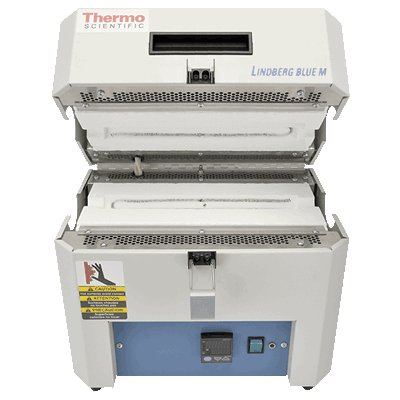

- Efficient Design: A split-hinge mechanism simplifies the loading and unloading process.
- Safety Switch: Automatically disconnects power when the furnace is opened, enhancing user safety.
- Durable Thermocouple: Comes with a Type K long-life thermocouple for reliable temperature readings.
Specifications:
| SKU |
Temperature Range |
Heating Element |
| TF55030A-1 |
100°C to 1100°C |
12 in (30.5 cm) |
| TF55030C-1 |
100°C to 1100°C |
12 in (30.5 cm) |
| TF55035A-1 |
100°C to 1100°C |
12 in (30.5 cm) |
| TF55035C-1 |
100°C to 1100°C |
12 in (30.5 cm) |
Additional Information:
| SKU |
Dimensions |
Power Requirement |
| TF55030A-1 |
11 in x 16 in x 15 in |
120V, 50/60 Hz, 800W |
| TF55030C-1 |
11 in x 16 in x 15 in |
208/240V, 50/60 Hz, 800W |
| TF55035A-1 |
11 in x 16 in x 15 in |
120V, 50/60 Hz, 800W |
| TF55035C-1 |
11 in x 16 in x 15 in |
208/240V, 50/60 Hz, 800W |
Included:
Each unit comes with a 9-foot (3 meter) power cord to ensure flexibility in setup.
