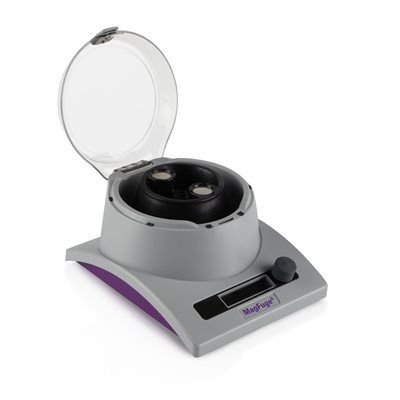

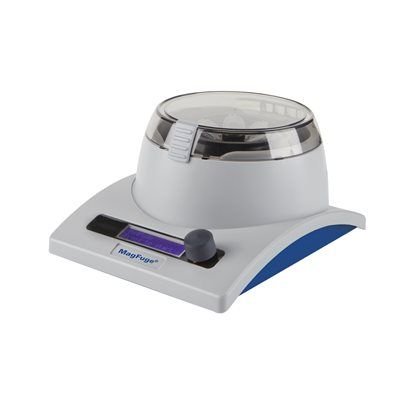

MagFuge® Mini Centrifuge & Stirrer

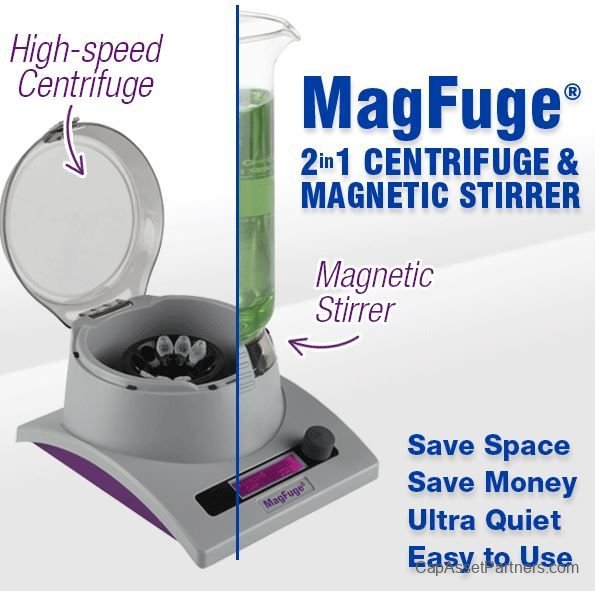

Introducing the MagFuge® Mini Centrifuge & Stirrer – the industry's first high-speed centrifuge and magnetic stirrer integrated into one compact unit. This innovative product is designed to simplify your lab tasks, offering the versatility of both functions without sacrificing space or budget.
Key Features:

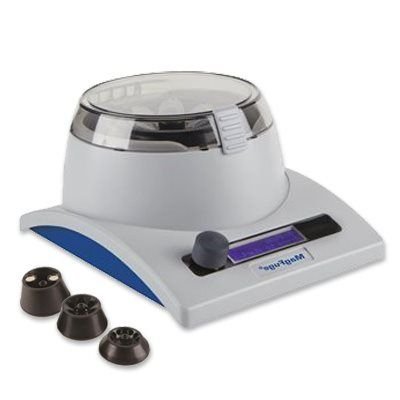

- Efficiently spin down samples ranging from 0.2 ml to 5 ml with multiple rotors and tube adapters included in the bundle.
- Powerful performance with a speed range of up to 12,500 rpm, making it ideal for PCR, microfilter cell separation, and HPLC protocols.

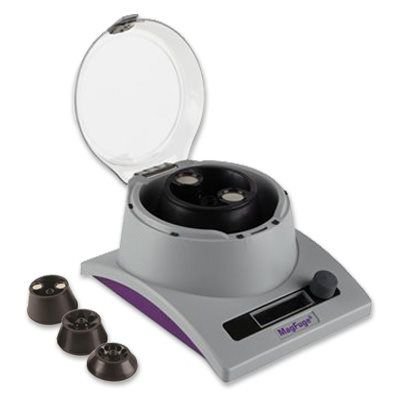

- Seamlessly switch rotors without the need for additional tools, enhancing operational efficiency.
- Unified interface allows operators to learn one system for various applications, boosting proficiency and job satisfaction.
- Compact design minimizes spatial footprint, enabling you to avoid hazards associated with relocating samples within the lab.

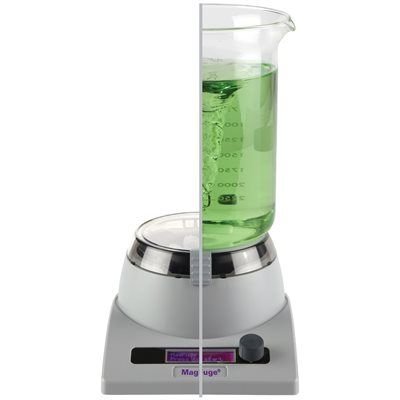

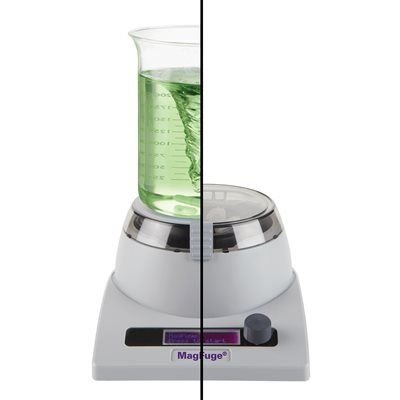

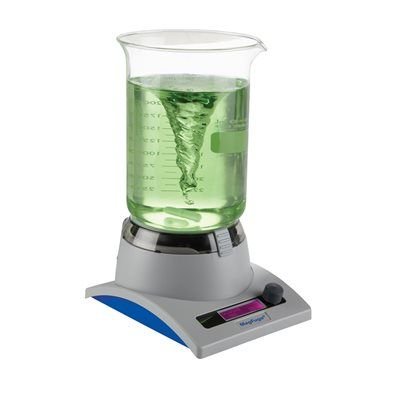

- Included high-performance magnetic stirrer adapter accommodates stirring of samples of 3L or greater, providing reliable backup for your lab needs.

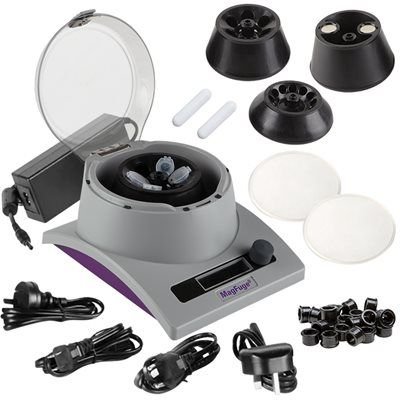

Included in the Box:
- Three Rotors: 5 mL Tube Rotor, 1.5/2.0 mL Tube Rotor, Stirrer Rotor
- 12 Tube adapters for 0.2 mL
- 12 Tube adapters for 0.5 mL
- 2 Silicone mats for stirrer lid
- 2 Rare-Earth PTFE coated Stir Bars (35 x 12 mm cylindrical shape)
- 1 Low Voltage, Double Insulated Power Adapter with 4 cord sets
MagFuge® Centrifuge Specifications:
Speed Range:
- 500 - 999 rpm (increments of 1)
- 1,000 - 5,000 rpm (increments of 5)
- 5,000 - 12,500 rpm (increments of 25)
Capacity:
- 12 place 1.5/2.0 mL tube rotor: 24 mL total maximum liquid volume
- 6 place 5 mL tube rotor: 30 mL total maximum liquid volume
Run Time:
- 30 seconds - 60 minutes (5 second increments)
MagFuge® Magnetic Stirrer Specifications:
Speed Range:
- 50 - 999 rpm (increments of 1)
- 1,000 - 2,500 rpm (increments of 5)
Capacity:
- 3L, with a maximum vessel diameter of 130 mm (6.70")
Run Time:
- Stirrer Mode: 30 seconds to 60 minutes or continuous (5 second increments)
- Oscillating Stirrer Mode: 1 second - 60 minutes or continuous
- Oscillating Period: 30 seconds - 15 minutes
Plate Dimensions:
Additional Specifications:
- Relative Humidity: Non-condensing, 80% for temperatures up to 31°C decreasing linearly to 50% R.H. at 40°C
- Operating Temperature Range: 2°C to 40°C
- Material: ABS, Polycarbonate Plastic
- Dimensions: 9.25 x 7.28 x 4.72 in
