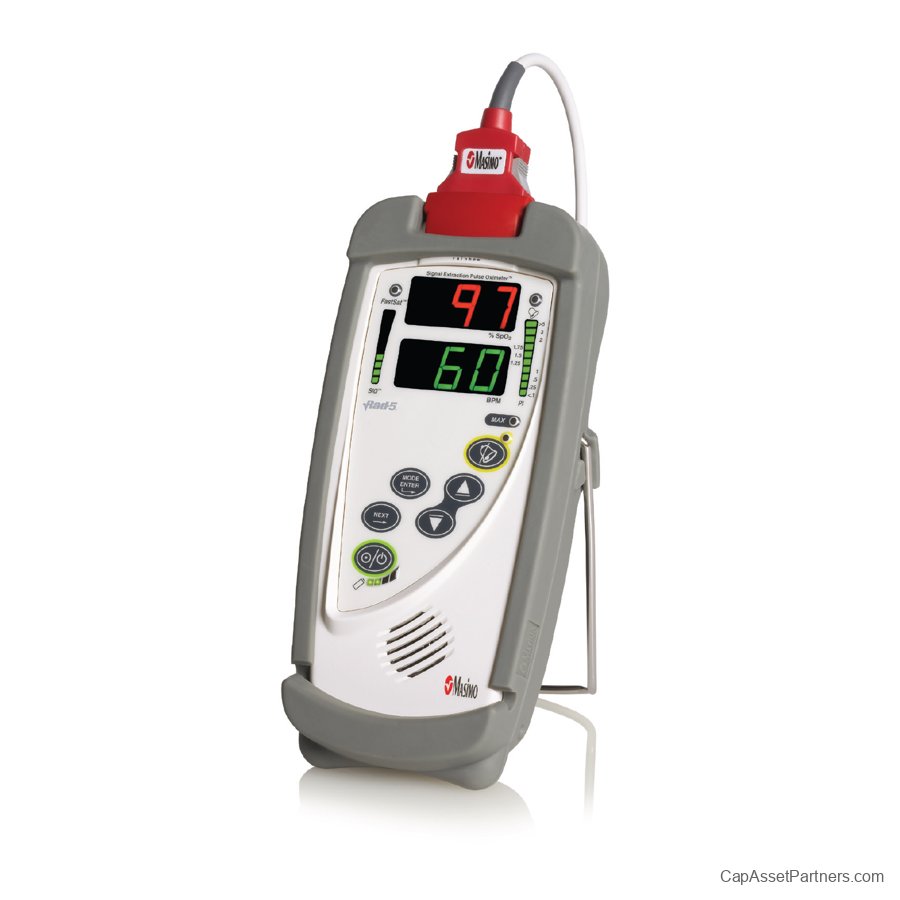

Masimo Rad-5 Signal Extraction Pulse Oximeter

Masimo Rad-5 Signal Extraction Pulse Oximeter
Experience the pinnacle of pulse oximetry with the Masimo Rad-5 Signal Extraction Pulse Oximeter. Designed for both hospital and home use, this advanced handheld device is clinically proven to deliver accurate readings even in motion, offering unmatched sensitivity, specificity, fidelity, and reliability.
Key Features:

• Innovative Technology: Utilizing Masimo SET technology, the Rad-5 ensures precise monitoring under challenging conditions, making it one of the top choices for healthcare professionals.

• Versatile Monitoring: Whether for spot checks or continuous monitoring, this pulse oximeter adapts seamlessly to your needs.

• User-Friendly Interface: Customize your settings with user-configurable power-up defaults, including modes, alarm limits, and sensitivity options, which display upon powering on.

• Exceptional Battery Life: Powered by four AA alkaline batteries, enjoy up to 48 hours of continuous usage, allowing for extended monitoring without interruption.

• Advanced Trending Memory: Capture vital trends with up to 72 hours of memory, enabling comprehensive patient assessments.

• Perfusion Index: Understand arterial pulse signal strength with the Perfusion Index, a valuable diagnostic tool during low perfusion scenarios.

• Signal IQ Indication: Stay informed with the Signal IQ bar, which indicates signal quality during motion or low signal-to-noise situations.

• Rapid Response: FastSat technology allows for quick tracking of changes in arterial O2 with remarkable fidelity, and FastStart ensures immediate measurements upon activation.

• SmartTone Feedback: The device's SmartTone feature audibly syncs with the patient's pulse, even during motion, enhancing patient monitoring capabilities.

• Optional Accessories: Equip your Rad-5 with a protective boot cover that includes a built-in table-top stand for added convenience.

This pulse oximeter is engineered for reliability and precision, making it an essential tool for both healthcare professionals and patients alike. Elevate your monitoring experience with the Masimo Rad-5, where advanced technology meets practical design.

Masimo Rad-5 Signal Extraction Pulse Oximeter Specifications

Measurement Range

• SpO2: 1 - 100%

• Pulse Rate: 25 - 240 bpm (beats per minute)

• Perfusion Index: 0.02% - 20%

Saturation Accuracy

• Saturation: 70% to 100%

• No Motion:

• Adults, Pediatrics: ±2 digits

• Neonate: ±3 digits

• Motion:

• Adults, Pediatrics: ±3 digits

• Neonate: ±3 digits

• Low Perfusion:

• Adults, Pediatrics: ±2 digits

• Neonate: ±3 digits

Pulse Rate Accuracy

• Pulse Rate: 25 - 240 bpm

• No Motion: Adults, Pediatrics, Neonate: ±3 digits

• Motion: Adults, Pediatrics, Neonate: ±5 digits

• Low Perfusion: Adults, Pediatrics, Neonate: ±3 digits

• Resolution:

• Saturation (%SpO2): 1%

• Pulse Rate (bpm): 1 bpm

Electrical

• Batteries:

• Type: 4 AA Alkaline

• Capacity: Up to 48 hours

Environmental

• Operating Temperature: 41°F to 104°F (5°C to 40°C)

• Storage Temperature: -40°F to 158°F (-40°C to 70°C)

• Operating Humidity: 5% to 95%, non-condensing

• Operating Altitude: 500 mbar to 1060 mbar pressure

Physical Weight & Dimensions

• Dimensions: 15.8 × 7.6 × 3.6 cm

• Weight: 13 oz (0.317 kg)

• Trending: Up to 72 hours trending at 2-second resolution; output to PC using Masimo TrendCom™ Utility

Modes

• Averaging Mode: 2, 4, 8, 10, 12, 14, or 16 seconds

• Sensitivity: Normal, APOD, Maximum

Alarms

• Audible and visual alarms for high and low saturation (SpO2 1% to 100% and pulse rate 25 - 240 bpm)

Display/Indicators

• Data Display: %SpO2, pulse rate, perfusion index, FastSat, APOD, alarm status, Signal IQ

• Display Type: LED

Compliance

• EMC Compliance: EN60601-1-2, Class B

• Equipment Classification: IEC 60601-1-1 / UL 2601-1

• Degree of Protection: Type BF-Applied part
