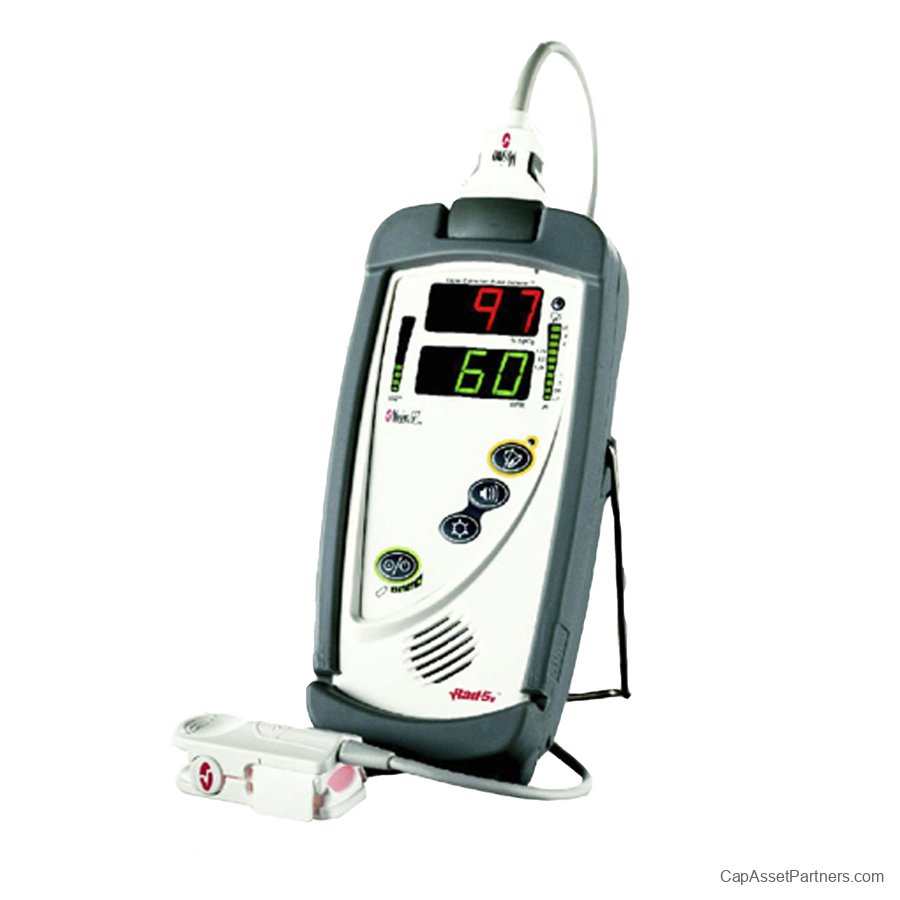

Masimo Rad-5v Signal Extraction Pulse Oximeter

Masimo Rad-5v Signal Extraction Pulse Oximeter: Accuracy and Reliability at Your Fingertips
Discover the power and precision of the Masimo Rad-5v Signal Extraction Pulse Oximeter, designed for both hospital and home use. This state-of-the-art handheld device harnesses Masimo SET® technology, which is clinically proven to provide accurate readings even in challenging conditions like motion and low perfusion.
Key Features:

• Advanced Signal Extraction Technology: The Rad-5v is one of the pioneering handheld devices utilizing Masimo SET technology, ensuring exceptional sensitivity, specificity, and reliability for accurate pulse oximetry.

• Lightweight and Convenient Design: Its compact and lightweight nature makes it ideal for spot check monitoring, whether in clinical settings or at home.

• Extended Battery Life: Operating on just four AA alkaline batteries, the Rad-5v delivers an impressive battery life of up to 48 hours, providing you with uninterrupted monitoring capabilities.

• User-Friendly Display: The Perfusion Index (PI) offers valuable insight into arterial pulse signal strength, making it a helpful diagnostic tool during low perfusion situations. The Signal IQ® (SIQ) bar assists in signal identification and quality indication, ensuring dependable readings even during patient motion.

• Prompt Measurements: Thanks to the FastStart feature, you can obtain rapid measurements from the moment the pulse oximeter is powered on, enhancing efficiency in critical situations.

• Smart Notifications: The device includes audible and visual alarms for Sensor Off and Low Battery, providing peace of mind during monitoring. The innovative SmartTone™ technology produces a beep in sync with the pulse, even when the patient is in motion.

Embrace the reliability and innovative technology of the Masimo Rad-5v Signal Extraction Pulse Oximeter for all your monitoring needs. Whether in fast-paced clinical environments or for personal health monitoring, this tool ensures you have accurate data at your fingertips.

Masimo Rad-5v Signal Extraction Pulse Oximeter Specifications:

Measurement Range:

• SpO2: 1 - 100%

• Pulse Rate: 25 - 240 bpm

• Perfusion Index: 0.02% - 20%

Saturation Accuracy:

• Saturation: 70% to 100%

• No Motion:

• Adults, Pediatrics: ±2 digits

• Neonate: ±3 digits

• Motion:

• Adults, Pediatrics: ±3 digits

• Neonate: ±3 digits

• Low Perfusion:

• Adults, Pediatrics: ±2 digits

• Neonate: ±3 digits

Pulse Rate Accuracy:

• Pulse Rate: 25 - 240 bpm

• No Motion: Adults, Pediatrics, Neonate: ±3 digits

• Motion: Adults, Pediatrics, Neonate: ±5 digits

• Low Perfusion: Adults, Pediatrics, Neonate: ±3 digits

• Resolution:

• Saturation (%SpO2): 1%

• Pulse Rate (bpm): 1 bpm

Electrical:

• Batteries:

• Type: 4 AA Alkaline

• Capacity: Up to 48 hours

Environmental:

• Operating Temperature: 41°F to 104°F (5°C to 40°C)

• Storage Temperature: -40°F to 158°F (-40°C to 70°C)

• Operating Humidity: 5% to 95%, non-condensing

• Operating Altitude: 500 mbar to 1060 mbar pressure

Physical Weight & Dimensions:

• Dimensions: 15.8 cm × 7.6 cm × 3.6 cm (6.22 in × 2.99 in × 1.42 in)

• Weight: 13 oz (0.317 kg)

• Alarms: Sensor condition, system failure, and low battery alarms

Display/Indicators:

• Data Display: %SpO2, pulse rate, perfusion index, alarm status, Signal IQ

• Type: LED

Compliance:

• EMC Compliance: EN60601-1-2, Class B

• Equipment Classification: IEC 60601-1-1 / UL 2601-1

• Degree of Protection: Type BF-Applied part
