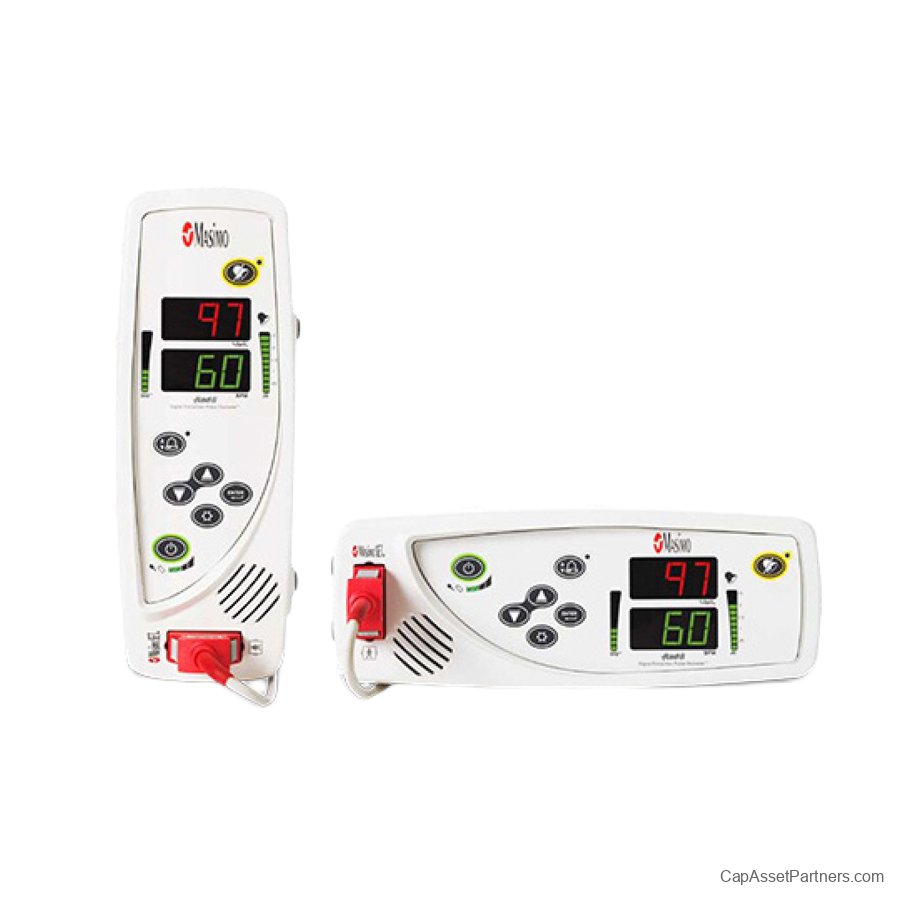

Masimo Rad 8 Signal Extraction Pulse Oximeter

Compact Design. Unmatched Clinical Performance.

Discover the Masimo Rad 8 Signal Extraction Pulse Oximeter, a cutting-edge medical device designed for both acute and alternate care settings. This advanced pulse oximeter is proven to deliver exceptional accuracy, even during motion and low perfusion, as supported by over 100 independent clinical studies. Its reliable Masimo SET oximetry technology is instrumental in enhancing patient care and minimizing medical errors.

• Lightweight and portable design featuring an extended battery life, ideal for transport applications.
• Large, easy-to-read LED color display allows for visibility from a distance.
• Versatile with configurable Sleep and Home modes for tailored monitoring experiences.

Features

Experience the reliability and innovation of the Masimo Rad 8 Signal Extraction Pulse Oximeter, your essential partner in accurate patient monitoring.

Masimo Rad 8 Signal Extraction Pulse Oximeter Specifications (Old):

Physical Weight & Dimensions:

• Dimensions: 8.2 × 6.0 × 3.0 inches (20.8 × 15.2 × 7.6 cm)

• Weight: 2.1 lbs (0.908 kg; 32 oz)

Measurement Range:

• SpO2: 1 - 100%

• Pulse Rate: 25 - 240 beats per minute (bpm)

• Perfusion Index: 0.02% - 20%

Saturation Accuracy:

• Saturation: 70% to 100%

• No Motion:

• Adults, Pediatrics: ±2 digits

• Neonate: ±3 digits

• Motion:

• Adults, Pediatrics: ±3 digits

• Neonate: ±3 digits

• Low Perfusion:

• Adults, Pediatrics: ±2 digits

• Neonate: ±3 digits

Pulse Rate Accuracy:

• Pulse rate: 25 - 240 bpm

• No Motion: Adults, Pediatrics, Neonate: ±3 digits

• Motion: Adults, Pediatrics, Neonate: ±5 digits

• Low Perfusion: Adults, Pediatrics, Neonate: ±3 digits

• Resolution:

• Saturation (%SpO2): 1%

• Pulse Rate (bpm): 1 bpm

Electrical:

• AC Power requirements: 100-240 VAC, 47-83 Hz

• Power consumption: 15 VA

Batteries (Handheld):

• Type: Sealed lead acid

• Capacity: 8 hours

• Charging time: 8 hours

Environmental:

• Operating Temperature: 41°F to 104°F (5°C to 40°C)

• Storage Temperature: -40°F to 158°F (-40°C to +70°C)

• Operating Humidity / Storage: 5% to 95%, non-condensing

• Operating Altitude: 500 mbar to 1060 mbar pressure (-1000 ft to 18,000 ft) (-304 m to 5,486 m)

Modes:

• Averaging mode: 2, 4, 8, 10, 12, 14 or 16 seconds

• Sensitivity: APOD, Normal and Max

Alarms:

• Audible and visual alarms for high and low saturation (1% to 100%), pulse rate (25 - 240 bpm), sensor condition, system failure, and low battery.

• Alarm volume: 75 dB min

Display/Indicators:

• Data display: %SpO2, pulse rate, alarm status, alarm silenced status, AC power, Signal IQ / pleth bar, perfusion index bar, battery status, no sensor, sensor off

• APOD, Norm, Max, FastSat, Trauma: LED

• Type: LED

Output Interface:

• Serial RS-232

• Nurse Call

Compliance:

• EMC Compliance: EN60601-1-2, Class B

• Equipment Classification: IEC 60601-1/ UL 60601-1

• Type of Protection: Class 1 (on AC power); Internally powered (on battery power)

• Degree of Protection - Patient Cable: Type BF-Applied part

• Mode of Operation: Continuous
