Maxtec MAX-8 Extra-Life Replacement Oxygen Cell - Datex-Ohmeda and Others

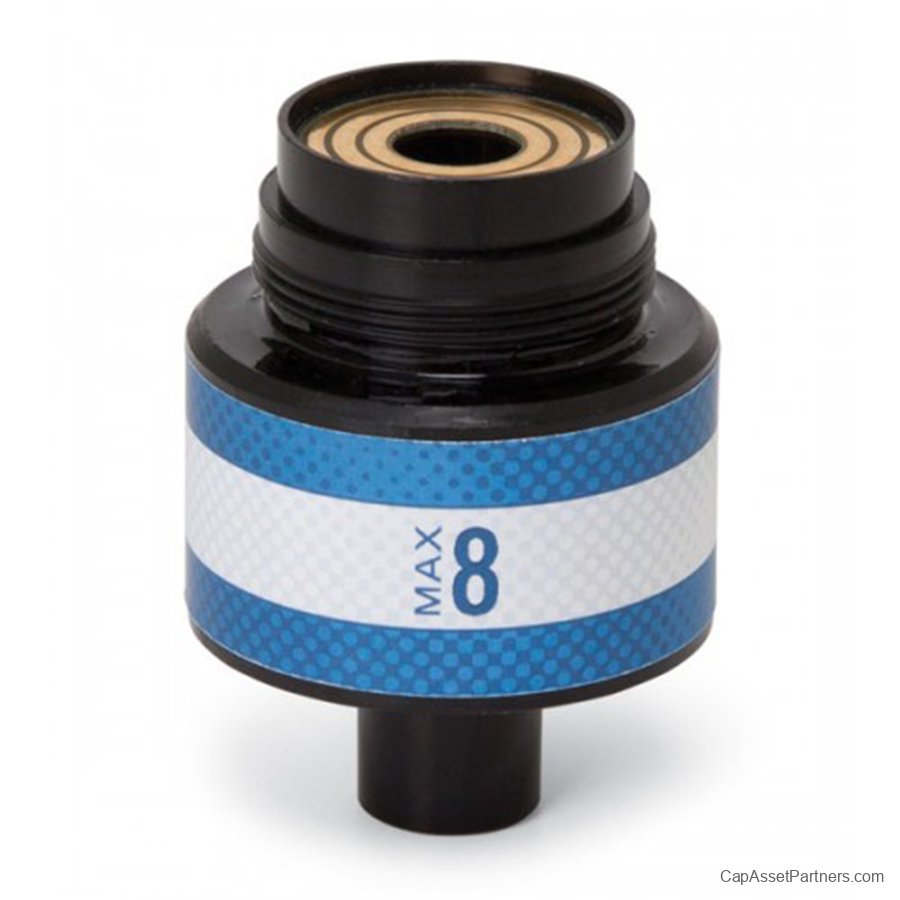

Maxtec MAX-8 Extra-Life Replacement Oxygen Cell
Enhance your medical equipment's performance with the Maxtec MAX-8 Extra-Life Replacement Oxygen Cell. Designed for extended life, this high-quality oxygen cell is specifically intended for external applications, ensuring optimal functionality in critical settings.
The MAX-8 features a large sensor that conveniently replaces both the O2 assembly cap and sensor, making installation straightforward and efficient.
This replacement cell is compatible with a wide range of models from Datex-Ohmeda and other manufacturers, including:

• Analytical Industries (Replacement Part # PSR-11-915-3)

• Datex-Ohmeda Excel Series

• Datex-Ohmeda Modulus Series

• Datex-Ohmeda 5250 RGM (external use only)

• Datex-Ohmeda 5120 Monitor

• Datex-Ohmeda 5125 Monitor

• Datex-Ohmeda (Replacement Part # 0237-2034-700)

• Mercury Medical (Replacement Part # 10-103-13)

• Pacifitech (Replacement Part # PT-28A)

• Teledyne (Replacement Part # R32MED)

• VTI / Vascular Technology Inc. (Replacement Part # 101272)

Invest in reliable and efficient respiratory monitoring with the Maxtec MAX-8 Extra-Life Replacement Oxygen Cell—your go-to solution for maintaining the accuracy of your medical devices.

Maxtec MAX-8 Extra-Life Replacement Oxygen Cell Specifications:

• Model: MAX-8

• Type: Electrochemical oxygen sensor

• Compatibility: Datex-Ohmeda and other compatible devices

• Oxygen Range: 0 - 100% O?

• Output Signal: 0 - 10 mA (4 - 20 mA compatible)

• Response Time: < 10 seconds (T90)

• Operating Temperature:

• °C: 0°C to 50°C

• °F: 32°F to 122°F

• Operating Humidity: 0% to 95% non-condensing

• Life Expectancy: Up to 36 months (varies based on use conditions)

• Dimensions:

• Diameter: 1.4 inches (35.5 mm)

• Height: 2.2 inches (56 mm)

• Weight: Approximately 3.5 ounces (100 grams)

• Power Supply: 12 – 15 VDC

• Storage Temperature:

• °C: -20°C to 60°C

• °F: -4°F to 140°F

Please verify compatibility with specific devices before use.
