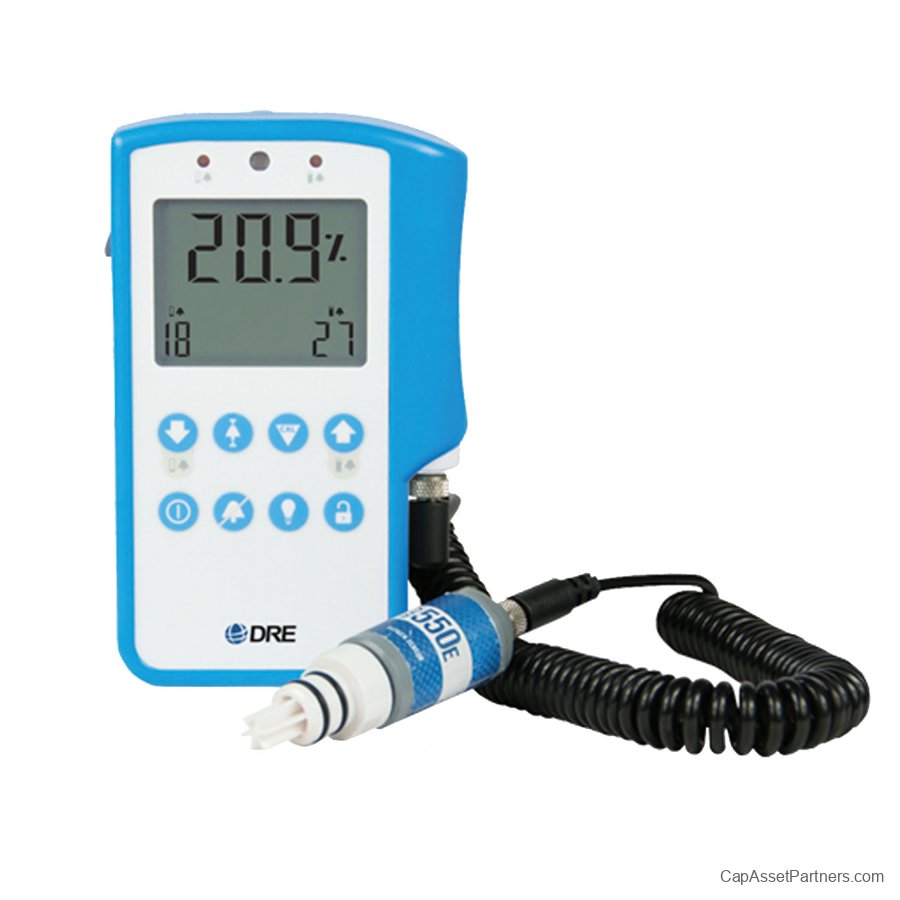

Maxtec MaxO2 ME Oxygen Monitor

Maxtec MaxO2 ME Oxygen Monitor

• Reliable and User-Friendly Monitoring Solution

The Maxtec MaxO2 ME Oxygen Monitor stands out as a low-maintenance, user-friendly device designed for diverse healthcare settings. Featuring a large, backlit LCD screen, this monitor ensures clinicians can easily view and interpret patient oxygen levels, even in dimly lit environments. The intuitive hard keys simplify operation, allowing for quick adjustments and readings.

Key Features

Explore the Maxtec MaxO2 ME Oxygen Monitor for a reliable solution in patient monitoring and ensure seamless care in your facility.

• Measurement Range: 0% to 100%

• Display Resolution: 0.10%

• Response Time: 90% of final value < 15 seconds at 23°C (73°F)

• Warm-Up Time: None required

• Calibration Reminder: One week timer; restarted every calibration

• Sensor Type: Maxtec MAX-550 Series Galvanic Fuel Cell

• Sensor Connection: M16x1 thread

• Sensor Operating Life: > 1,500,000 oxygen percent hours

• High Alarm: 18% to 99%

• Low Alarm Range: 15% to 99%

• Alarm Accuracy: Exact to displayed O2 values

• Alarm System: High/low alarm system, flashing yellow LEDs, nominal 975 Hz audio buzzer

• Linearity: ± 1% of full-scale at constant temperature and pressure

• Accuracy: ± 1% of full-scale at constant temperature, relative humidity, and pressure

• Min/Max Storage Temperature: 5°F to 122°F (-15°C to 50°C)

• Operating Temperature: 59°F to 104°F (15°C to 40°C)

• Power Requirements: 4 AA alkaline batteries

• Optional Remote Power Supply: 7.5 VDC power adapter (does not function as a charger; only extends battery life)

• Battery Life: 5,000 hours (continuous monitoring; no alarms, no backlighting)

• Low Battery Indicator: On-screen icon

• Dimensions: 3.6 x 5.8 x 1.2 inches (91.4 x 147.3 x 30.5 mm)

• Weight: < 1.5 lbs (680 g)

• Cable Length: 10 ft (3 m) when fully extended
