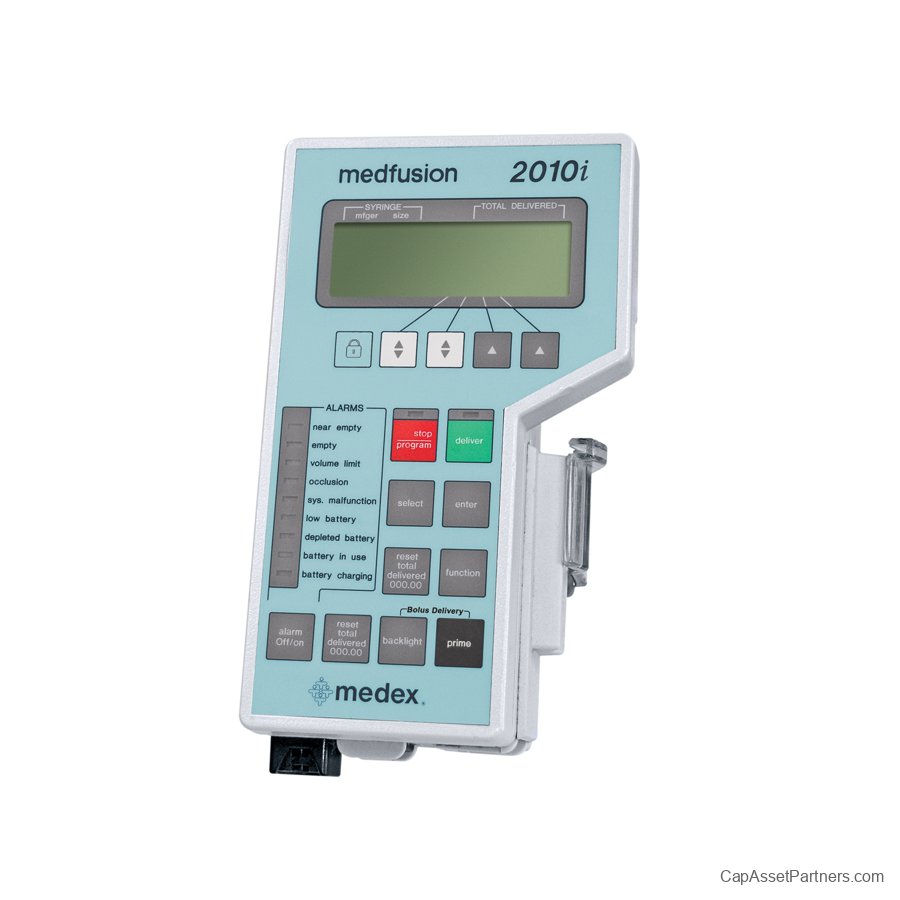

Medfusion 2010i Syringe Pump

Medfusion 2010i Syringe Pump: Precision Infusion for Diverse Clinical Needs
The Medfusion 2010i syringe pump is designed to meet a range of clinical demands in various healthcare settings. Ideal for administering accurate low-volume drug or fluid injections, this advanced pump ensures precision and reliability when managing patient care in hospitals.
With customizable options, the Medfusion 2010i caters to specific applications, enhancing its versatility. It features four distinct modes of delivery: Body Weight Mode, Mass Mode, Continuous Mode, and Volume Over Time Mode, allowing clinicians to select the most appropriate method for each patient. Additionally, the pump boasts the capability to store up to 64 user-defined regimens or protocols, streamlining the infusion process and improving workflow efficiency.
Flexibility is at the core of the Medfusion 2010i, enabling healthcare professionals to program a bolus that can be modified or administered at any point before or during drug delivery. This feature ensures that clinicians can respond promptly to the dynamic needs of their patients.
Key Features:

• Programmable for four infusion types: Body Weight Mode, Mass Mode, Continuous Mode, Volume Over Time Mode

• Ability to store up to 64 user-defined regimens/protocols

Elevate your infusion management with the Medfusion 2010i syringe pump—a vital tool for any medical facility focused on delivering high-quality patient care.

Medfusion 2010i Syringe Pump Specifications

General:

• Flow rate: 0.01 - 378.0 ml/hr (0.003 - 100.0 gal/hr) dependent upon syringe size

• Bolus rate: up to 378.0 ml/hr (0.100 gal/hr) dependent upon syringe size

• Total Volume Delivered: 0.0000 - 9999 ml (0.0000 - 9999 mg or units)

• Accuracy: ±3%

• Infusion Modes: Body Weight, Mass, Continuous, Volume/time

• Compatible Syringes:

• B-D: 1 TB, 1, 3, 5, 10, 20, 30, 60 ml (Luer lock)

• Monoject: 1 TB, 3, 6, 12, 20, 35, 60 ml (Luer lock)

• Terumo: 1 TB, 3, 5, 10, 20, 30, 60 ml (Luer lock)

• B-D (glass): 1, 3, 5, 10 ml

• Automatically adjusts output PSI for different syringe sizes

• Senses syringe size, barrel placement, and plunger placement

• All syringes fill to maximum capacity

• Power: AC/internal battery

• Recharge Time: ? 16 hours with the pump turned off

• Battery Capacity: At 25°C (77°F), a 16-hour charge enables operation for approximately 10 hours at 5.0 ml/hr (0.21 ml/min) with a 60 ml syringe

• Alarms: Near Empty, Empty, Occlusion, System Malfunction, Low/Depleted Battery, Load Syringe Plunger, Check Clutch, Syringe Pops Out, Invalid Size, Invalid Number, Alarm Audio Volume (soft/loud), Alarm Temporary Delay

• Status Alerts: Stop/Program, Deliver, Battery In Use, Battery Charging, Priming, Back Light, Standby Mode, Bolus Delivery, End of Bolus

• Water-resistant case

• Suitable for arterial infusions

• Weight: 2.5 lbs (1.13 kg)

• Dimensions: 4.5" (W) × 3" (H) × 7.5" (D) (11.43 cm × 7.62 cm × 19.05 cm)

• Optional 220V AC charger for global use
