Medical Gas Alarms - Combination Alarm Panel

Medical Gas Alarms

• Combination Alarm Panel

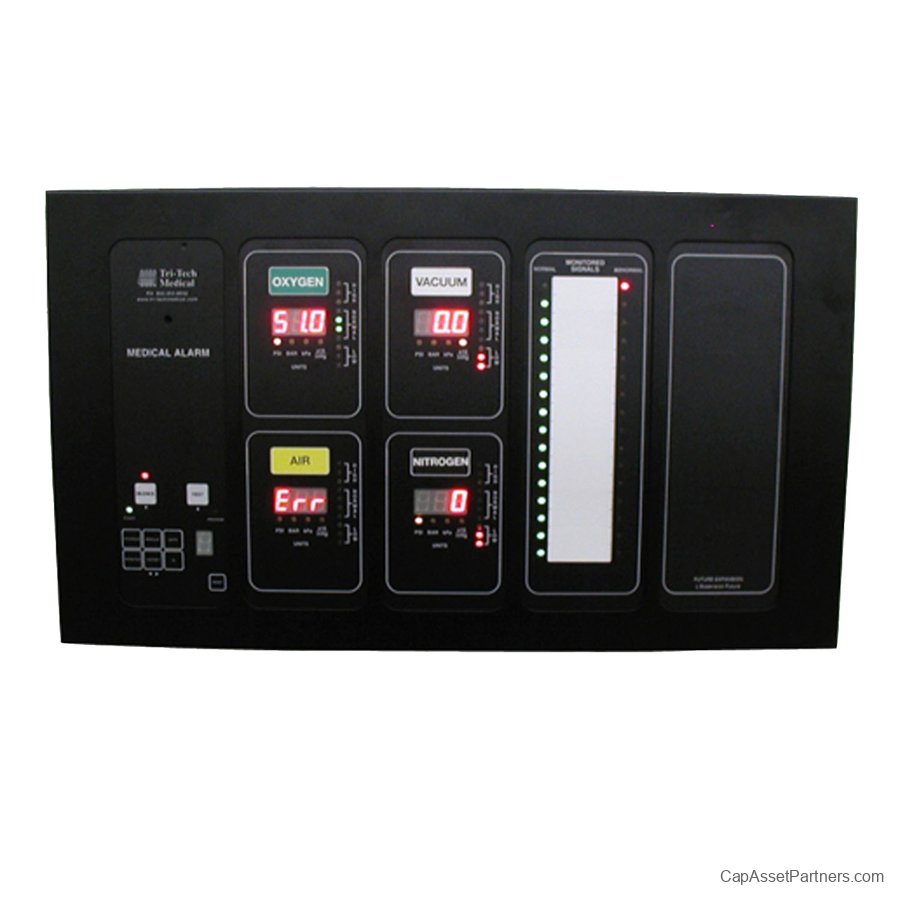

The Combination Alarm Panel is an advanced monitoring solution designed to enhance patient safety in medical environments. This robust system is capable of monitoring and displaying normal and alarm conditions for up to 6 medical gases or up to 64 remote medical gas source signals, making it an essential tool for healthcare facilities. The model showcased is equipped with features that allow future expansion, accommodating the unique needs of any healthcare setting.

Features

• Compliance and Safety: This alarm panel complies with NFPA 99 standards and is proudly made in the U.S.A., ensuring reliability and safety in medical applications.

• Easy Installation: The self-contained unit is designed for straightforward installation and servicing, minimizing downtime and ensuring optimal functionality.

• Advanced Monitoring: With microprocessor control, this unit offers self-diagnostic capabilities and displays error messages to facilitate maintenance.

• Comprehensive Alarm Indicators: The panel includes both audio and visual alarm indicators, ensuring that critical alerts are easily perceived in any circumstance.

• User-Friendly Displays: Bright, easy-to-read LED displays provide clear visibility under all lighting conditions, allowing for constant monitoring of each gas and alarm signal.

• Programmable Alerts: Users can set high/low set points and configure remote alarm signals to meet specific operational requirements.

• Remote Monitoring Capabilities: Equipped with dry contacts, the panel allows for remote monitoring of all alarm conditions.

• Alarm History Tracking: The system features an alarm history display that logs previous alarm conditions, aiding in trend analysis and incident response.

• Accessibility and Comfort: The hinged frame with lanyards ensures easy access for maintenance and adjustments, optimizing the user experience.

• Color-Coded Modules: Easy-to-read, color-coded gas modules enhance identification and quick response during critical situations.

Upgrade your medical gas monitoring capabilities with the Combination Alarm Panel, ensuring safety and compliance while providing essential information for optimal patient care.

Medical Gas Alarms - Combination Alarm Panel Specifications

• Dimensions:

• Width: 12 in (30.5 cm)

• Height: 8 in (20.3 cm)

• Depth: 4 in (10.2 cm)

• Weight:

• 5 lbs (2.3 kg)

• Power Supply:

• Voltage: 120/240 VAC

• Frequency: 50/60 Hz

• Alarm Types:

• Visual Alarm: LED Indicator Lights

• Audible Alarm: Buzzer with adjustable volume

• Gas Types Monitored:

• Oxygen (O2)

• Nitrous Oxide (N2O)

• Medical Air

• Vacuum

• Detection Range:

• Oxygen: 19% - 23%

• Nitrous Oxide: 0 - 1000 ppm

• Medical Air: 18% - 22%

• Vacuum: -30 inHg to -100 inHg (-101.5 kPa to -335.6 kPa)

• Alarm Levels:

• Low-level Alarm: 19% O2 (± 1%)

• High-level Alarm: 23% O2 (± 1%)

• Alarm Delay: Adjustable (0-90 seconds)

• Communication Outputs:

• Relay Outputs: SPDT (Single Pole Double Throw)

• Remote Alarm Connections: Yes, multiple outputs

• Mounting Options:

• Surface Mount

• Flush Mount

• Environmental Conditions:

• Operating Temperature: 32°F to 120°F (0°C to 49°C)

• Humidity: 10% to 90% RH, non-condensing

• Certification:

• UL Listed

• CE Marked

• Features:

• Test and Acknowledge Buttons

• Status Indicators for Each Gas

• User-friendly Interface
