Medical Gas Systems

Medical Gas Systems: Your Comprehensive Solution for Surgical Environments
Our Medical Gas Systems are designed to enhance operational efficiency and safety in healthcare settings. Featuring integrated vacuum systems, these setups ensure effective surgical suction and the safe evacuation of anesthetic waste gases from designated areas, providing a critical layer of protection for both patients and medical staff.
Integrated Vacuum Systems
Our self-regulated vacuum systems provide reliable suction capabilities, seamlessly evacuating anesthetic gases during surgical procedures. This enhances the overall safety and efficiency of your medical facility.
Advanced Pump Technology
The vacuum pump forms the heart of our medical gas systems, consistently regulating pressure throughout the network. Each pump is expertly sized to match the number of vacuum outlets specific to your clinic's layout, ensuring optimal performance tailored to your facility's square footage.
Efficient Vacuum Supply Outlets

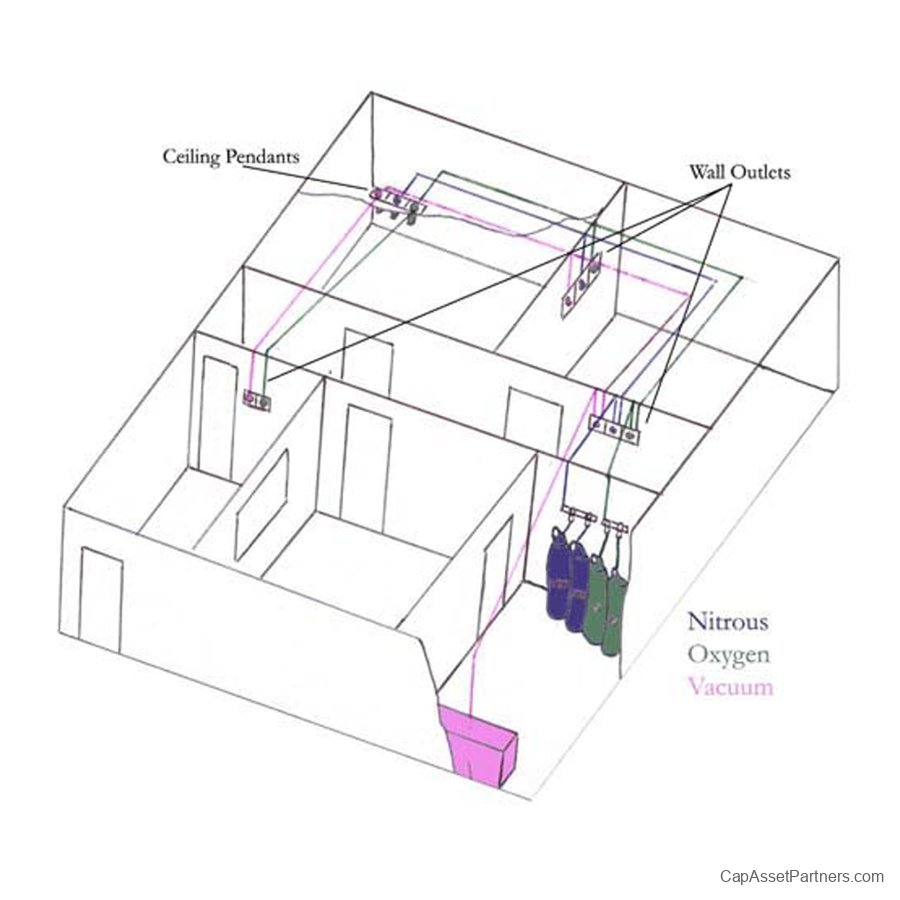

Our vacuum supply outlets are strategically designed for maximum accessibility and ease of use. Color-coded and uniquely sized fittings facilitate quick identification and connection. Available in both wall-mounted configurations and ceiling pendants, these outlets can be integrated stylishly into your space, enhancing both functionality and aesthetics.
Versatile Accessories
Wall-mounted vacuum outlets can be customized with vacuum regulators tailored for surgical or airway aspiration needs. Additionally, interfaces for waste gas management can intelligently regulate vacuum levels applied to anesthesia machines, ensuring precise control and further promoting safety during procedures.
Discover the importance of reliable Medical Gas Systems in optimizing your surgical environment, combining efficiency with advanced safety features tailored for healthcare professionals.

Medical Gas Systems Specifications

• Gas Types:

• Oxygen (O?)

• Medical Air

• Nitrous Oxide (N?O)

• Carbon Dioxide (CO?)

• Helium (He)

• Nitrogen (N?)

• Pipeline Specifications:

• Pipe Material: Copper (Type L, K)

• Pipe Diameter:

• ¾ in (19.05 mm)

• 1 in (25.4 mm)

• 1½ in (38.1 mm)

• Pipe Schedule: Schedule 40 or 80

• Pressure Specifications:

• Normal Operating Pressure:

• Oxygen: 50 psi (3.45 bar)

• Medical Air: 50 psi (3.45 bar)

• Nitrous Oxide: 50 psi (3.45 bar)

• Emergency Shutoff Pressure: < 25 psi (1.72 bar)

• Flow Specifications:

• Flow Meters: Capable of reading from 0 to 15 L/min (0 to 4.0 GPM)

• Regulators:

• Outlet Pressure: 50 psi (3.45 bar)

• Safety Relief Pressure: 75 psi (5.17 bar)

• Outlet Specifications:

• Outlet Types:

• Diameter: ½ in (12.7 mm) or 5/8 in (15.88 mm)

• Connection Type: DISS or AGSS

• Alarm Specifications:

• Low-Pressure Alarms:

• Set Point: 40 psi (2.76 bar)

• High-Pressure Alarms:

• Set Point: 75 psi (5.17 bar)

• Safety Features:

• Non-flammable warning signage

• Color coding:

• Oxygen: Green

• Nitrous Oxide: Blue

• Medical Air: Yellow

• Backflow Preventers: Installed at all connection points

• Testing and Maintenance:

• System Pressure Testing:

• Initial Test Pressure: 150 psi (10.34 bar) for 24 hours

• Leak Testing:

• Soap solution or electronic leak detectors

• Installation Considerations:

• Pipe Slope: Minimum 1% slope for drainage

• Minimum Clearance: 12 in (305 mm) for maintenance access

• Certification:

• Compliance with NFPA 99 and CGA standards.

• Documentation:

• As-built drawings required

• Maintenance logs for all components

• Special Considerations:

• Seismic restraints for systems in seismic-prone areas

• Corrosion-resistant coatings for outdoor installations

Note: The specifics may vary by jurisdiction and facility requirements. Always cross-reference with local regulations and standards.
