Manufactured by: Midmark Ritter

Category: Autoclaves

Midmark Ritter Midmark Ritter M7 Speedclave - Autoclave

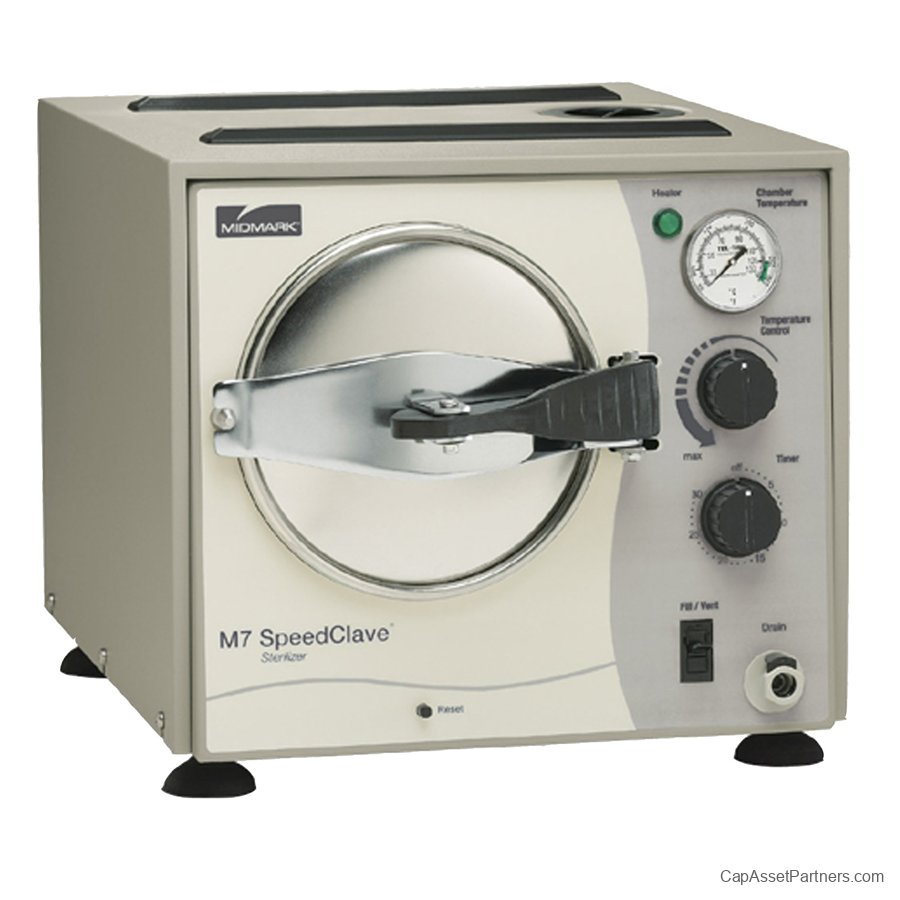

Midmark Ritter M7 Speedclave
  • Autoclave: Efficient Sterilization for Your Practice

The Midmark Ritter M7 Speedclave is the ultimate solution for healthcare professionals seeking a reliable and efficient manual autoclave at an exceptional value. This powerful sterilizer is designed to meet the demands of busy practices, providing effective sterilization for both wrapped and unwrapped instruments, linen packs, and glassware.
With its rapid sterilization cycles, the M7 Speedclave can sterilize unwrapped instruments in just 9 minutes from a cold start or in a remarkable 6 minutes when started hot. Renowned as the "workhorse of sterilizers," the M7 is built to last, ensuring that your investment continues to deliver exceptional performance over time.

Features


Safety Door: The M7 Speedclave includes a safety door that automatically seals under pressure, preventing accidental opening until the chamber has safely depressurized, ensuring operator safety.
Temperature Regulator: This feature allows you to preset the sterilization temperature between 250°F (121°C) and 270°F (132°C), with a built-in thermostat for precise temperature control, enhancing overall sterilization effectiveness.
Temperature Gauge: The easy-to-read temperature gauge provides continuous monitoring of the chamber temperature, graduated in two-degree increments ranging from 80°F (26.7°C) to 270°F (132°C).
Low Water Cut-out Switch: The built-in low water cut-out switch prevents damage from "dry burning" by ensuring that the M7 operates only when there is adequate water in the reservoir, thus extending the longevity of the heating element.
Cycle Timer: With a cycle timer adjustable from 0 to 30 minutes, the M7 automatically shuts off after the sterilization cycle is completed, allowing you to focus on other tasks without worry.
Front Draining Feature: The convenient front draining design simplifies maintenance and cleaning. All control elements and vital information are easily accessible from the front, streamlining usability.

Installation


The Midmark Ritter M7 Speedclave is compatible with laminate, stainless steel, or stone surfaces. For optimal operation, ensure there is a clearance of 2.5 inches (6.4 cm) on the sides and rear, and 12 inches (30.5 cm) above to facilitate filling the reservoir and cooling processed trays.
Experience the efficiency and reliability of the Midmark Ritter M7 Speedclave and elevate your sterilization process to new heights!
Midmark Ritter M7 Speedclave
  • Autoclave Specifications

General
  • Height: 12.81 inches (32.5 cm)
  • Width: 13.56 inches (34.4 cm)
  • Depth: 18.12 inches (46 cm)
  • Countertop Area: Minimum depth 16.5 inches (41.9 cm)
  • Chamber:
  • Diameter: 7.5 inches (19.1 cm)
  • Depth: 15 inches (38.1 cm)
  • Usable Volume: 2.4 gallons (9.0 liters)
  • Trays:
  • Two Large:
  • Dimensions: 12 (H) × 5.62 (W) × 0.88 (D) inches (30.5 × 14.3 × 2.2 cm)
  • One Small:
  • Dimensions: 12 (H) × 4.12 (W) × 0.88 (D) inches (30.5 × 10.5 × 2.2 cm)
  • Unit Weight: 30 lbs. (13.6 kg)
  • Shipping Weight: 39 lbs. (17.7 kg)
  • Water Reservoir Capacity: 1.31 gallons (4.9 liters)
  • Electrical Requirements:
  • 120 VAC, 60 Hz, 10 AMPS Single Phase
  • 220-240 VAC, 50 Hz, 5 AMPS
  • 100 VAC, 60 Hz, 12 AMPS
  • 120 VAC has 1136 watt tubular immersion heater, UL and CUL Listed, CSA Certified
