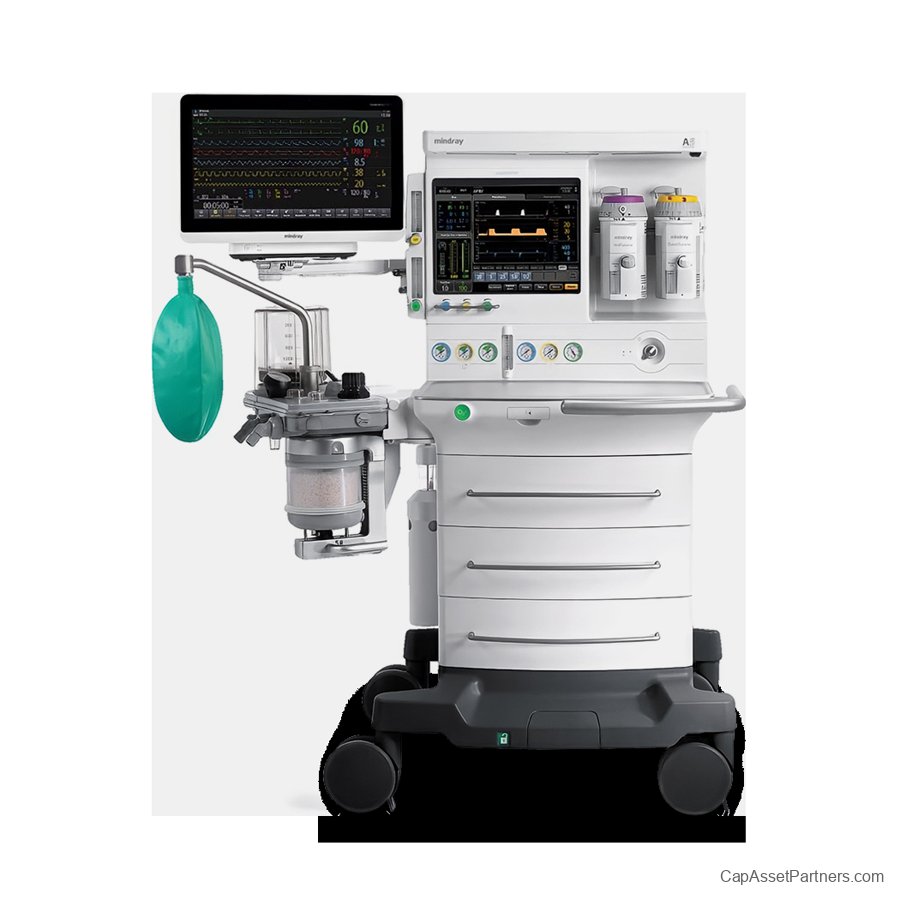

Mindray A5 Anesthesia Machine – Advanced Anesthesia Solution for Modern Clinicians
The Mindray A5 Anesthesia Machine is meticulously designed to enhance the clinical environment by offering a blend of advanced features and ease of use. Ideal for today's healthcare professionals, this cutting-edge device boasts a 15-inch color touchscreen that simplifies navigation through various ventilation modes. With a focus on patient care, the A5 allows caregivers to devote more time to their patients while ensuring effective and safe anesthesia management.
This state-of-the-art machine supports a wide array of ventilation modes tailored for diverse clinical needs, including:

• Volume Control Ventilation (VCV)

• Pressure Control Ventilation (PCV)

• Synchronized Intermittent Mandatory Ventilation (SIMV-VC, SIMV-PC)

• Pressure Support (PS)

• Manual Ventilation

The A5's graphical user interface allows for rapid adjustments and clear oversight, featuring two large waveform displays that provide real-time insights into pressure, flow, and spirometry loops. The electronically controlled PEEP (Positive End-Expiratory Pressure) further enhances patient safety and comfort during procedures.
Key features of the Mindray A5 include:

• Virtual flow tubes for precise gas delivery readings.

• A work table light that increases visibility for healthcare providers.

• Mounting rails for easy integration with external patient monitoring systems.

• Versatile gas supply connections, accommodating both cylinders and central pipeline supplies.

• An innovative heated breathing system complete with adjustable swivel and APL (Adjustable Pressure Limiting) valve.

• A robust stainless steel work surface that combines durability with practicality.

• Automatic leak detection technology to bolster operational safety.

• USB mouse support for added flexibility in operation.

For those looking to optimize their anesthesia workflow, the Mindray A5 Anesthesia Machine stands out as a reliable and efficient solution, ensuring unparalleled performance in the operating room. Upgrade options for networking enhance its connectivity within advanced medical systems, facilitating seamless data exchange in an HL7 format compatible with EMR systems.

Mindray A5 Anesthesia Machine Specifications

Physical:

• Dimensions: 55.1" (140 cm) H x 41.3" (105 cm) W x 31.7" (80.5 cm) D

• Weight: 331 lbs (150 kg) without vaporizers and gas cylinders

• Work Surface: 26" (61.6 cm) W x 15" (38 cm) D x 33.5" (85 cm) H

• Top Shelf Dimensions: 26" (61.6 cm) W x 15" (36.2 cm) D

• Top Shelf Weight Capacity: 88 lbs (40 kg)

• Side Mounting Rails: Supports weight of 55 lbs (25 kg) at a maximum distance of 1.34 ft (0.41 m)

• Bag Arm: 12.3" (31.2 cm) L x 45.3" (115 cm)

• Bag Arm Swiveling Angle: 150 ± 10°

• Drawers (Internal Dimensions): 5.3" (13.5 cm) H x 17.3" (44 cm) W x 15.2" (38.5 cm) D

• Caster Diameter: 6" (15 cm)

• Brake: Central brake with lock/unlock indicator

Environmental:

• Operating Temperature: 50 to 104°F (10 to 40°C)

• Storage Temperature: -4 to 140°F (-20 to +60°C)

• Oxygen Sensor Operating Range: -20 to +50°C

• Humidity (Operating and Storage): 15 to 90% RH, non-condensing

• Atmospheric Pressure (Operating): 70 kPa to 106.7 kPa

• Atmospheric Pressure (Storage): 50 kPa to 106.6 kPa

Electrical:

• Power Supply Input Voltage: 100 to 120 VAC @ 50/60 Hz

• Power Supply Input Current: 12 A maximum for A5 unit, 10 A maximum for A5 auxiliary outlets

• Power Consumption: Approx. 200 VA (not including auxiliary outlets)

• Power Cord Length: 5 ± 0.05 m

• Battery Type: 2 Sealed Lithium-ion, 11.1 V, 4.5 Ah

• Battery Charge Time: 8 hours maximum from an initial charge of 10% (new battery)

• Battery Charging: Occurs whenever AC is applied

• Number of Outlets: 4

• Output Voltage: Corresponds to power supply input voltage

• Output Current (each auxiliary outlet): 3 A

• Total Output Current: 10 A

• Breaker Rating per Auxiliary Outlet: 3 A

• Breaker Rating Total: 10 A

• Communication Port (SP1): DB9 male connector, non-isolated output serial RS232C interface

• Network Port (CS1): RJ-45 network port

• USB Ports (SP1, SP2): Caution: Only connect Mindray approved USB storage devices and supported USB mice in system version 02.01.00 and higher

• Data Port (DP1): Test port for calibration equipment connection by a Mindray-authorized service representative.
