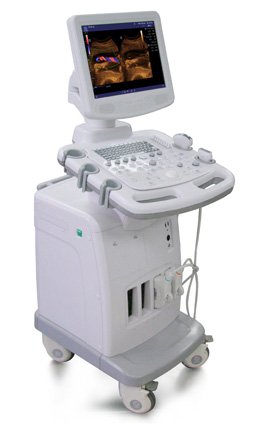

Mindray DC-3 Ultrasound

Mindray DC-3 Ultrasound: Versatile Imaging Solutions for Healthcare Professionals
The Mindray DC-3 Ultrasound system is a cutting-edge diagnostic tool designed to enhance clinical efficiency and improve patient outcomes. Ideal for a wide range of medical applications including OB/GYN, abdominal, vascular, and urology assessments, this advanced ultrasound system combines versatility with ease of use.
Applications:

• OB/GYN

• Abdominal

• Vascular

• Urology

Key Standard Features:

• Comprehensive imaging capabilities, including 2D, PW Doppler, HPRF Doppler, Power Doppler, and Colorflow imaging modes, ensuring precise diagnostics.

• Advanced measurement and calculation software packages streamline workflow and enhance productivity.

• A high-resolution 15" TFT monitor provides clear and detailed imaging, crucial for accurate assessments.

• Directional Power Doppler and Tissue Harmonic Imaging (THI) technology optimize image quality for improved visualization.

• Trapezoid Imaging expands the field of view, facilitating detailed scans.

• iTouch automatic image optimization effortlessly adjusts settings, ensuring top-quality images with minimal user intervention.

• Convenient CD-R/W and USB ports for easy data storage and transfer.

Optional Features:
The Mindray DC-3 can be customized with optional features that include:

• DICOM 3.0 Networking for seamless integration with existing hospital information systems.

• Smart 3D and Real-Time 4D Volumetric Imaging for enhanced visualization of complex anatomical structures.

• Cardiac Package featuring CW Doppler and EKG Module, making it suitable for comprehensive cardiac assessments.

• iScape Panoramic Imaging for capturing expansive views in a single image, perfect for specific diagnostic challenges.

Equip your medical facility with the Mindray DC-3 Ultrasound system to leverage its advanced technologies and versatile applications, ensuring exceptional care and precise diagnostic capabilities.

Mindray DC-3 Ultrasound Specifications:

• Imaging Modes:

• 2D

• M-Mode

• Color Doppler

• Power Doppler

• Pulsed Wave Doppler

• Display:

• Screen Size: 15-inch (38.1 cm) LCD

• Resolution: 1024 x 768 pixels

• Frequency Range:

• Linear Probes: 5.0 - 12.0 MHz

• Convex Probes: 2.0 - 6.0 MHz

• Phased Array Probes: 1.0 - 5.0 MHz

• Dimensions:

• Weight: 25.3 lbs (11.5 kg)

• Dimensions (W x D x H): 15.0 x 11.0 x 5.7 in (38.1 x 27.9 x 14.5 cm)

• Power Supply:

• Voltage: 100-240 V AC

• Frequency: 50/60 Hz

• Battery:

• Rechargeable Lithium-ion, up to 2 hours of operation

• Storage:

• Internal Hard Drive: 500 GB

• USB Ports: 2 x USB 2.0

• Connectivity:

• Ethernet

• DICOM

• Software Features:

• Auto image optimization

• Comprehensive measurement packages

• User Interface:

• Touch screen

• Customizable user presets

• Ports:

• Video Output: HDMI

• Footswitch input

• Environmental Conditions:

• Operating Temperature: 50°F to 104°F (10°C to 40°C)

• Humidity: 30% to 85% non-condensing

• Compliance:

• CE Marked

• FDA Cleared

This information reflects the basic parameters of the Mindray DC-3 Ultrasound system. For more detailed information about specific models or configurations, consulting the manufacturer’s documentation is recommended.
