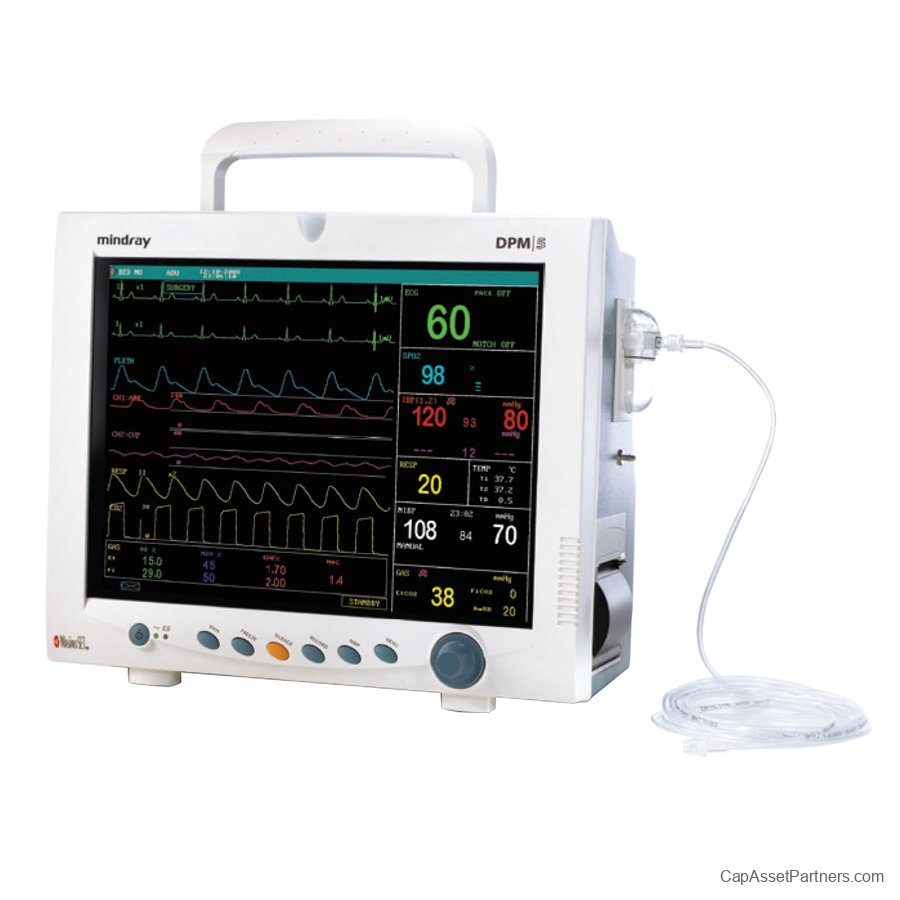

Mindray DPM5 Patient Monitor: The Ultimate Solution for Versatile Patient Monitoring

The Mindray DPM5 Patient Monitor is a highly portable, easily configurable device designed to meet the unique needs of your healthcare facility. Weighing just over 10 pounds, this monitor allows for seamless transport between rooms, ensuring that patient monitoring is efficient and accessible.

Featuring an intuitive front panel with quick-action keys, the Mindray DPM5 enables operators to swiftly set up and start monitoring. Its vibrant 12.1-inch TFT color display accommodates up to eight waveforms, facilitating thorough data analysis across various parameters including 3 to 5-lead ECG, NIBP, Nellcor® Oximax® SpO2, pulse rate, respiration, dual-channel invasive blood pressure, and dual-channel temperature. Additional capabilities such as EtCO2 measurement along with arrhythmia and ST analysis are available, providing critical insights into patient conditions.

Key Features

Whether for acute care settings or outpatient environments, the Mindray DPM5 Patient Monitor stands out as a premier choice for healthcare professionals seeking reliable and versatile patient monitoring solutions.

Mindray DPM5 Patient Monitor Specifications

General

• Dimensions: 12.5" (318 mm) W x 10.6" (270 mm) H x 5.4" (137 mm) D

• Weight (standard configuration): 10.3 lbs (4.7 kg)

• Display: 12.1" (307 mm), color TFT LCD

• Recorder: Thermal dot array

• Power Supply: 1 AC power connector

• Network: 1 standard RJ45 network connector, 100 BASE-TX

• VGA: 1 standard color VGA monitor connector, 15-PIN D-sub

• Auxiliary Output: 1 BNC connector

• Equipotentiality: 1 equipotential grounding connector

• Wireless Capability: IEEE 802.11g, WiFi compatible

Environmental

• Operating Temperature:

• 32 - 104°F (0 - 40°C)

• 41 - 95°F (5 - 35°C) with CO2 module

• 50 - 95°F (10 - 35°C) with AION AG module

• Operating Humidity: 15 to 95%, non-condensing

• Operating Altitude:

• -1640 to 15092 ft (-500 to 4600 m)

• -1000 to 9889 ft (-305 to 3014 m) with CO2, AG, or Nellcor SpO2 Module

• Storage Temperature: -4 to 140°F (-20 to 60°C)

• Storage Humidity: 10 to 95%, non-condensing

• Storage & Transportation Altitude:

• -1640 to 15092 ft (-500 to 13100 m)

• -1000 to 20000 ft (-305 to 6096 m) with CO2, AG, or Nellcor SpO2 module

Power

• Input Voltage: 100 to 240V ~

• Current: 1.4A to 0.6A

• Frequency: 50/60Hz

• Fuse: T 3 A, 250 V

• Battery: 2 Sealed lead-acid batteries or lithium-ion battery
