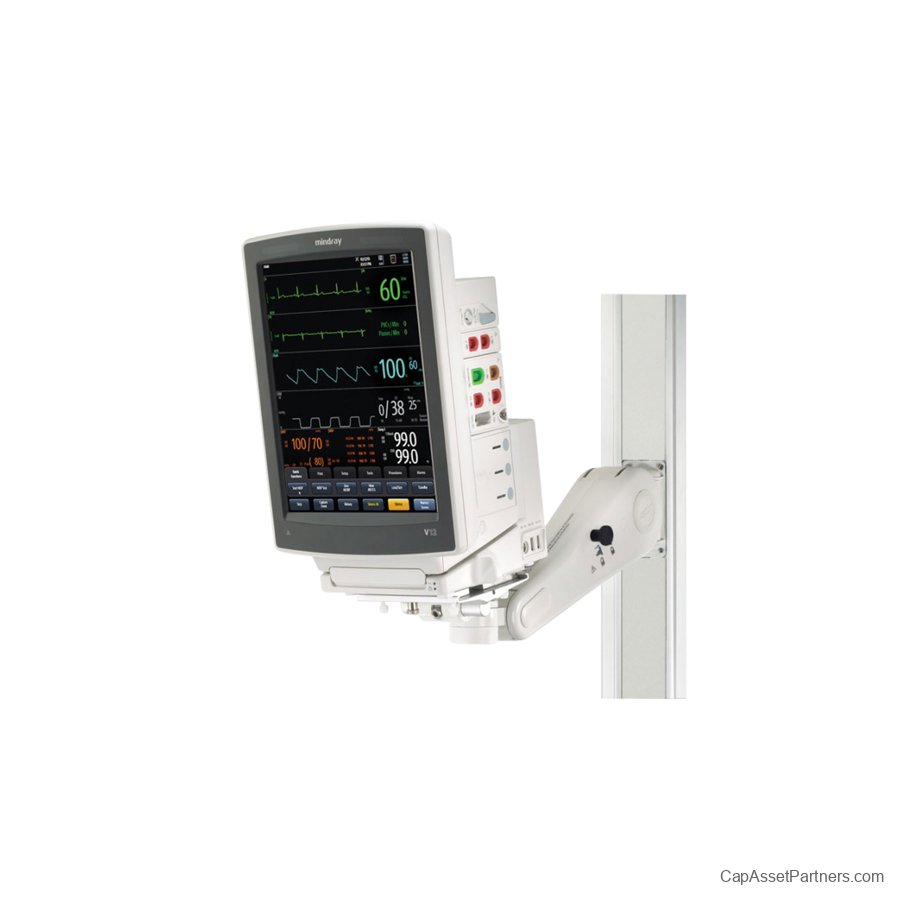

Mindray V12 Patient Monitor: A Modular Solution for Patient Care

The Mindray V12 Patient Monitor is a versatile, state-of-the-art device designed to meet the dynamic needs of modern healthcare environments. Its modular design makes it fully scalable, allowing it to adapt effortlessly to various clinical applications. Whether used as a bedside monitor or for patient transport, medical staff can easily detach the V12 from the VDock without the hassle of disconnecting cables or moving modules, ensuring a seamless transition during critical moments.

Key Features

• Comprehensive monitoring capabilities, including ECG, NIBP, HR, IBP, TEMP, SpO2, and CO2.
• Integrated module bay provides flexibility and fosters an efficient workflow.
• Designed for dual functionality as both a bedside and transport monitor.
• Scalable modular design tailored to meet the specific requirements of each healthcare unit.
• Interchangeable system elements enhance convenience and cost-effectiveness.
• Wireless capability for enhanced connectivity and data sharing.
• Color-coded connectors simplify setup and ensure quick identification under pressure.
• Unique key-code feature aids clinicians in promptly responding to any changes in patient status.

Invest in the Mindray V12 Patient Monitor to elevate your patient care capabilities with innovative technology that prioritizes both adaptability and efficiency. This advanced monitoring solution is ideal for facilities seeking to optimize their medical equipment without compromising on performance or reliability.

Mindray V12 Patient Monitor Specifications

Display:

• Type: 12.1 in (30.7 cm) color TFT touchscreen display

• Resolution: 1024 x 768

• Aspect ratio: 3:4 in portrait mode

• Waveforms: 8 selectable

Physical Dimensions:

• Height: 13.7 in (34.8 cm)

• Width: 9.4 in (23.9 cm)

• Depth: 7.5 in (19.1 cm)

• Weight: 8.9 lb (4 kg)

• Weight (with module and 3 batteries): 13 lb (5.9 kg)

Heart Rate Meter:

• Measurement Range - Adult/Pediatric: 30 – 300 bpm

• Measurement Range - Neonate: 30 – 350 bpm

• Resolution: 1 bpm

• Accuracy:

• 30 – 250 bpm: ±3 bpm or ±3%, whichever is greater

• 251 – 350 bpm: ±5%

ST Segment Analysis:

• Adult/Pediatric Only

• Measurement Range: -10.0 mm to +10.0 mm (-1000 ?V to +1000 ?V RTI)

• Resolution: 0.1 mm (10 ?V)

• User Selectable ST Measurement Points: 40, 60, or 80 ms after the J point (HR independent); 60/80 HR dependent

Respiration (ECG):

• Measurement Range: 4 – 199 rpm

• Resolution: 1 rpm

• Accuracy:

• 4 – 150 rpm: ±2 rpm or ±2%, whichever is greater

• 155 – 199 rpm: ±4%

• Sensing Lead: II or I (default: lead II)

• Sweep Speed: 3.125, 6.25, 12.5, 25 mm/sec

Respiration (CO2):

• Measurement Range: 0 – 150 rpm

• Resolution: 1 rpm

• Accuracy:

• 0 – 70 rpm: ±1 rpm

• 71 – 120 rpm: ±2 bpm

• 121 – 150 rpm: ±3 bpm

Non-Invasive Blood Pressure:

• Measurement Method: Oscillometric

• Measurement Modes: Manual, Interval, Stat

• Static Pressure Range: 0 – 300 mmHg

• Accuracy: ±3 mmHg

Invasive Blood Pressure:

• Resolution: 1 mmHg

• Accuracy: ±2 mmHg or 2% of the signal value, whichever is greater (excluding transducer)

• Zero Offset Range: ±120 mmHg

• Zero Accuracy: ±1 mmHg

• Excitation: 5 Volts DC, ±2%

• Frequency Response:

• 8 Hz ±1 Hz

• 12 Hz ±1 Hz

• 16 Hz ±1 Hz (-3 dB Point)

Pulse Oximetry

• Masimo SET SpO2:

• Resolution: 1%

• Accuracy:

• Adult: ±2% with no motion | ±3% during motion

• Pediatric: ±2% with no motion | ±3% during motion

• Neonate: ±3% with no motion | ±3% during motion

Pulse Oximetry

• Nellcor OxiMax SpO2:

• Resolution: 1%

• Accuracy:

• 70–100% ±2% for various sensors (detailed specifications vary by sensor type)

Temperature:

• Unit of Measure: Selectable °C or °F

• Measurement Range: 15 – 45 °C (inclusive) | 59 – 113 °F (inclusive)

• Resolution: 0.1 °C, 0.1 °F

• Accuracy:

• ±0.1 °C (15 – 45 °C), exclusive of probe errors

• ±0.2 °F (59 – 113 °F), exclusive of probe errors

CO2 Microstream™ Module:

• Measurement Range: 0 – 99 mmHg (inclusive, at sea level)

• Accuracy:

• 0 – 38 mmHg: ±2 mmHg

• 39 – 99 mmHg: ±(5% of reading + 0.08% for every 1 mmHg above 38 mmHg)

• Flow Rate: 50 ml/min -7.5 +15 ml/min

Environmental Conditions:

• Storage/Transport Temperature: -20 – 60 °C (-4 – 140 °F)

• Storage/Transport Humidity: 10 – 95%, non-condensing

• Storage/Transport Altitude: 1060 – 570 hPa

• Operating Temperature: 5 – 40 °C (41 – 104 °F)

• Operating Humidity: 15 – 95%, non-condensing

• Operating Altitude: 1060 – 700 hPa

Electrical Ratings:

• Battery Type: Lithium Ion

• Number of Batteries: 3

• Battery Voltage: 11.1 V

• Battery Capacity: 4800 mAh

• Battery Runtime: 4 hours with three fully charged batteries while monitoring multiple parameters

• Battery Recharge Time: 4 hrs maximum
