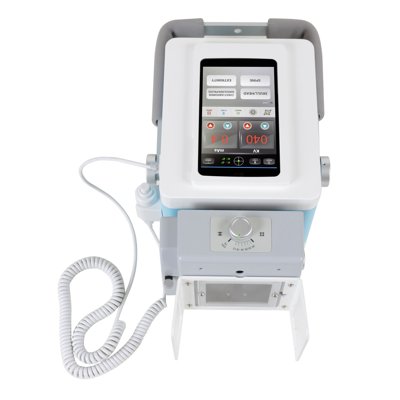

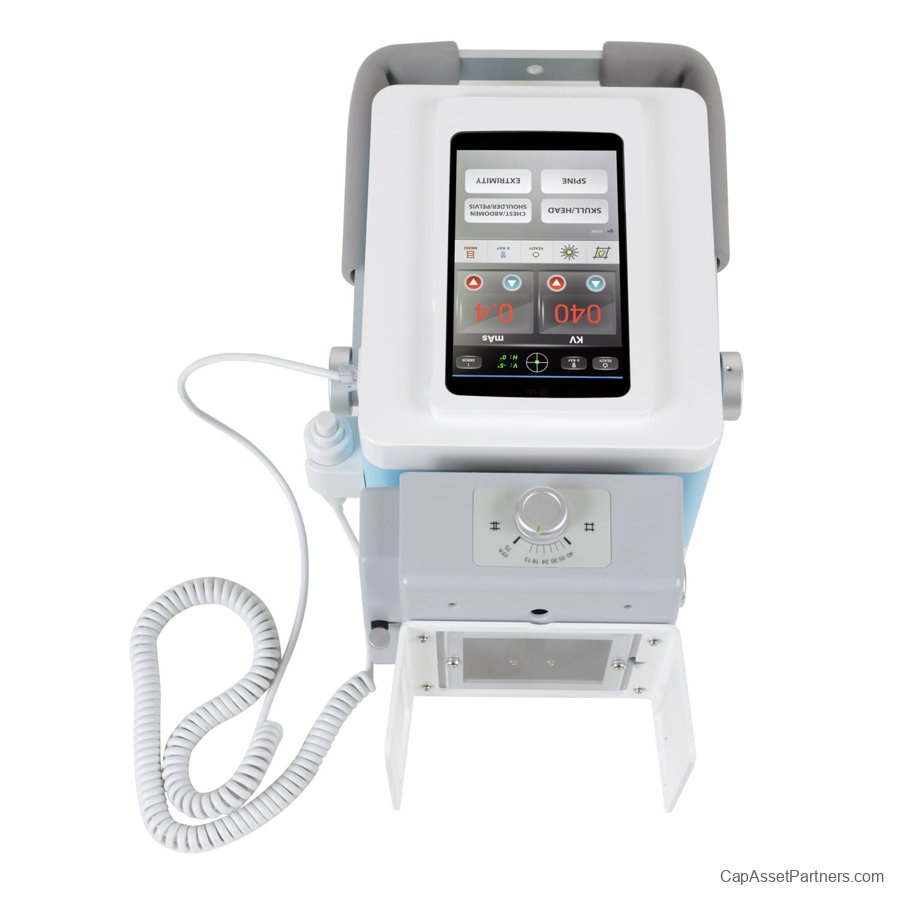

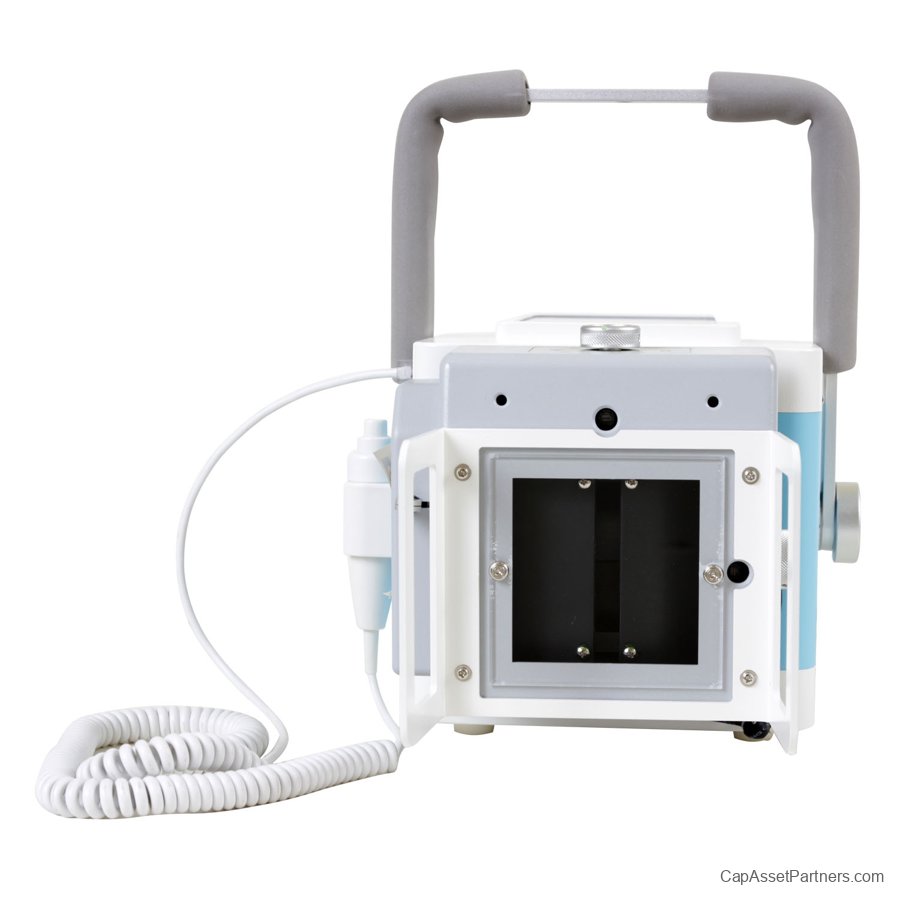

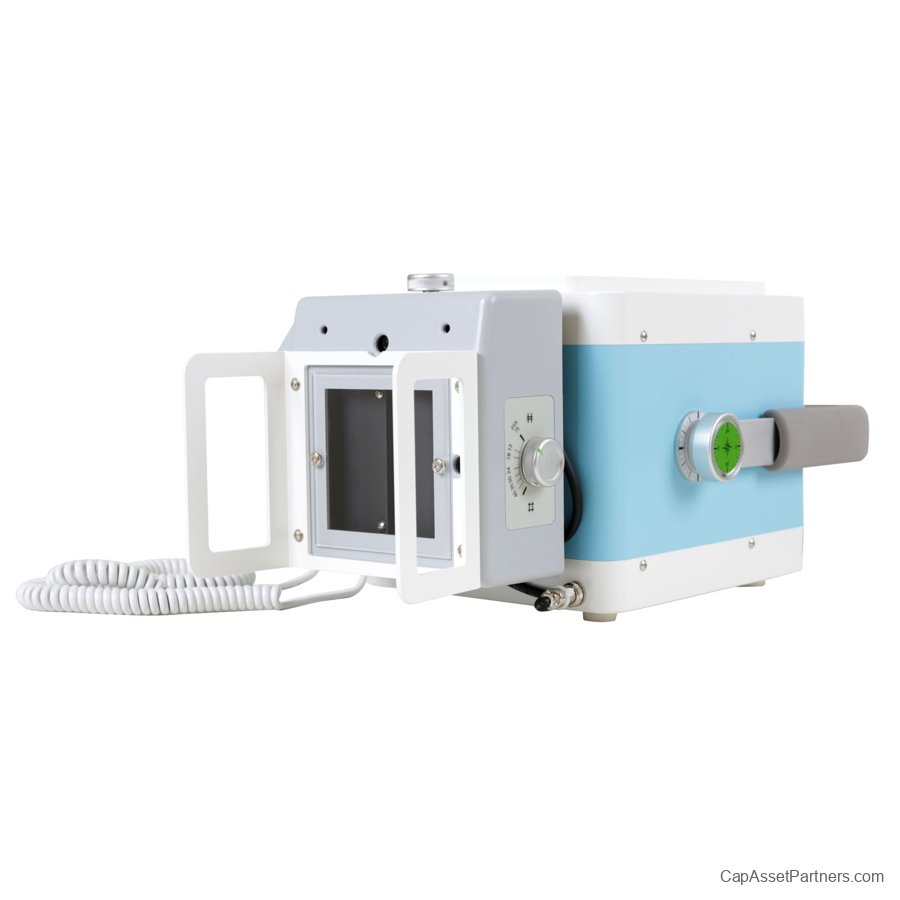

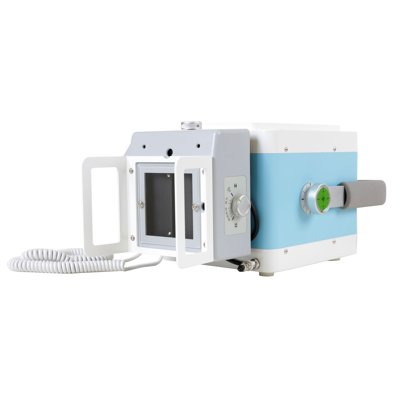

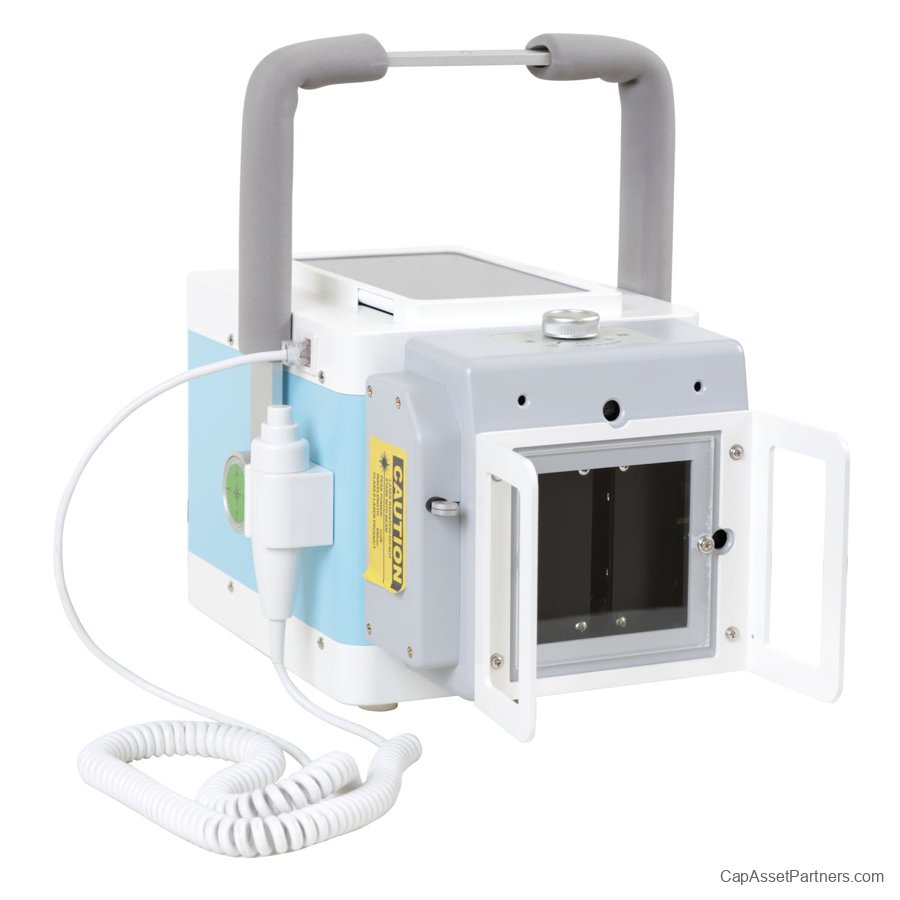

Mini Digital X-Ray Generator

Smart, Portable Mini Digital X-Ray Generator

The Mini Digital X-Ray Generator is a cutting-edge imaging solution, designed for healthcare professionals seeking portability without compromising on quality. This innovative device delivers exceptional imaging quality, ensuring accurate diagnostics and reliable results, making it an essential tool for various medical applications.

Features

This Mini Digital X-Ray Generator seamlessly combines portability and advanced technology, making it ideal for both clinical and field settings. Experience the future of imaging with this compact and efficient solution.

• Max Output Power: 1.6 kW

• Generator Frequency: 100 kHz

• kV Range: 40 ~ 90 kV

• mA Range: 12 ~ 30 mA

• mAs Range: 0.4 ~ 100 mAs

• Focal Spot: 1.2 mm x 1.2 mm (0.047 in x 0.047 in)

• Target Angle: 19°

• Anode Heat Storage: 10 kHU

• Input Voltage: 110 V / 220 V

• Phase / Frequency: Single / 50 ~ 60 Hz

• Dimensions: 13.2 in x 6 in x 6.7 in (335 mm x 152 mm x 170 mm)

• Packing Size: 20.5 in x 15.8 in x 13 in (520 mm x 400 mm x 330 mm)

• Net Weight: 15 lb (6.8 kg)

• Gross Weight: 44 lb (20 kg)

• Type: Two-step x-ray exposure hand switch

• Working Voltage (AC/DC): 125 V / 30 V

• Working Current (AC/DC): 1 A / 2 A

• Arm Angle: 0° ~ 150°

• Max Arm Vertical Height: 4.6 ft (1.4 m)

• Maximum Load Capacity: 66.1 lb (30 kg)

• Wheel Size: 50 mm (2 in), 0.9 in (22.86 mm)

• Weight (Mobile Stand): 25.6 lb (11.6 kg)
