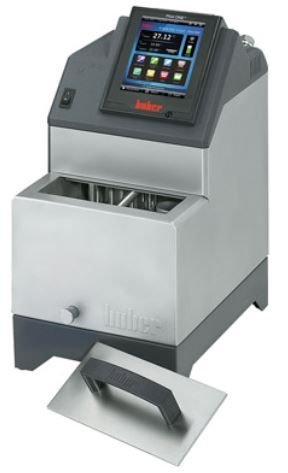

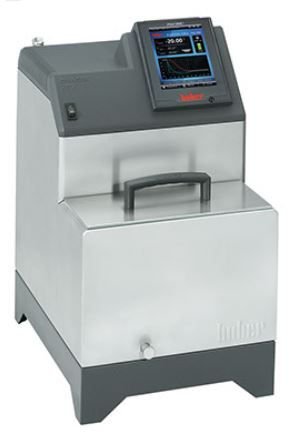

Ministat Heating and Cooling Bath Circulators
The Ministat Heating and Cooling Bath Circulators are designed for precise temperature control, ensuring optimal performance for varied laboratory applications. These innovative circulators are equipped with advanced features that protect sensitive glass reactors and apparatus from breakage through a maximum pressure regulation system with an optional pressure sensor.
Key Features:
- Pilot ONE Controller: Comes standard with the Pilot ONE controller, featuring Plug & Play technology and a vibrant 5.7" color TFT touchscreen display for seamless interaction.
- Intuitive Operation: The user-friendly navigation menu and favorites menu provide a smartphone-like experience, allowing for one-click operation of essential functions and integrated technical glossary.
- Precision and Safety: Includes overtemperature and low level protection mechanisms, ensuring safe operation even in critical conditions, classified under Safety Class III/FL (DIN 12876).
- Efficient Connectivity: Equipped with integrated USB and Ethernet ports to facilitate connection to PCs or networks for remote control and data transmission.
- Powerful Pressure/Suction Pump: Designed to deliver consistent performance with a capable pressure/suction pump for optimal fluid circulation.
- Programmable Features: Comes with advanced programming capabilities, including calendar and clock functions for scheduling of operations.
- Two-Point Calibration: Allows users to calibrate the system for increased accuracy in temperature measurements.
Specifications:
| SKU |
Max Pressure |
Max Suction |
Power Requirement |
Controller |
Water Bath Dimensions |
| 2014.0012.01 |
0.7 bar |
0.4 bar |
110-120 V / 60 Hz |
Pilot ONE |
120 mm |
| 2015.0012.01 |
0.7 bar |
0.4 bar |
110-120 V / 60 Hz |
Pilot ONE |
135 mm |
| 2016.0018.01 |
0.7 bar |
0.4 bar |
208 V / 60 Hz |
Pilot ONE |
157 mm |
Additional Technical Info:
| SKU |
Width |
Depth |
Height |
Safety |
Type |
Refrigerant |
| 2014.0012.01 |
8.86 in |
14.57 in |
16.89 in |
III/FL |
Air Cooled |
R290 |
| 2015.0012.01 |
8.86 in |
17.72 in |
18.74 in |
III/FL |
Air Cooled |
R290 |
| 2016.0018.01 |
11.81 in |
18.31 in |
20.31 in |
III/FL |
Air Cooled |
R290 |
Compatible Fluids:
The Huber Heat Transfer Fluids are renowned for their superior thermodynamic properties and environmentally friendly characteristics. Choosing the correct fluid is essential to ensure efficient heat transfer, reliable operation, and optimal temperature control. Please refer to the compatibility chart for appropriate fluid selection.
