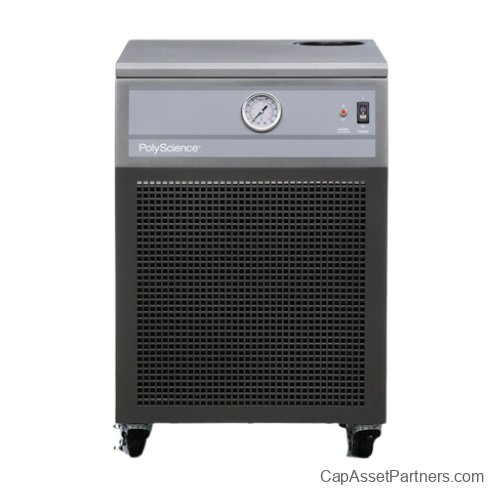

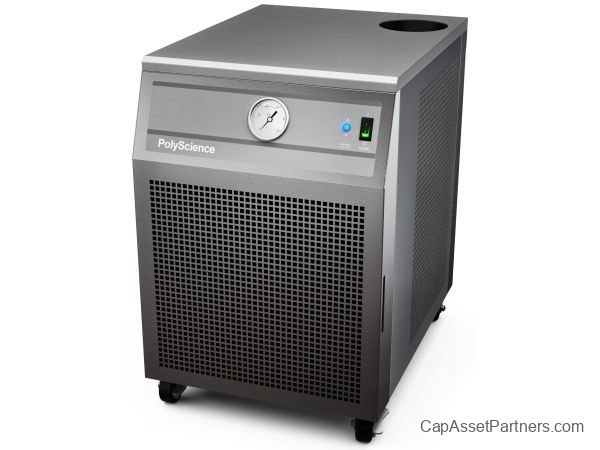

Model 3370 Liquid-to-Air Coolers
The Model 3370 Liquid-to-Air Coolers are engineered to provide efficient and quiet cooling solutions for various medical and industrial applications. These coolers are ideal for situations where the cooling fluid temperature is higher than ambient, effectively helping to maintain optimal operational conditions without extending control measures.
Key Features:
- Quiet operation ensures minimal noise disruption.
- Configured with a robust 1/3 HP positive displacement or turbine pump for reliable performance.
- Includes a built-in low liquid level indicator to prevent operational issues.
- Designed specifically for applications that do not require strict temperature control.
- Convenient screw-on cap reservoir cover for easy access and maintenance.
- A reservoir drain simplifies routine cleaning and fluid management.
Specifications:
| SKU |
Max Temperature |
Cooling Capacity |
Recirculating Pump Speed |
Ambient Temperature Range |
| 3370P9A11B |
35°C Ambient |
4000W @ 20°C |
Constant, Single Speed |
5°C to 70°C |
| 3370TBA11B |
35°C Ambient |
4000W @ 20°C |
Constant, Single Speed |
5°C to 70°C |
Additional Information:
| SKU |
Dimensions |
Power Requirement |
Connection Type |
| 3370P9A11B |
20.5 in x 15 in x 22.3 in |
120V, 60Hz |
1/2 in Female NPT |
| 3370TBA11B |
20.5 in x 15 in x 22.3 in |
120V, 60Hz |
1/2 in Female NPT |
