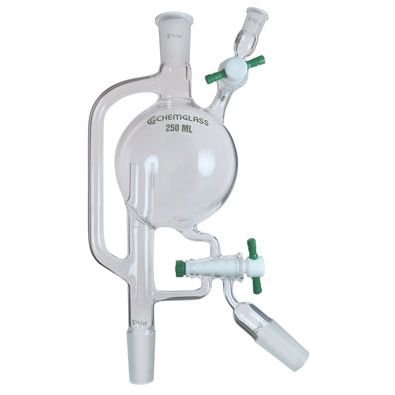

Modified Solvent Distilling Heads
Elevate your laboratory's distillation process with our Modified Solvent Distilling Heads, specially engineered to ensure the safe and efficient collection of distilled solvents in an inert atmosphere. Designed for ease of use and superior performance, this apparatus is an essential addition to any professional lab setting.
Key Features:
- Inert Atmosphere Maintenance: Designed to maintain distilled solvents in an inert atmosphere, minimizing contamination and ensuring high purity levels.
- Innovative Vapor Tube Design: The top of the main vapor tube is open, while an additional vapor tube has been incorporated to significantly reduce the risk of pressure buildup.
- Upper Sampling Port: Features a 4mm PTFE stopcock with a 14/20 outer joint, compatible with CG-3022 septa, allowing for easy sampling and manipulation of the solvent.
- Efficient Drainage: The lower drain is strategically centered to allow for total drainage of the storage head, ensuring all collected solvents can be utilized effectively.
- Flexible Removal Options: The double oblique 2mm bore PTFE stopcock on sizes ranging from 250mL to 1000mL facilitates straightforward removal of distilled solvent or the option to return it to the flask.
- Specialized for 250mL: The 250mL variant is equipped with a 4mm double oblique stopcock for enhanced functionality.
- Interchangeable Joints: Both the uptake tube and top outer joints are standardized at 24/40, while the take-off tube is customizable with either a 14/20 or 24/40 inner joint for versatile compatibility.
Specifications:
- Volume Options: Available in 250mL, 500mL, and 1000mL sizes to meet various laboratory needs.
- Material: Constructed from high-quality PTFE for durability and resistance to chemical interaction.
- Compatibility: Ideal for use in various distillation applications across multiple scientific fields.
With its innovative design and exceptional functionality, the Modified Solvent Distilling Head stands out as a reliable tool for your laboratory’s distillation needs. Streamline your workflow and elevate your results with this sophisticated piece of equipment!
