Moisture Test, Barrett, Distilling Receivers

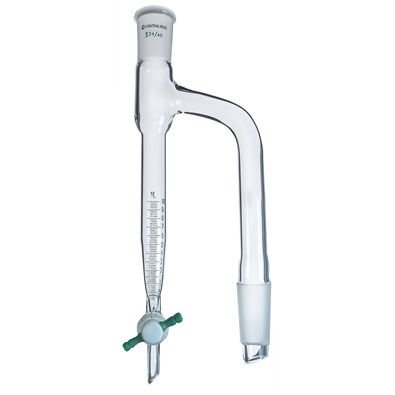

The Barrett Distilling Receiver is a critical tool for accurately determining the water content in petroleum or bituminous materials. Constructed to meet ASTM specifications, this high-quality receiver ensures precise measurements essential for laboratory analysis and industrial applications.
Key Features:
- Designed in the Barrett style for optimal performance.
- Essential for measuring moisture levels in petroleum derivatives.
- Manufactured according to rigorous ASTM standards for accuracy and reliability.
- Equipped with a top outer standard taper joint and a lower stopcock for secure operation.
- Varied volume measurements with precise subdivisions for detailed analysis:
- 2 mL model: Sub-divisions of 0.02 mL.
- 5 mL model: Sub-divisions of 0.20 mL.
- 10 mL model: Sub-divisions of 0.1 mL.
- 20 mL model: Sub-divisions of 0.2 mL from 0 to 3 mL and 0.5 mL from 3 to 20 mL.
Specifications:
| SKU |
Height |
Width |
| CG-1261-07 |
190 mm |
65 mm |
| CG-1261-11 |
275 mm |
95 mm |
| CG-1261-12 |
325 mm |
95 mm |
| CG-1261-20 |
225 mm |
95 mm |
| CG-1261-21 |
205 mm |
65 mm |
| CG-1261-22 |
190 mm |
65 mm |
| CG-1261-25 |
190 mm |
65 mm |
| CG-1261-26 |
275 mm |
95 mm |
| CG-1261-27 |
325 mm |
95 mm |
| CG-1261-35 |
325 mm |
95 mm |
