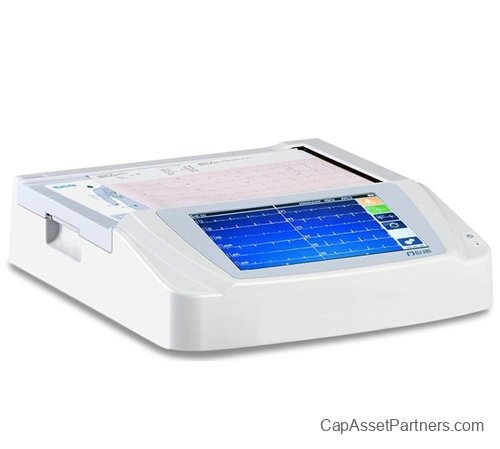

Mortara ELI 280 ECG Machine

Mortara ELI 280 ECG Machine

• Your Essential Portable ECG Solution

The Mortara ELI 280 ECG machine is a lightweight and user-friendly 12-lead resting electrocardiograph designed to assist medical professionals in diagnosing and monitoring heart conditions. By effectively recording the electrical activity of the heart at rest, this innovative device aids in accurate and reliable ECG interpretations for both pediatric and adult patients, ultimately enhancing patient care.
High-Quality & Innovative Design
Featuring a 10.1" high-resolution color touchscreen LCD, the ELI 280 offers an intuitive interface that displays up to 12 leads of ECG data, streamlining the review and diagnosis process. This widescreen design enhances navigation, simplifies data entry, and verifies electrode connections, making it ideal for use in hospitals, clinics, and various medical settings. Weighing just 13.9 lbs and measuring 15.55” L x 17” W x 4” H, its portability ensures convenience without compromising performance.
Accurate & Reliable Performance
Equipped with Mortara's Best 10 Technology, the ELI 280 ECG machine automatically selects the optimal ECG signal, providing the best 10 seconds of data from a five-minute internal full-disclosure segment. This advanced feature minimizes errors and enhances diagnostic accuracy, boasting a sampling rate of 40,000 samples per second per channel for exceptional detail and quality. The device is particularly effective for reliable pacemaker detection.
Seamless Information Exchange
The ELI 280 ECG machine supports bi-directional communication through USB, USB memory stick, internal modem, LAN, or wireless LAN. This connectivity facilitates effortless integration with Mortara's E-Scribe and third-party PACS systems via PDF, XML, UNIPRO32, and DICOM formats. Moreover, it connects to Mortara's ECG Safe cloud service, enabling easy access to PDF reports and efficient storage of ECG results, allowing healthcare providers to view and manage files from anywhere, at any time.
The Mortara ELI 280 ECG Machine is the perfect choice for medical professionals seeking a reliable, high-quality solution for effective cardiac assessments. Experience the benefits of advanced ECG technology designed to enhance patient outcomes.

Mortara ELI 280 ECG Machine Specifications:

• Type: 12-Lead Electrocardiograph

• Display:

• Type: Color LCD

• Size: 8.4 inches (21.3 cm) diagonal

• Dimensions:

• Width: 13.2 inches (33.5 cm)

• Height: 11.6 inches (29.4 cm)

• Depth: 5.9 inches (15 cm)

• Weight:

• 6.6 lbs (3 kg)

• Battery Life: Up to 6 hours of continuous operation

• Input Power:

• AC: 100-240 VAC, 50/60 Hz

• DC: 12 V

• ECG Acquisition:

• Sampling Rate: 1000 Hz

• Resolution: 12 bits

• Frequency Response: 0.05 Hz to 150 Hz

• Lead Configuration: 12 leads (Standard)

• Printing:

• Type: Thermal Printer

• Paper Width: 8.5 inches (216 mm)

• Print Speed: 25 mm/sec, 50 mm/sec (user selectable)

• Data Storage:

• Internal Memory: Stores up to 300 records

• Export Options: USB and wireless (if applicable)

• Arrhythmia Detection: Yes, with interpretation algorithm

• Connectivity:

• USB port

• Optional Wi-Fi

• Operating Conditions:

• Temperature: 50°F to 104°F (10°C to 40°C)

• Humidity: 10% to 90% (non-condensing)

• Accessories Included:

• Lead wires

• Electrodes

• Patient cable

• User manual

• Compliance:

• FDA cleared

• CE marked
