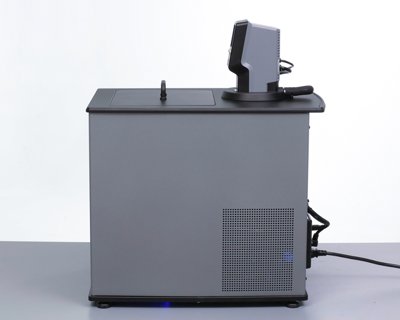

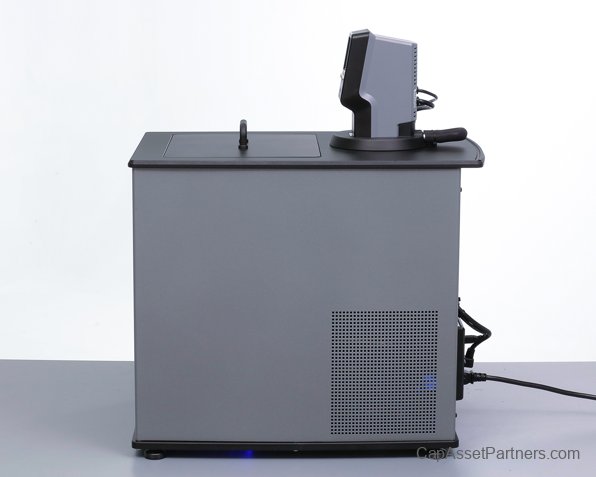

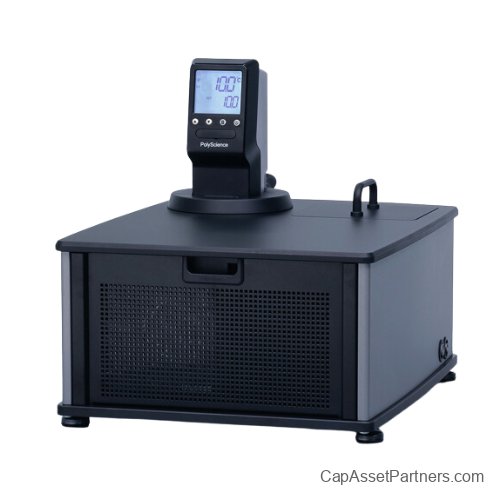

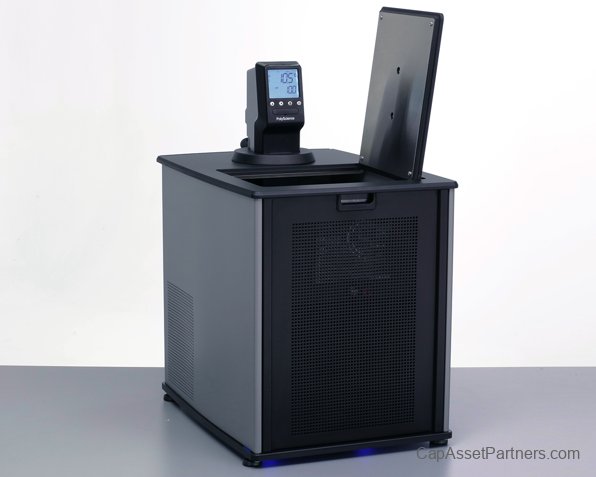

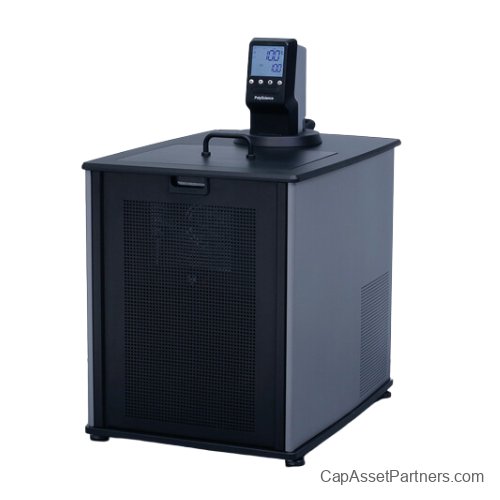

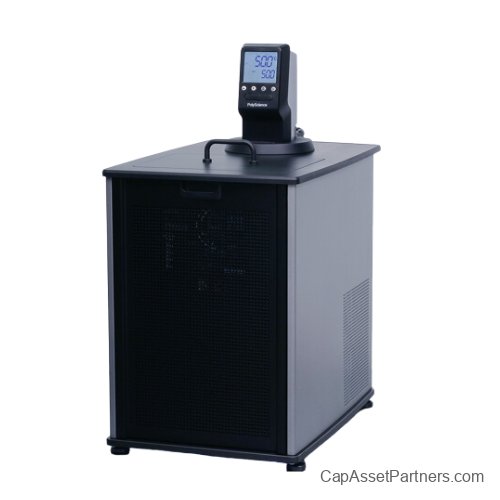

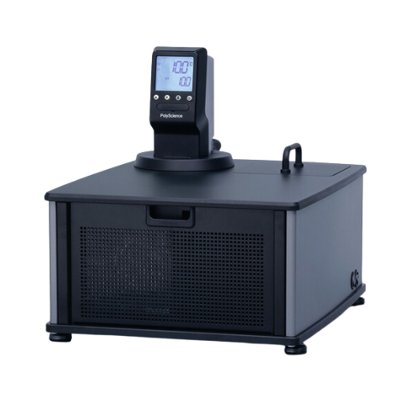

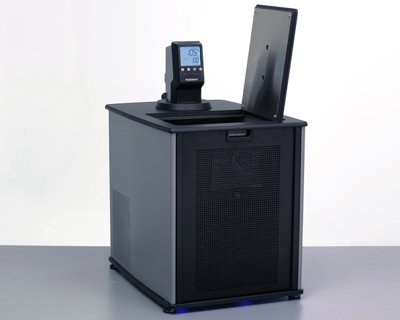

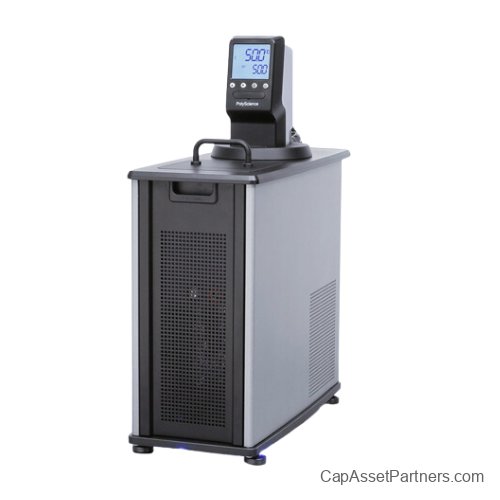

Introducing the MX Refrigerated/Heated Circulating Baths, an essential tool for laboratories and medical facilities seeking precision in temperature control. These baths are engineered for powerful circulation and user-friendly operation, ensuring reliable performance in various applications.
Key Features:
- Powerful circulation for consistent temperature uniformity
- Intuitive three control buttons for easy operation

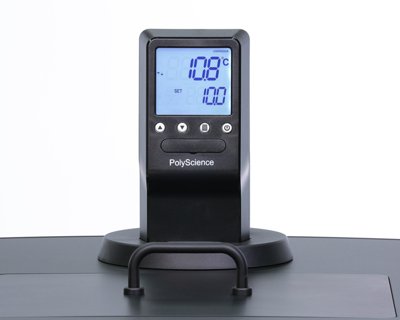

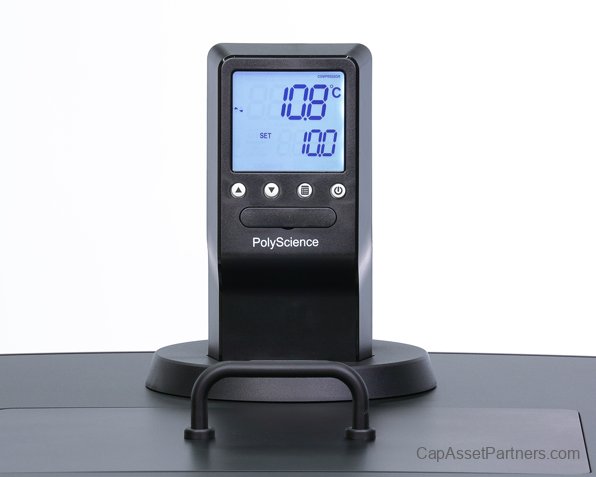

- Large screen displaying plain text prompts for enhanced readability
- Single point calibration capability for accurate temperature settings
- User-settable high-temperature safety for added peace of mind
- Comprehensive over-temperature and low-liquid protection to safeguard your experiments
- 1-speed pump designed to optimize fluid movement
- 1-point temperature calibration capability for precise adjustments
Specifications:
| SKU |
Display |
Internal Dimensions |
External Dimensions |
Refrigerant |
Max Temperature |
Flow Pressure |
| MX7LR-20-A11B |
3.25 in LCD |
6.18 in x 5.59 in x 5 in |
23.2 x 16.2 x 17.3 in |
R134a |
35°C |
12.8 LPM at 60Hz |
| MX07R-20-A11B |
3.25 in LCD |
6.18 in x 5.59 in x 5 in |
21.3 x 8.7 x 25.4 in |
R134a |
35°C |
12.8 LPM at 60Hz |
| MX15R-30-A11B |
3.25 in LCD |
8.35 in x 10.88 in x 5.5 in |
22.4 x 14.5 x 28 in |
R404A |
35°C |
12.8 LPM at 60Hz |
| MX20R-30-A11B |
3.25 in LCD |
9.85 in x 12.45 in x 5.5 in |
24 x 16.5 x 28 in |
R404A |
35°C |
12.8 LPM at 60Hz |
Additional Info:
| SKU |
Material |
Display Resolution |
Compliance |
Power Requirement |
Temperature Stability |
| MX7LR-20-A11B |
Stainless Steel |
0.1 |
ROHS, WEEE |
120V, 60Hz |
± 0.07°C |
| MX07R-20-A11B |
Stainless Steel |
0.1 |
ROHS, WEEE |
120V, 60Hz |
± 0.07°C |
| MX15R-30-A11B |
Stainless Steel |
0.1 |
ROHS, WEEE |
120V, 60Hz |
± 0.07°C |
| MX20R-30-A11B |
Stainless Steel |
0.1 |
ROHS, WEEE |
120V, 60Hz |
± 0.07°C |
