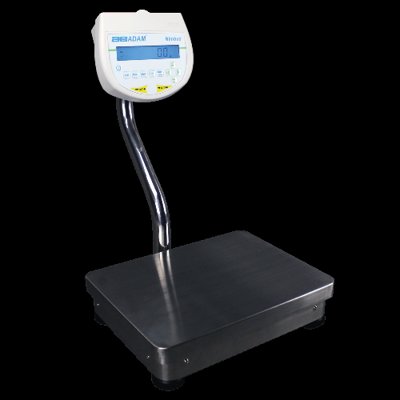

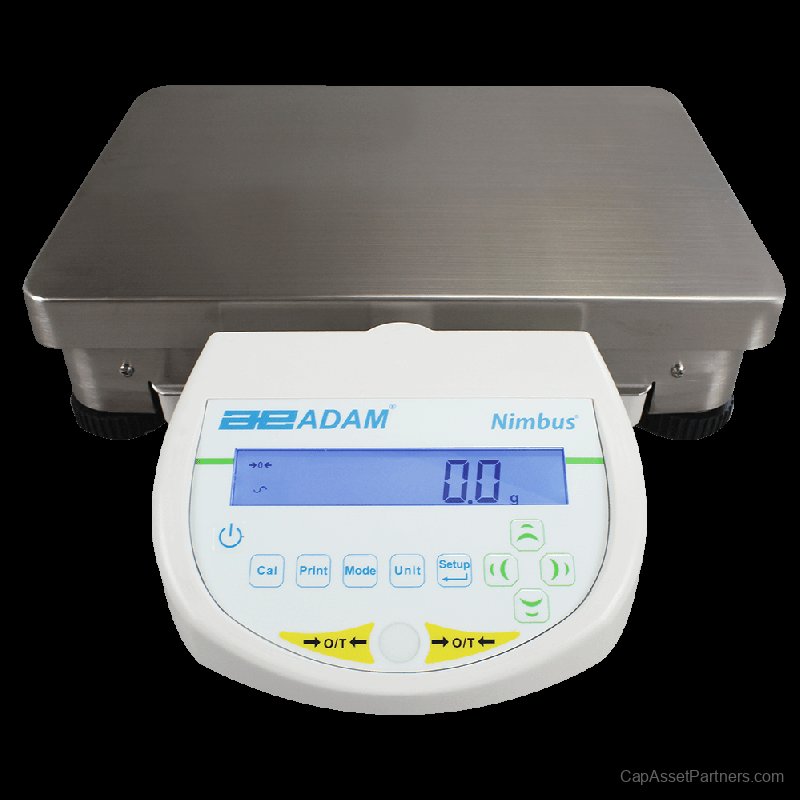

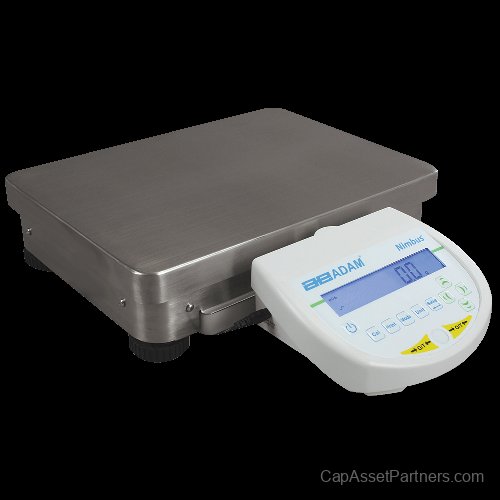

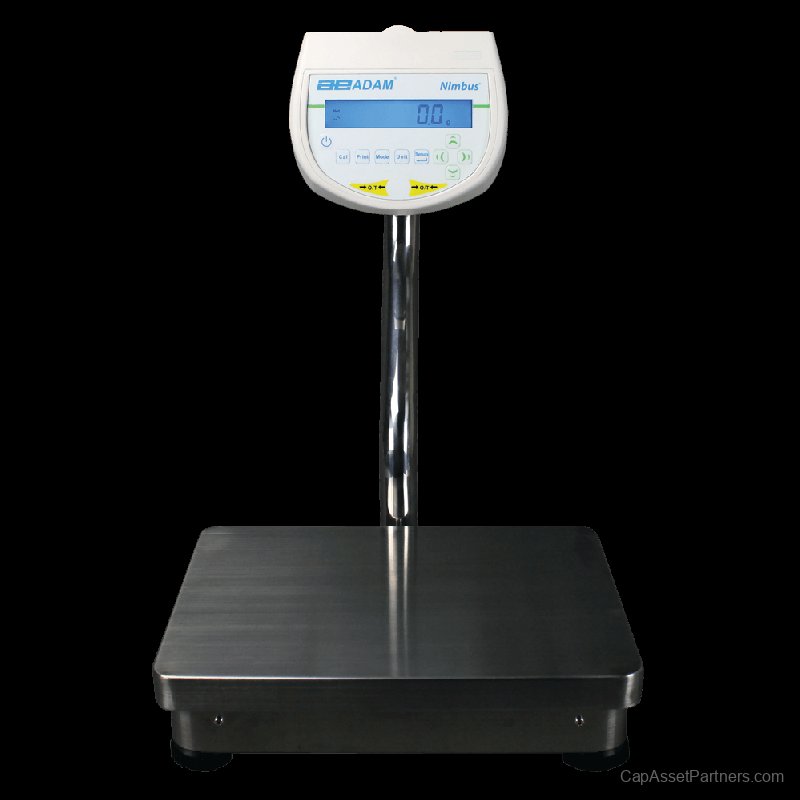

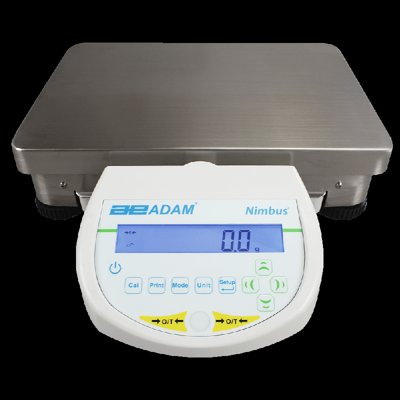

NBL Nimbus® Precision Balances (0.1g)
The NBL Nimbus® Precision Balances are thoughtfully engineered for superior performance while maintaining a compact design. Ideal for laboratories where space is a premium, these balances feature a single-piece construction that enhances stability, delivering highly repeatable and accurate results.
Key Features
With an innovative weighing sensor manufactured from a single block and minimal parts compared to traditional force motor balances, the Nimbus® excels in efficiency and durability. Its refined internal mechanism, crafted from hardened materials, is designed to withstand the rigors of laboratory operations.
Hardware Features:
- Color-coded keys for quick identification of frequently accessed functions
- Integrated level indicator and adjustable feet for precise setup
- Removable draft shield on models with 0.001g readability to minimize air current interference
- Sturdy metal housing to protect internal mechanisms in demanding settings
- Robust construction validated for industrial applications
- Sealed keypad to guard against dirt and liquid spills
- USB and RS-232 communication ports enable effortless connectivity with computers and printers
- Generously sized grade 304 stainless steel pan simplifies cleaning
- Bright, backlit LCD display ensures visibility in various lighting environments
- Lockdown device to secure balance functionality
Software Features:
- External calibration capability allows for precise verification and adjustments using standardized weights
- Printouts are date and time stamped, aligning with Good Laboratory Practices (GLP)
- Selectable digital filtering reduces the impact of vibrations and irregular disturbances
- Zero-tracking feature ensures the display consistently resets to zero
- Multilingual display options cater to global users
Specifications
SKU |
Repeatability |
Linearity |
Pan Size |
Operating Temperature Range |
Warranty |
NBL 12001e |
0.2 g |
0.4 g |
400 x 300mm |
15°C to 35°C |
5 Years |
NBL 12001P |
0.2 g |
0.4 g |
400 x 300mm |
15°C to 35°C |
5 Years |
NBL 16001e |
0.2 g |
0.4 g |
400 x 300mm |
15°C to 35°C |
5 Years |
NBL 22001P |
0.2 g |
0.4 g |
400 x 300mm |
15°C to 35°C |
5 Years |
NBL 16001P |
0.2 g |
0.4 g |
400 x 300mm |
15°C to 35°C |
5 Years |
NBL 22001e |
0.2 g |
0.4 g |
400 x 300mm |
15°C to 35°C |
5 Years |
Additional Information
SKU |
Dimensions |
Interface |
Material |
Power Requirement |
Display |
Model # |
NBL 12001e |
15.7" x 18.9" x 3.9" |
RS-232, USB |
Extruded Aluminum Base, Die-Cast Aluminum Case |
18VDC 830mA Adapter |
Backlit LCD with 0.8"-High Digits |
NBL 12001e |
NBL 12001P |
15.7" x 18.9" x 23.2" |
RS-232, USB |
Extruded Aluminum Base, Die-Cast Aluminum Case |
18VDC 830mA Adapter |
Backlit LCD with 0.8"-High Digits |
NBL 12001P |
NBL 16001e |
15.7" x 18.9" x 3.9" |
RS-232, USB |
Extruded Aluminum Base, Die-Cast Aluminum Case |
18VDC 830mA Adapter |
Backlit LCD with 0.8"-High Digits |
NBL 16001e |
NBL 22001P |
15.7" x 18.9" x 23.2" |
RS-232, USB |
Extruded Aluminum Base, Die-Cast Aluminum Case |
18VDC 830mA Adapter |
Backlit LCD with 0.8"-High Digits |
NBL 22001P |
NBL 16001P |
15.7" x 18.9" x 23.2" |
RS-232, USB |
Extruded Aluminum Base, Die-Cast Aluminum Case |
18VDC 830mA Adapter |
Backlit LCD with 0.8"-High Digits |
NBL 16001P |
NBL 22001e |
15.7" x 18.9" x 3.9" |
RS-232, USB |
Extruded Aluminum Base, Die-Cast Aluminum Case |
18VDC 830mA Adapter |
Backlit LCD with 0.8"-High Digits |
NBL 22001e |
