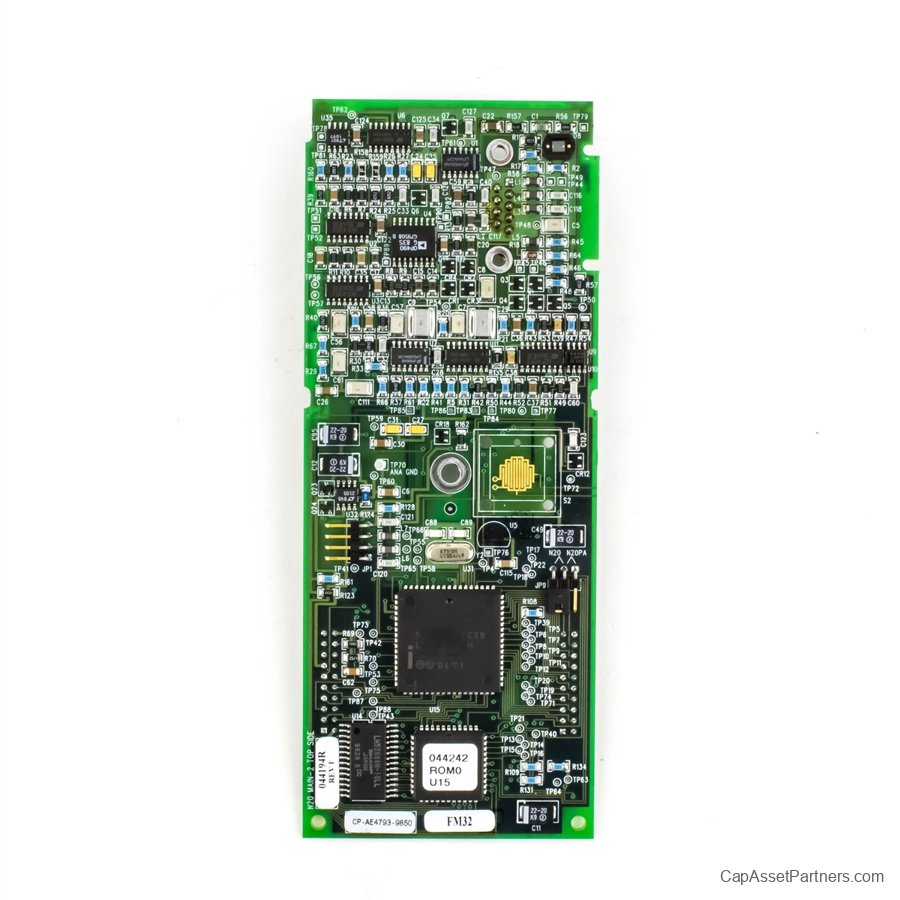

Nellcor N-20 Handheld Pulse Oximeter Main Circuit Board PCB

Introducing the Nellcor N-20 Handheld Pulse Oximeter Main Circuit Board PCB, a critical component designed to restore your pulse oximeter to optimal performance. This main PCB has undergone thorough testing and cleaning by our expert biomedical technicians, ensuring it meets manufacturer specifications for reliability and accuracy.
Key Features:

• Compatibility: Specifically designed for the Nellcor N-20 Handheld Pulse Oximeter, ensuring seamless integration and functionality.

• OEM Part Numbers: This circuit board is compatible with OEM part numbers 24468 and 044194R, making it an essential replacement for your medical equipment needs.

Upgrade your medical devices with the Nellcor N-20 Handheld Pulse Oximeter Main Circuit Board PCB, and ensure your pulse oximetry measurements are precise and dependable. Ideal for healthcare providers looking to maintain the highest standards of patient monitoring.

Nellcor N-20 Handheld Pulse Oximeter Main Circuit Board PCB Specifications:

• Dimensions:

• Length: 7.0 inches (17.8 cm)

• Width: 4.5 inches (11.4 cm)

• Thickness: 0.5 inches (1.3 cm)

• Weight:

• Approximately 0.6 pounds (0.27 kg)

• Power Supply:

• Battery Type: Rechargeable Lithium-ion

• Voltage: 3.7 volts (V)

• Capacity: 2000 mAh

• Operating Conditions:

• Temperature: 32°F to 113°F (0°C to 45°C)

• Humidity: 15% to 95% non-condensing

• Display:

• Type: LCD

• Size: 2.0 inches (5.1 cm)

• Signal Processing:

• Operating Frequency: 1 Hz to 2 kHz

• Sampling Rate: 2 samples per second

• Communication Interface:

• Serial Communication: RS-232

• USB Port for data transfer

• Compliance:

• Safety Standards: IEC 60601-1

• EMC: EN 60601-1-2

• Material:

• PCB Material: FR-4 (Flame Retardant Grade 4)

• Components:

• Microcontroller: 8-bit MCU

• Analog-to-Digital Converter: 10-bit resolution

• Functional Specifications:

• SpO2 Range: 0% to 100%

• Pulse Rate Range: 30 to 250 beats per minute (bpm)

• Environmental Requirements:

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Storage Humidity: 10% to 95% non-condensing

• User Interface:

• Button Control: 3 tactile buttons for operation and settings

This summary reflects the basic specifications and operational parameters of the Nellcor N-20 Handheld Pulse Oximeter Main Circuit Board PCB based on the standard industry information available.
