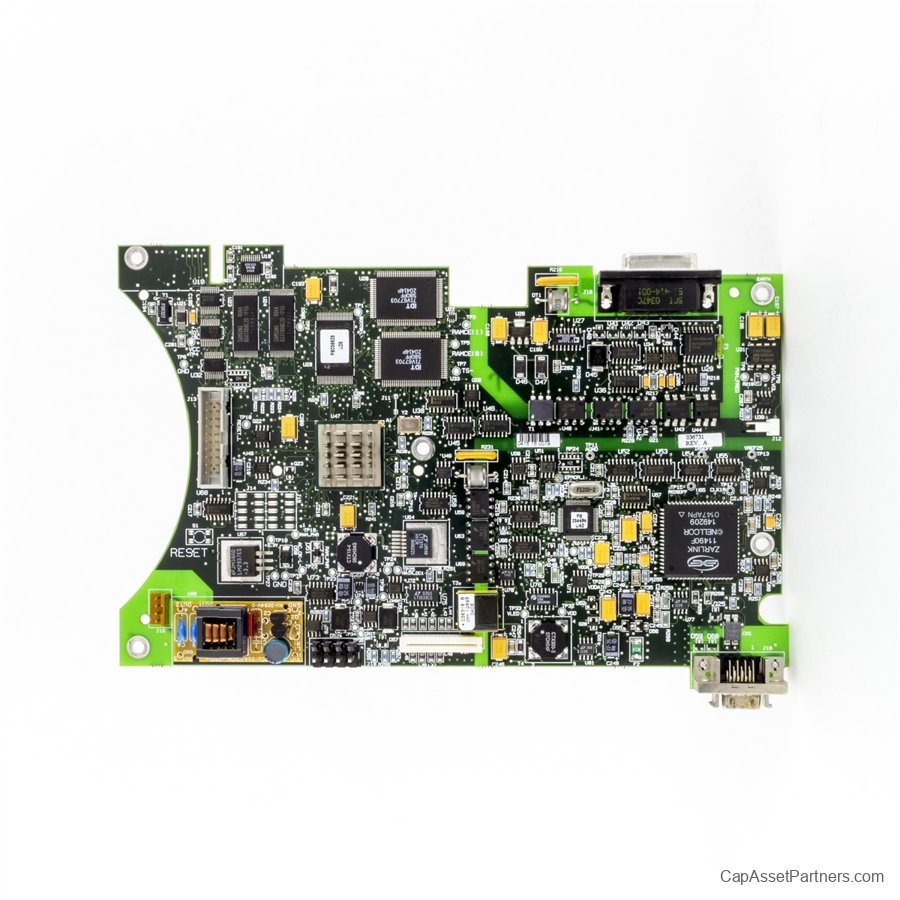

Nellcor N-595 Pulse Oximeter Monitor User Interface PCB Circuit Board

Nellcor N-595 Pulse Oximeter Monitor User Interface PCB Circuit Board
Upgrade your healthcare facility's monitoring capabilities with the Nellcor N-595 Pulse Oximeter Monitor User Interface PCB Circuit Board. This high-quality printed circuit board is specifically designed for the Nellcor N-595 Pulse Oximeter Monitor, ensuring optimal performance and reliability.
Carefully tested and cleaned by our expert biomedical technicians, this user interface PCB meets stringent manufacturer specifications, making it a trusted choice for medical professionals. With a focus on precision and quality, this circuit board is essential for maintaining the functionality of your pulse oximeter.
Key Features:

• Compatible with the Nellcor N-595 Pulse Oximeter Monitor

• Manufactured to meet OEM standards

• OEM Part Numbers: SP062315, UT062315, 036731

Ensure your medical equipment operates at peak performance with the Nellcor N-595 User Interface PCB Circuit Board, a critical component for accurate patient monitoring.

Nellcor N-595 Pulse Oximeter Monitor User Interface PCB Circuit Board Specifications

• Dimensions:

• Length: 6.0 inches (152.4 mm)

• Width: 4.3 inches (109.2 mm)

• Height: 0.8 inches (20.3 mm)

• Weight:

• Approx. 0.5 lbs (226.8 g)

• Operating Voltage:

• 5 V DC (± 10%)

• Current Consumption:

• Average: 100 mA

• Peak: 250 mA

• Input/Output Interfaces:

• Serial Communication: RS-232

• USB: Type-A connector

• Display Interface: Compatible with LCD screens

• Environmental Conditions:

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Humidity: 10% to 95% non-condensing

• Component Compatibility:

• Compatible with Nellcor Oximetry Sensors

• Firmware updates via USB

• Power Supply:

• External Power Adapter: 100-240 V AC to 5 V DC

• Regulatory Compliance:

• FDA Approved

• CE Marked

• Connector Types:

• 10-pin connector for sensor interface

• 4-pin power connector

• Signal Processing:

• SpO2 Measurement Range: 0% to 100%

• Pulse Rate Range: 30 to 250 bpm

• Other Features:

• LED indicators for power and status

• Acoustic and visual alarms for out-of-range readings

These specifications should give a clear overview of the Nellcor N-595 Pulse Oximeter Monitor User Interface PCB Circuit Board.
