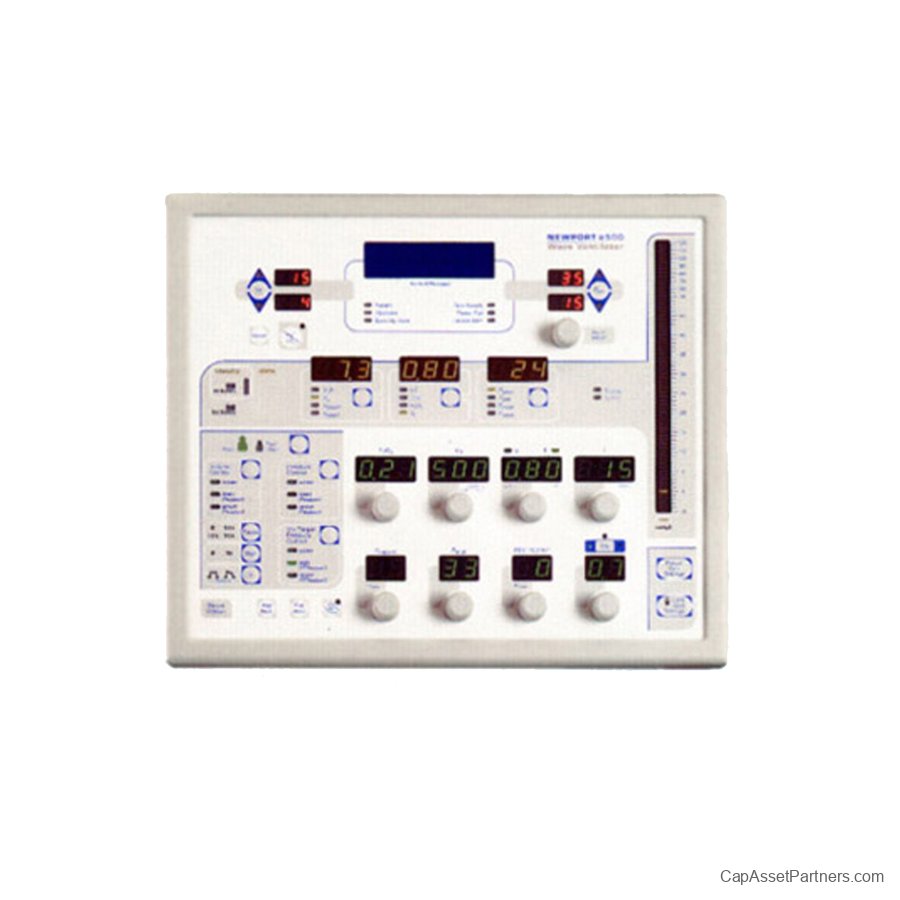

Newport Wave E-500 Ventilator

Newport Wave E-500 Ventilator: Advanced Ventilation Made Easy
The Newport Wave E-500 Ventilator redefines simplicity and efficiency in patient care. Engineered for ease of use, this ventilator provides clinicians with direct access to all essential ventilation controls and frequently utilized functions. With features like Inspiratory and Expiratory Hold, 3-Minute Oxygen, Suction Disconnect, and Preset Vent Settings, the E-500 ensures that healthcare professionals can respond swiftly to patient needs.
The ventilator's intuitive front panel layout and smart alarm systems facilitate quick setup and training, allowing for seamless integration into any clinical environment. Additionally, the self-calibrating, integrated oxygen monitor with alarms, panel lock, and internal battery enhance overall management, delivering peace of mind in high-stakes scenarios.
One of the standout features of the E-500 is the exclusive Graphics Display Monitor (GDM), which offers clear visibility of diagnostic information through a user-friendly touch-screen interface. This monitor not only presents vital 24-hour trend data but also includes an Event History Log, capturing the 600 most recent alarm violations and changes to ventilator settings. The Wave/Loop Freeze with Cursor function further empowers users by enabling detailed analysis of time, pressure, volume, or flow at any point in a breath cycle.

Key Features

Intelligent Control™ System

Experience advanced ventilation management with the FlexCycle™ Flexible Pressure Support Cycling Threshold, Automatic Slope/Rise Adjustment, Automatic Leak Compensation, and Dual Control Breath Management (VTPC/VTPS).

Suction Disconnect

Easily manage planned disconnects by pressing and holding Alarm Silence for one second, allowing continuous flow while ventilation is temporarily paused.

User Set Up Functions

Customize settings with user-friendly functions including Leak Test, Circuit Compliance Compensation, 90-second Slow Inflation, Altitude Compensation, Language Selection, and Violation Message Log.

Bias Flow

Maintain patient comfort with ventilator-set bias flow to flush exhaled CO2 and stabilize temperature, humidity, and baseline pressure within the breathing circuit.

Non-invasive Ventilation

Designed for versatility, the E-500 is compatible with mask ventilation for both continuous or short-term use, enhancing patient comfort and care outcomes.

O2 Calibration

Automatic calibration of the oxygen sensor at software-determined intervals ensures accurate and reliable oxygen delivery.

Preset Vent Settings

Easily preset mode, breath type, and ventilation settings without disrupting current operations, allowing for efficient patient management.
The Newport Wave E-500 Ventilator merges cutting-edge technology with user-focused design, making it an essential tool for healthcare professionals striving for the highest standards in patient care.

Newport Wave E-500 Ventilator Specifications:

• Type: Portable Ventilator

• Ventilation Modes:

• Volume Control (VC)

• Pressure Control (PC)

• Assist/Control (A/C)

• SIMV (Synchronized Intermittent Mandatory Ventilation)

• CPAP (Continuous Positive Airway Pressure)

• Tidal Volume Range:

• 50 - 1500 mL (2 - 50 oz)

• Respiratory Rate:

• 0 - 99 breaths/min

• Insp. Time:

• 0.1 - 6.0 seconds

• Pressure Limit:

• 5 - 60 cm H?O (2 - 24 in H?O)

• PEEP Range:

• 0 - 20 cm H?O (0 - 8 in H?O)

• FiO? Range:

• 21% - 100%

• Circuit Compliance:

• 2 mL/cm H?O (0.02 oz/in H?O)

• Power Supply:

• AC: 100-240 V, 50/60 Hz

• Battery: Rechargeable internal battery

• Operating Temperature:

• 0°C to 40°C (32°F to 104°F)

• Humidity Range:

• 10% to 95% non-condensing

• Weight:

• Approximately 4.5 kg (10 lbs)

• Dimensions:

• 30 x 25 x 15 cm (11.8 x 9.8 x 5.9 in)

• Display:

• Color LCD Screen

• Alarm Features:

• High/Low Pressure

• High/Low Tidal Volume

• Apnea

• Disconnect

• Communication Ports:

• RS-232 for data transfer and remote monitoring

• Certifications:

• CE marked, FDA cleared

Note: Specifications may vary based on configuration and optional features. Always refer to the manufacturer's documentation for the most accurate and specific information.
