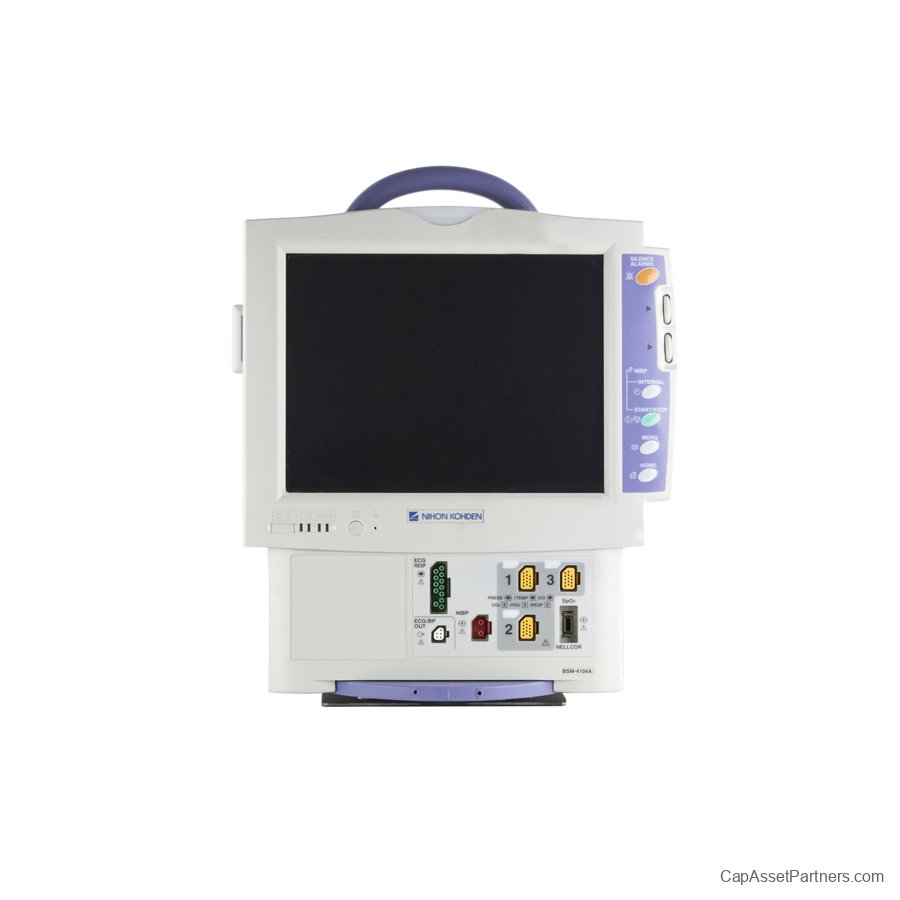

Nihon Kohden BSM-4114A Patient Monitor

Introducing the Nihon Kohden BSM-4114A Patient Monitor, a cutting-edge device designed to enhance patient care in various medical settings. This advanced monitor offers a comprehensive range of parameters, including ECG, CO2, NiBP, respiration, invasive blood pressure (IBP), temperature, cardiac output (CO), and fractional inspired oxygen (FiO2).
Engineered for precision and reliability, the BSM-4114A ensures healthcare professionals have access to critical patient data at their fingertips. Its intuitive interface and robust performance make it an essential tool for continuous monitoring and timely decision-making in dynamic environments.
Explore the benefits of the Nihon Kohden BSM-4114A Patient Monitor and discover how it can support your commitment to delivering exceptional patient care.

Nihon Kohden BSM-4114A Patient Monitor Specifications

General:

• Type: Multi-parameter patient monitor

• Display: 14-inch color LCD screen

Parameters:

• ECG (Electrocardiogram)

• Channels: 3/5 lead ECG

• HR Measurement Range: 30 to 300 bpm

• Accuracy: ±1 bpm or ±1% (whichever is greater)

• SpO2 (Pulse Oximetry)

• Measurement Range: 0% to 100%

• Accuracy:

• 70% to 100%: ±2%

• 0% to 69%: unspecified

• NIBP (Non-Invasive Blood Pressure)

• Measurement Range:

• Systolic: 40 to 270 mmHg (5 to 36 kPa)

• Diastolic: 10 to 215 mmHg (1.3 to 28.7 kPa)

• Accuracy: ±5 mmHg (0.67 kPa)

• Temperature

• Number of Channels: 2 channels

• Measurement Range: 32°C to 43°C (90°F to 109.4°F)

• Accuracy: ±0.1°C (±0.2°F)

• CO2 (Capnography)

• Measurement Range: 0 to 100 mmHg (0 to 13.3 kPa)

• Accuracy: ±2 mmHg (±0.27 kPa)

Power Supply:

• Input: AC 100-240V, 50/60 Hz

• Battery: Internal rechargeable battery (12V, 4.5Ah)

• Operation Time: Approximately 3 hours

Dimensions:

• Size: 14.9 in x 11.8 in x 7.5 in (378 mm x 300 mm x 191 mm)

• Weight: Approximately 16.5 lbs (7.5 kg)

Connectivity:

• Communication Ports: USB, Ethernet

• Output: VGA, Serial

Environmental:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Operating Humidity: 30% to 85% (non-condensing)

Safety Standards:

• Compliance: IEC 60601-1, ISO 80601-2-27

Additional Features:

• Alarm System: Adjustable limits for patient parameters

• Data Storage: Patient data storage capability

• Interface: User-friendly touchscreen display
