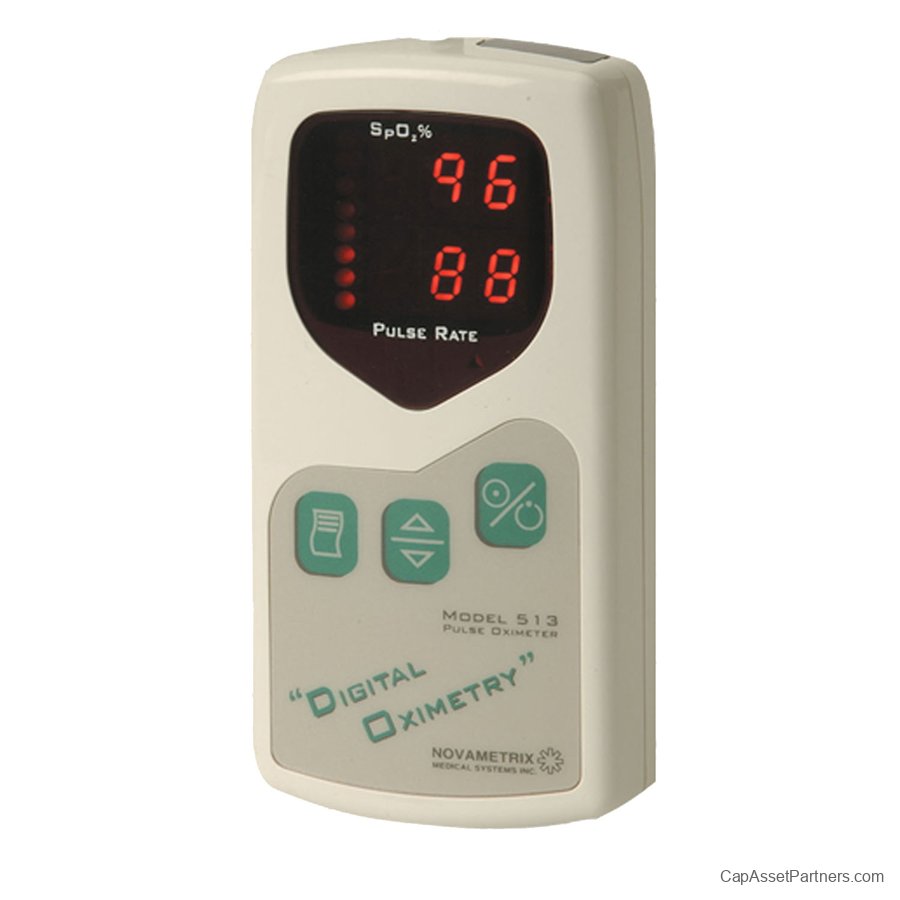

Novametrix 513 Pulse Oximeter Monitor

Do you have a Novametrix 513 Pulse Oximeter Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Respironics

Category: Pulse Oximeters (SpO2)

Respironics Novametrix 513 Pulse Oximeter Monitor
Respironics Novametrix 513 Pulse Oximeter Monitor
Respironics None - Pulse Oximeters (SpO2)
Respironics None - Pulse Oximeters (SpO2)

Novametrix 513 Pulse Oximeter Monitor: Advanced Patient Monitoring at Your Fingertips


The Novametrix 513 Pulse Oximeter Monitor is a cutting-edge handheld device designed for superior performance in patient monitoring. Utilizing advanced digital signal processing technology, this pulse oximeter captures and processes pulsatile signals with unmatched precision, at speeds of 100 times per second. This innovation ensures reliable readings even in challenging conditions such as low perfusion or patient motion, where traditional devices may struggle.

Key Features & Benefits

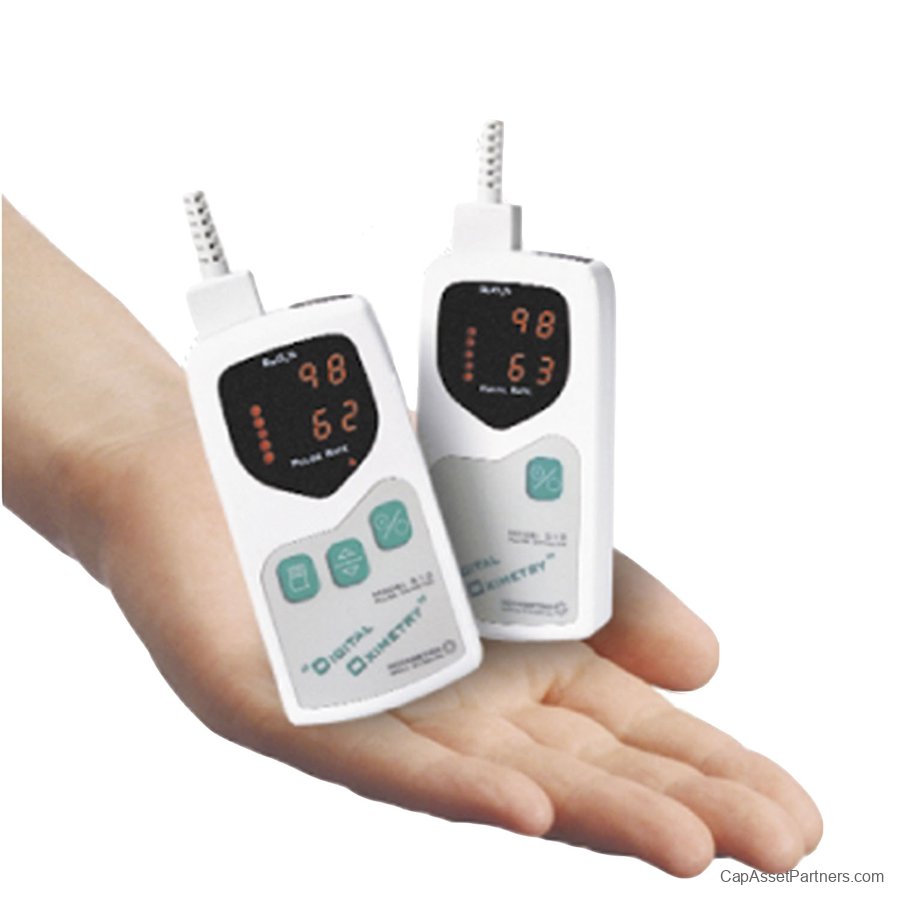

  • Compact and Lightweight Design: Weighing in at just under half a pound, the Novametrix 513 is perfectly designed for on-the-go use, making it an ideal choice for healthcare professionals who need a portable solution.

  • Versatile Power Options: The oximeter operates on two alkaline batteries or through an optional DC power supply, providing flexibility for various monitoring environments.

  • Comfort and Durability: Equipped with reusable finger and multi-site "Y" sensors, the 513 ensures durability without compromising patient comfort.

  • Enhanced Documentation Capabilities: An optional infrared link allows seamless communication with personal computers or printers, facilitating effective documentation and record-keeping.

The Novametrix 513 Pulse Oximeter Monitor is an essential tool for healthcare settings where precision and reliability are crucial. Experience the difference of advanced monitoring technology with the Novametrix 513.
Novametrix 513 Pulse Oximeter Monitor Specifications:

  • Display: LCD, 2.3 x 1.4 inches (58.4 x 35.6 mm)
  • Oxygen Saturation Measurement Range: 0% to 100% SpO2
  • Oxygen Saturation Accuracy: ±2% (70% to 100%); unspecified below 70%
  • Pulse Rate Measurement Range: 30 to 250 beats per minute (bpm)
  • Pulse Rate Accuracy: ±3 bpm or ±3% (whichever is greater)
  • Operation Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Humidity: Operating: 15% to 95% relative humidity, non-condensing; Storage: 10% to 95%
  • Power Supply: 4 AA alkaline batteries or equivalent (optional AC power supply)
  • Battery Life: Approximately 24 hours of continuous use (depending on settings)
  • Weight: 1.5 lbs (680 g)
  • Dimensions: 8.5 x 6.3 x 2.5 inches (216 x 160 x 64 mm)
  • Measurement Method: Reflectance photoplethysmography
  • Data Storage: Up to 10 hours of data in memory
  • Alarm Functions: Adjustable high/low limits for SpO2 and pulse rate
  • Connectivity: RS-232 serial port for data transfer

Note: Specifications may vary based on model variations and updates. Please consult the manufacturer for the most accurate and current information.
