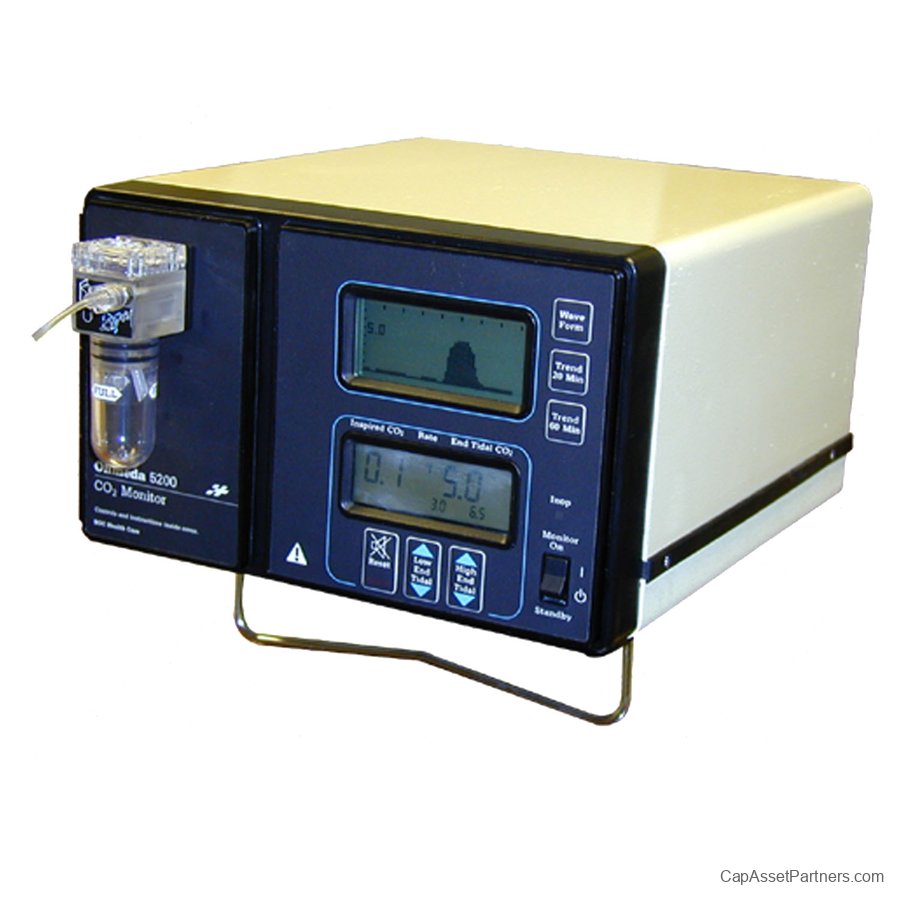

Ohmeda 5200 CO2 Monitor

Introducing the Ohmeda 5200 CO2 Monitor, a reliable tool designed for accurate measurement of inspired and end-tidal carbon dioxide levels. Utilizing advanced microprocessor technology, this monitor provides comprehensive data displays both numerically and graphically through waveforms, ensuring quick and easy interpretation of vital patient information. The Ohmeda 5200 also features robust audible and visual alarms, enhancing patient safety by alerting healthcare professionals to any critical changes in CO2 levels. Ideal for various clinical settings, this monitor is essential for effective patient monitoring and respiratory management. Upgrade your medical facility's capabilities with the precision and reliability of the Ohmeda 5200 CO2 Monitor.

Ohmeda 5200 CO2 Monitor Specifications

• CO2 Measurement Range:

• 0 - 10% (0 - 100,000 ppm)

• Resolution:

• 0.1% (1,000 ppm)

• Accuracy:

• ± 2% of the reading or ± 0.1% (1,000 ppm) whichever is greater

• Response Time:

• < 5 seconds for 90% of step change

• Warm-up Time:

• 10 minutes

• Operating Temperature:

• 0 to 50°C (32 to 122°F)

• Relative Humidity:

• 0 to 95% (non-condensing)

• Power Supply:

• 100 - 240 VAC, 50/60 Hz

• Weight:

• Approx. 1.2 kg (2.65 lbs)

• Dimensions:

• 22.9 x 22.9 x 17.8 cm (9 x 9 x 7 inches)

• Display Type:

• Digital LCD

• Communication Interface:

• RS-232 serial interface

• Calibration:

• Automatic and manual calibration options

• Sample Flow Rate:

• 50 - 100 mL/min

• Data Logging:

• Up to 24 hours of data storage (depending on model/configuration)

• Alarm Indicators:

• Visual and audible alarms for out-of-range CO2 levels

• Safety Standards:

• Complies with IEC 60601-1 and other relevant standards

• Maintenance:

• Regular calibration recommended every 3 - 12 months depending on usage conditions

• Sensor Type:

• Dual-wavelength non-dispersive infrared (NDIR)

• Operating Voltage:

• 12 VDC output from the internal power supply for battery backup

• Battery Backup:

• Internal rechargeable battery (duration varies based on usage)

These specifications provide a comprehensive overview of the Ohmeda 5200 CO2 Monitor, highlighting its key features and operational parameters.
