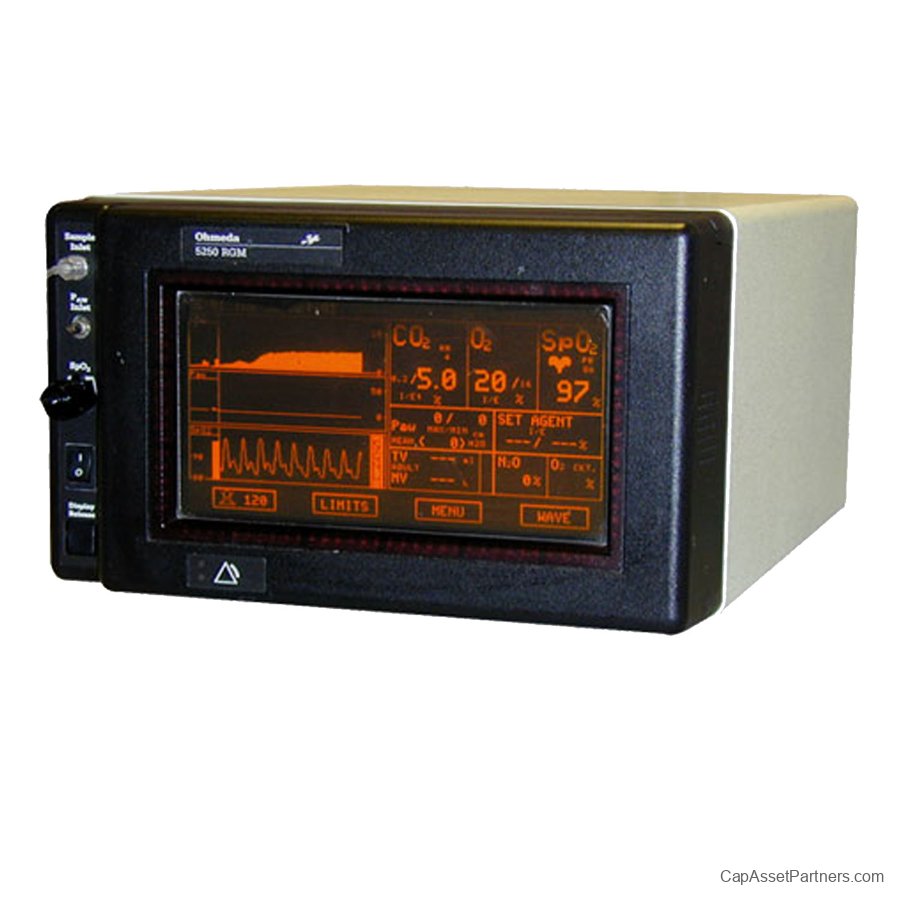

Ohmeda 5250 CO2 Monitor

Do you have a Ohmeda 5250 CO2 Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Datex-Ohmeda

Category: Capnography / ETCO2

Datex-Ohmeda Ohmeda 5250 CO2 Monitor
Introducing the Ohmeda 5250 CO2 Monitor, a cutting-edge device designed to enhance patient monitoring in clinical settings. This advanced monitor features optional SaO2 and 3/5 agent analysis, providing healthcare professionals with versatile functionality. With data presented in both numerical and graphical formats, including waveforms, users can easily assess patient status at a glance.
The Ohmeda 5250 incorporates audible and visual alarms, ensuring timely alerts for healthcare providers. Its innovative electroluminescent display, accompanied by infrared touchscreen control technology, offers seamless interaction and visibility.
Key features of the Ohmeda 5250 include:
  • A compact panel that consolidates data display, control, alarm, and message management for streamlined usability.
  • A convenient design that allows the display panel to lift off the monitor, facilitating easy access and maintenance.

Enhance your medical facility's monitoring capabilities with the reliable and efficient Ohmeda 5250 CO2 Monitor, meticulously engineered for optimal performance in patient care.
Ohmeda 5250 CO2 Monitor Specifications

Physical Weight & Dimensions:
  • Main Chassis Size: 7.5 in (H) x 12.4 in (W) x 16 in (D) (19 cm x 32 cm x 41 cm)
  • Main Chassis Weight: 22 lbs (10 kg)
  • Display Size: 7 in (H) x 11.4 in (W) x 3 in (D) (18 cm x 29 cm x 8 cm)
  • Display Weight: 3.5 lbs (1.5 kg)

Display:
  • CO2 Displayed Parameters: EtCO2, FiCO2, Waveform Insp/Exp Tmd
  • N2O Displayed Parameters: Mean N2O, Insp/Exp Tmd
  • O2 Displayed Parameters: FiO2, Expired O2, Insp/Exp Tmd
  • Circuit O2 Displayed Parameter: 0-100%
  • Agent Displayed Parameters: Inspired, Expired, Insp/Exp Tmd
  • Airway Flow Displayed Parameters: Waveform, Tidal Volume, Minute Volume, Min Volume Tmd
  • SpO2 Displayed Parameter: SpO2
  • Pulse Displayed Parameters: Plethysmogram, Rate
  • Respiration Displayed Parameters: Rate, Apnea
  • Airway Pressure: Waveform Peak, Minimum Peak, Minimum Peak/Min Tmd, Mean
