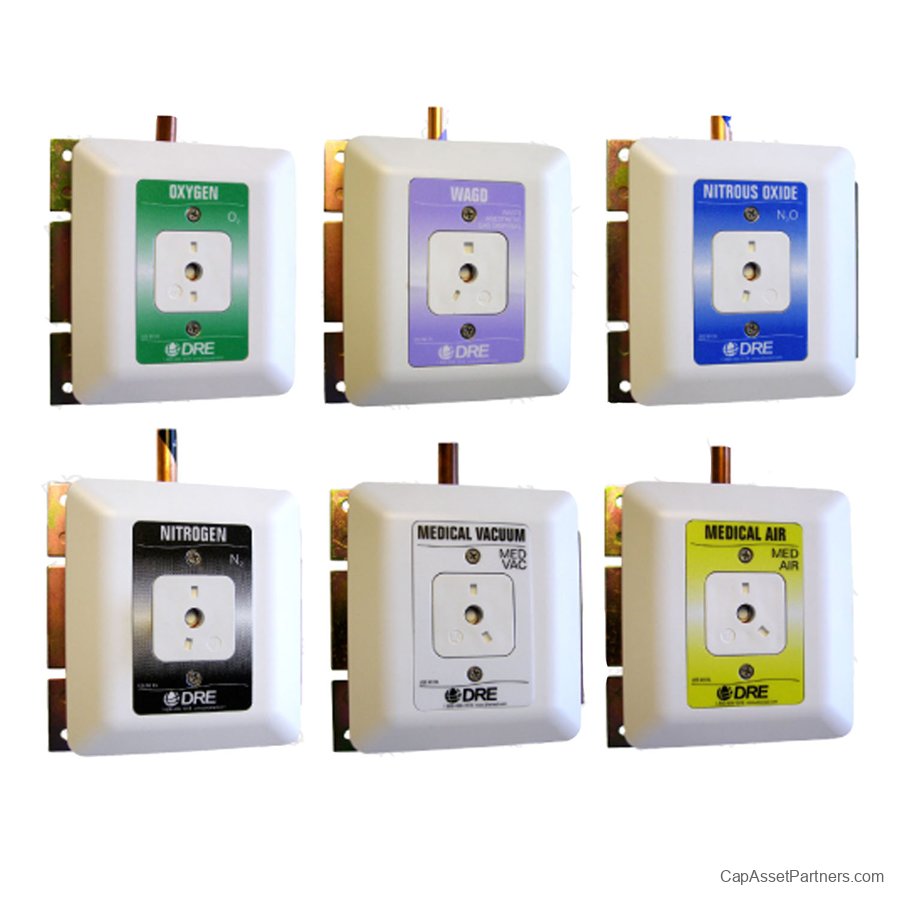

Ohmeda/Diamond/Ohio Console Outlets: Elevate your medical facility with reliable, high-quality console outlets designed for optimal performance. Our Ohmeda console outlets are ETL Listed to UL 1331 and CSA Z9170-1, ensuring compliance with rigorous safety and performance standards. Conforming to NFPA 99 and CGA standards, these outlets are built to guarantee reliability and safety in critical healthcare environments.
Features include compatibility with Ohmeda gas-specific male adaptors, providing seamless integration with existing systems. The gas-specific indexing ensures proper connections, enhancing safety during use. Designed for ease of maintenance, the removable front assembly allows for straightforward access.
Each outlet undergoes 100% testing for flow and leaks, ensuring dependable performance in every application. Nameplate color coding adheres to NFPA 99 standards for quick identification, while the 360-degree swivel inlet tube allows for flexible installation options. The metal back and nameplate add durability and longevity, while the strength of the connections provides firm support for dispensing equipment, eliminating the need for extra brackets.
Proudly made in the U.S.A., the Ohmeda/Diamond/Ohio Console Outlets are your trusted solution for demanding medical environments, combining safety, functionality, and ease of use.
Ohmeda/Diamond/Ohio Console Outlets Specifications (Old)
General:
- Modular single outlets incorporate nameplate color-coding in accordance with NFPA 99.
- Secondary check valve operates automatically to stop the free flow of pressure gas services.
- No secondary check for the vacuum or WAGD (Waste Anesthesia Gas Disposal) services.
- Double O-ring seal between nameplate and rough-in is serviceable without shutting off gas service.
- Capable of supporting 10 lbs (4.54 kg) at 2 inches (50.8 mm) from nameplate without leaking.
Additional Features:
- Scratch-resistant, durable, color-coded nameplate.
- Rough-in supply tube length: 7 inches (177.8 mm) of ½ inch (12.7 mm) O.D. copper Type K for all gas services.
- Clean for oxygen service in accordance with current CGA Pamphlet G-4.1.
- Test before use in conformance with NFPA 99, local and state codes.
