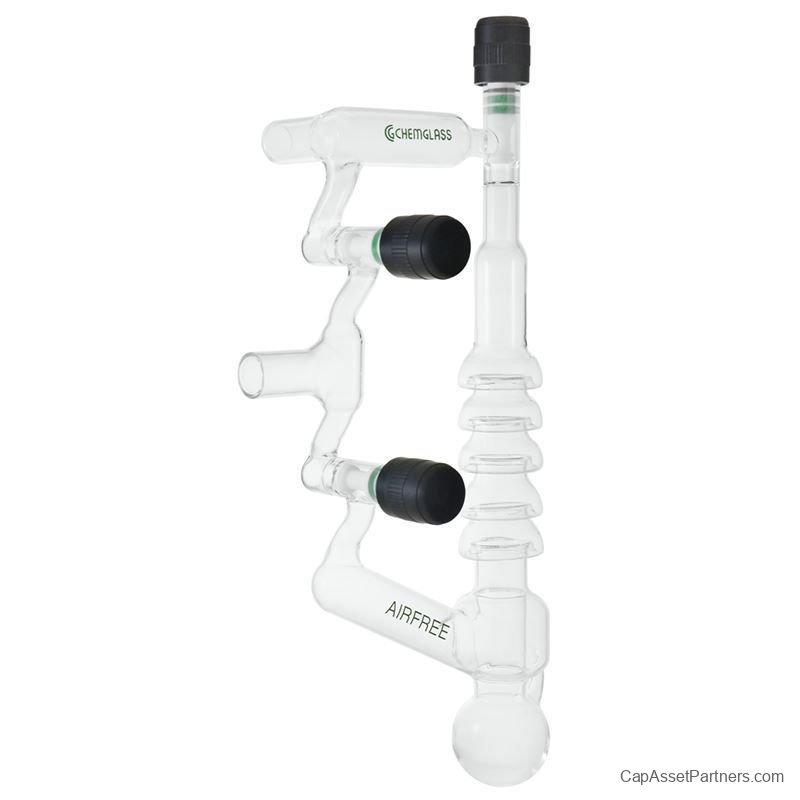

Chemglass Oil Diffusion Pumps with Bypass, Airfree, Schlenk
Features
- Compatible with manifolds AF-0450 through AF-0454 for versatile applications.
- Achieves a vacuum of 10-5 torr, with an impressive pumping rate of approximately 8L/sec.
- Designed with a round bottom boiler for compatibility with CG-10000-02 or CG-12000-02 100mL heating mantles.
- The use of a heating mantle helps to prevent costly boiler repairs due to breakage.
- Includes a built-in bypass that isolates the oil diffusion pump from the mechanical pump, allowing rough pumping without degrading hot pumping fluid through chemical oxidative processes.
- Equipped with 0-12mm Chem-Vac™ Chem-Cap® valves for reliable operation.
- Tubular connections feature a 1" outer diameter, designed for use with AF-0066 1" Cajon® connectors or 1" inner diameter heavy wall vacuum tubing.
Operation
- In bypass mode, valves A and B are closed, isolating the diffusion pump while valve C remains open.
- Upon reaching a vacuum of 1 x 10-5 Torr, close valve C and open valves A and B to integrate the diffusion pump back into the pumping circuit.
Note: Heating mantle must be ordered separately. When ordering the diffusion pump to mate with the AF-0450 manifold, ensure to use the same code for both items. For instance, the AF-0460-01 left-handed diffusion pump should be ordered with the AF-0450-01 right-handed manifold.
