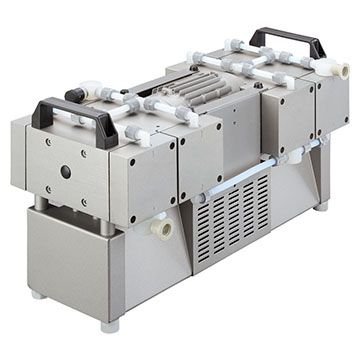

Oil-Free High Capacity Diaphragm Pumps
Designed for Precision and Reliability
Our Oil-Free High Capacity Diaphragm Pumps are engineered to handle corrosive gases and vapors, making them an ideal choice for demanding laboratory environments. With a focus on high flow and continuous duty operation, these diaphragm pumps are perfect for larger scale laboratory vacuum applications.
Key Features:
- Specially designed to manage corrosive gases and vapors
- High flow capacity for continuous duty cycles
- Efficient in high vapor flow scenarios for large-scale laboratory use
- Meets vacuum pressure requirements within the low Torr range (approximately 1.5 to 56 TORR)
- Minimal maintenance required due to durable design
- All internal components in contact with gases are made from chemically resistant fluoroplastics
- Features superior vapor tolerance with an integrated gas ballast valve for heavy vapor loads
- Wired for 115V, 60Hz with a standard line cord and plug for easy setup
Specifications:
| SKU |
H.P. |
Motor Power |
Ambient Temperature Range |
| 2062B-01 |
0.53 HP |
0.7 kW @ 50 Hz, 0.85 kW @ 60 Hz |
10°C - 40°C |
Additional Information:
| SKU |
Dimensions |
Certification |
Power Requirement |
Plug Type |
| 2062B-01 |
21 in x 11 in x 12 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
