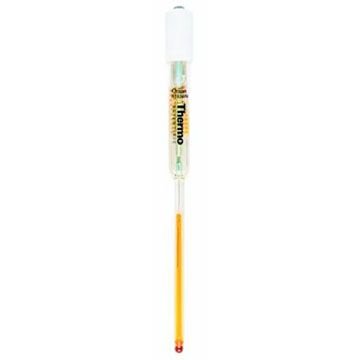

Orion™ 8103BN ROSS™ Combination Semi-micro pH Electrode
Experience unmatched precision and rapid response times with the Orion™ 8103BN ROSS™ Combination Semi-micro pH Electrode. Designed specifically for demanding environments, this electrode delivers stable pH readings to 0.01 pH in less than 30 seconds, making it the ideal choice for clinical, pharmaceutical, and food laboratories where sample size is a critical factor.
Key Specifications
| Catalog Number |
8103BN / 8103SC |
| pH Range |
0-14 |
| pH Precision |
0.01 |
| Temperature Range |
0-100 °C |
| Internal Reference |
ROSS |
| Junction Type |
Ceramic |
| Fill Solution (Cat. No.) |
3 M KCl (Catalog No. 810007) |
| Dimensions |
Length: 165 mm; Diameter: 6 mm x 95 mm Tip |
| Connector Type |
BNC, Screw Cap |
Features
- Adaptable to extreme temperature variations, allowing sample differences of 50 °C or more.
- Minimal drift of less than 0.002 pH per day minimizes the need for restandardization.
- Designed to fit standard test tubes and measures samples as small as 0.2 mL.
- Semi-micro tip enhances precision for small volume testing.
- Cap diameter of just 16mm for versatile application in constrained environments.
Included Accessories
- One 60 mL bottle of filling solution (Orion Cat. No. 810007).
Recommended Applications
The Orion™ 8103BN ROSS™ electrode is highly recommended for use in clinical, pharmaceutical, and food labs, where accurate pH measurements in small sample sizes are essential for optimal results.
