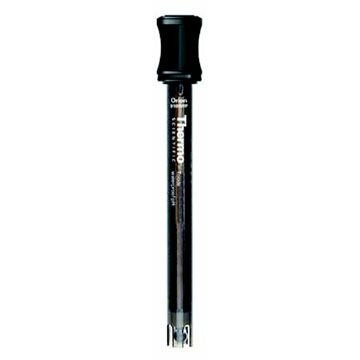

Orion™ 9109WP Triode™ 3-in-1 pH/ATC Probe
Experience unmatched precision and reliability in your pH measurement tasks with the Orion™ 9109WP Triode™ 3-in-1 Probe. Ideal for both fieldwork and laboratory settings, this versatile device features a low-maintenance, gel-filled electrode equipped with built-in Automatic Temperature Compensation (ATC), ensuring accurate readings across various conditions.
Key Features:
- • Durable epoxy body material for enhanced resilience.
- • Broad pH range of 0 to 14 for versatile applications.
- • Wide temperature range from 0°C to 90°C, suitable for diverse environments.
- • Utilizes an Ag/AgCl Junction with a wick design for reliable performance.
- • Features a sealed reference with an internal Ag/AgCl reference system.
Recommended Usage:
This probe is ideally paired with the following meters: Orion 260A/A+, 261, 261S, 265A/A+, 266, and 266S, guaranteeing seamless integration and optimal performance.
Specifications:
- • Dimensions: 110 x 12 mm
Technical Details:
| Catalog No. |
9109WP / 9109WL |
| pH Range |
0-14 |
| pH Precision |
0.02 |
| Temperature Range |
0-80 °C |
| Temperature Accuracy |
±2.0 °C |
| Internal Reference |
Ag/AgCl |
| Junction Type |
Wick |
| Dimension D (Dia) / L (Length) / T (Tip) |
L - 120 mm / D - 12 mm / Cap D - 22 mm |
| Connector Type |
EDIN Waterproof Banana Plug |
